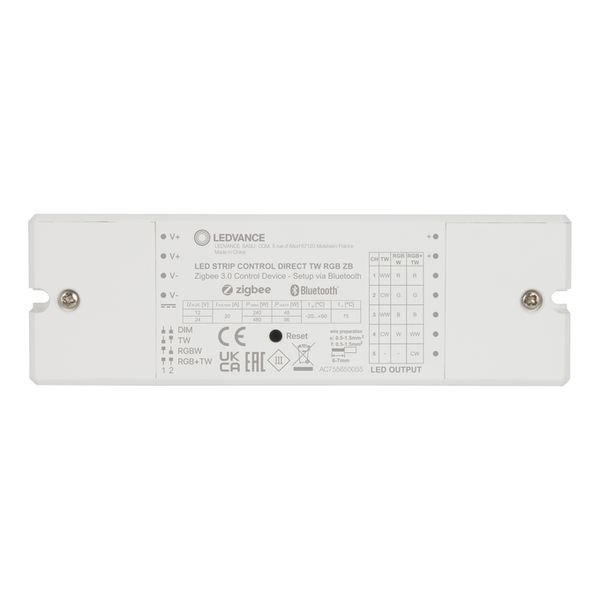

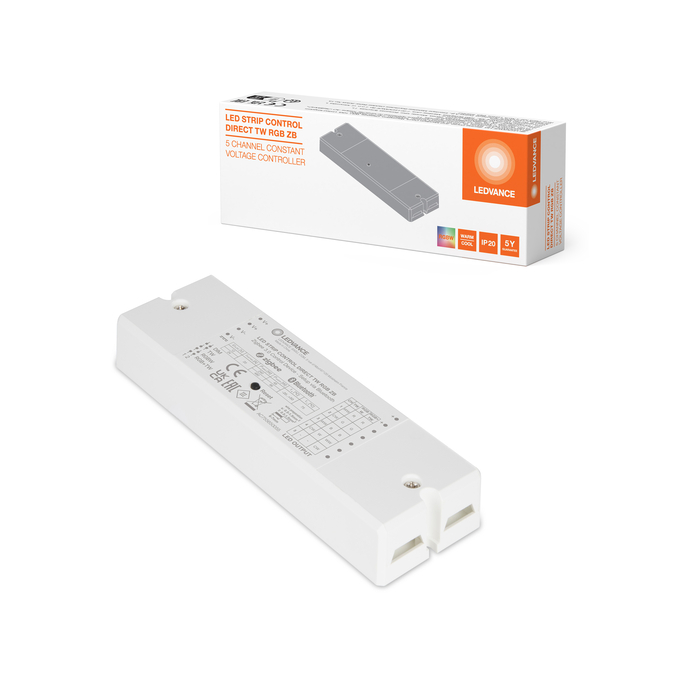

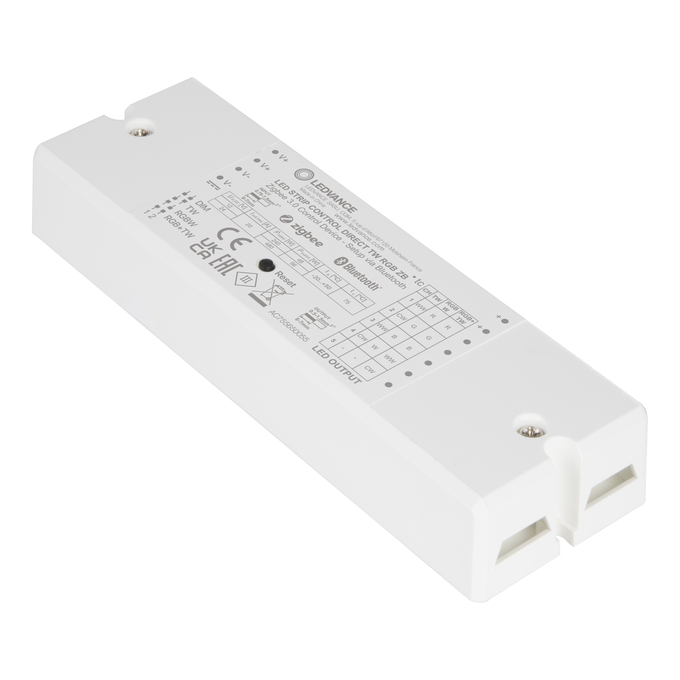

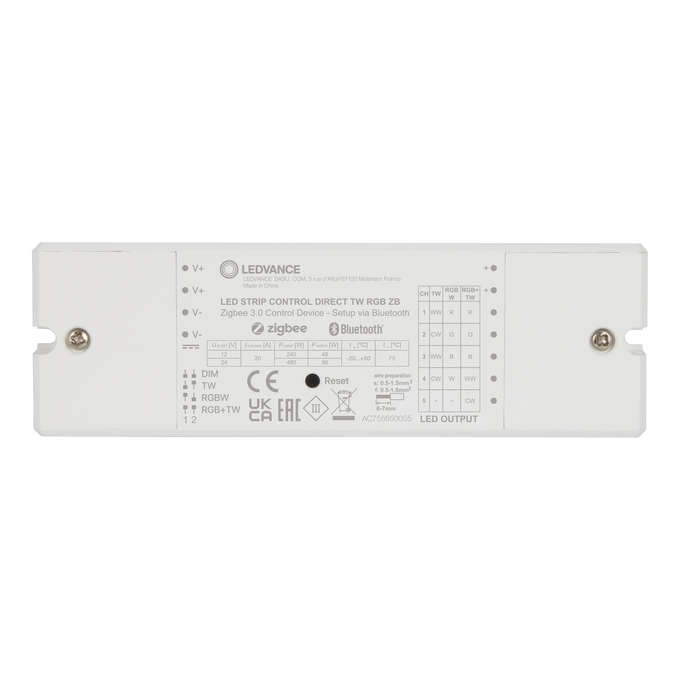

LED STRIP CONTROL DIRECT TW RGB ZB
4099854550386
Product benefits
- Slim Design for easy installation in narrow places
- Control DIM, TW or RGB LED Strips wirelessly without the need for control cables
- Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
- Mix RGB and TW independently on one single control unit
- Integrate LED strips into each project
- Compatible with LEDVANCE VIVARES ZIGBEE and DIRECT EASY light management system
Areas of application
- Cove lighting
- Architecture lighting
- General illumination
- Hotels
- Offices
- Residential interiors
Product features
- Zigbee 3.0 certified control device for LED Strips
- 5 channels for DIM, TW or RGB and TW Control
- Overtemperature protection
- High power per channel up to 96 W possible
- Input Voltage 12...24 V
- Direct commissioning via bluetooth possible
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see
Added function
VIVARES
Ambient temperature range
-20…+50 °C
Body material
Polycarbonate (PC)
Cable cross-section, input side
0.5…1.5 mm²
Color temperature
RGBW
Commissioning App
DIRECT EA
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
Zigbee Dire
GTIN
4099854550386
Height
16.00 mm
Input voltage DC
12…24 V
Length
145.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
20 A
Nominal output power
480 W 1)
Nominal voltage
12…24 V
Nominal wattage
480.00 W
Number of control outputs
5
Overload protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.9
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
79.00 g
Protection class
III
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+50 °C
Total harmonic distortion
< 20 %
Type of current
DC
Type of protection
IP20
Width
47.00 mm
Wire preparation length, input side
6…7 mm
