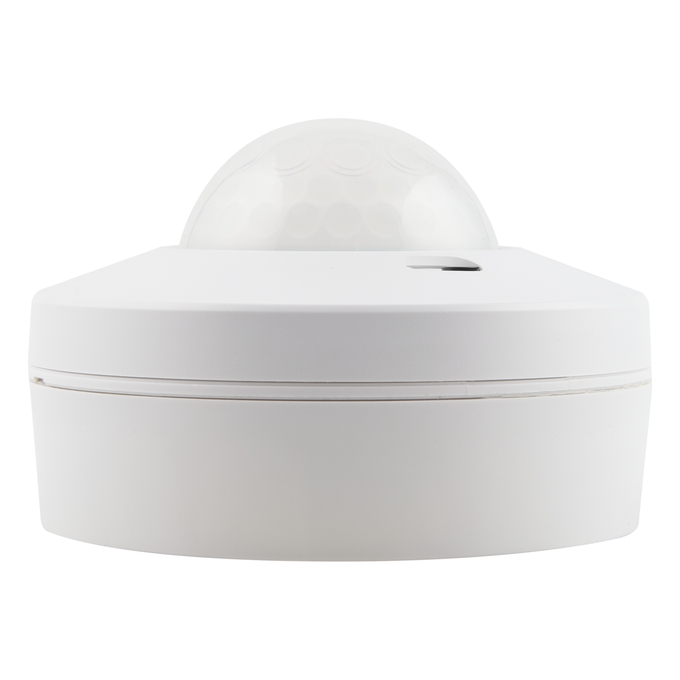

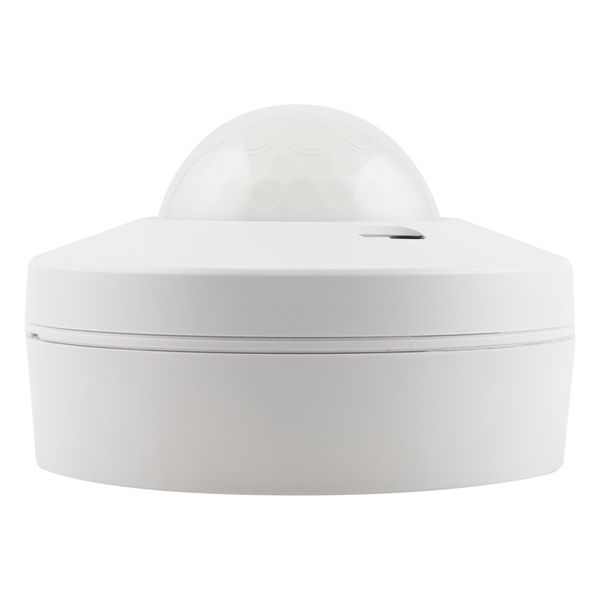

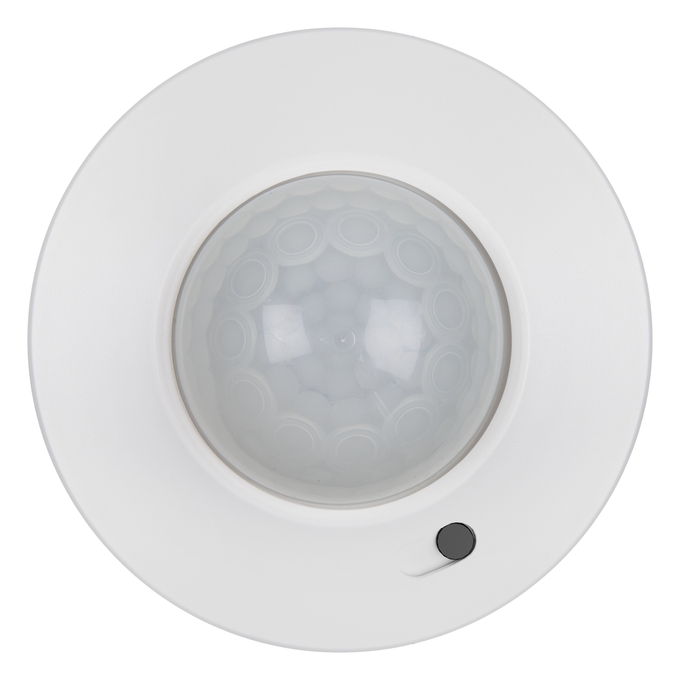

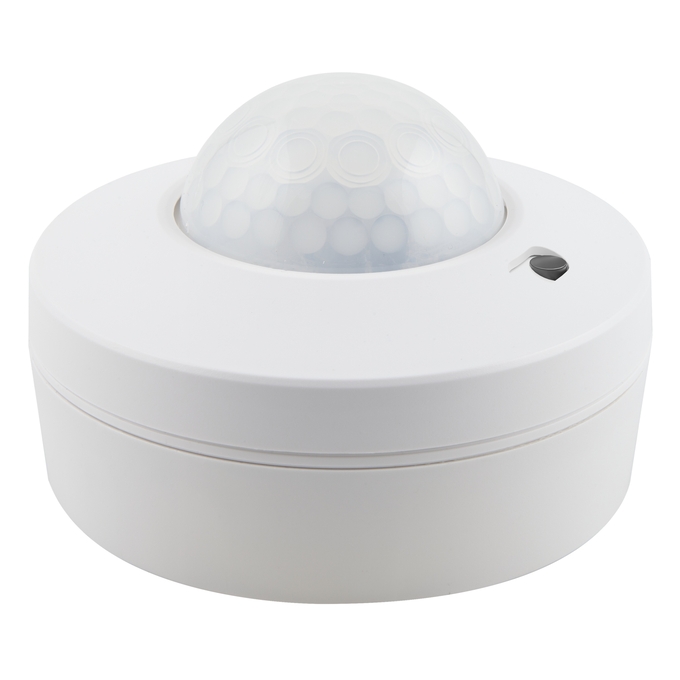

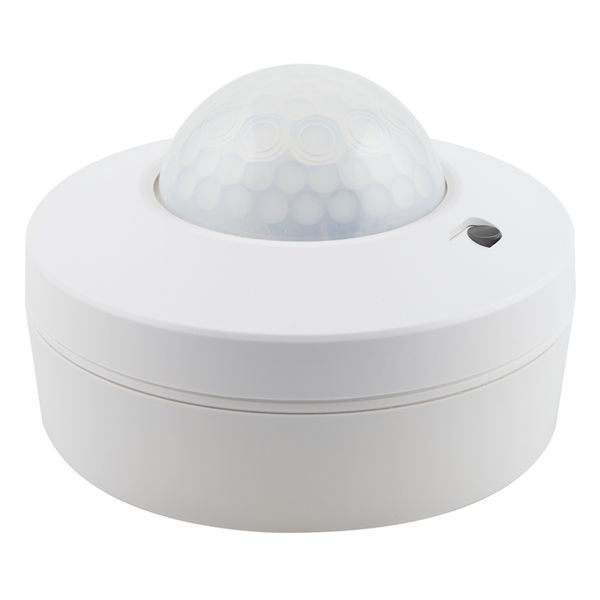

HIGHBAY SENSOR DALI-2 LIGHT/PRESENCE -21 INFRARED CEILING MOUNTING
4058075857537
Product benefits
- Integrated DALI bus power supply (no mains connection required)
- Several sensors can be connected to a DALI line
- Includes shutter accessory to optimize the sensor detection area
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Industry
- Building with high ceilings
- High-bay warehouse
- Production halls
Product features
- DALI-2 certified light and presence sensor for ceiling surface mounting
- Presence detection via passive IR element
- Detection range optimized for ceiling heights of up-to 14 m
- Function indicator LED
- Type of protection: IP54
Equipment / Accessories
- Optional accessory SENSOR CM KIT available for suspended ceiling integration
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+45 °C
Body material
Polycarbonate (PC)
Cable cross-section, input side
1,0…2,5 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
360 °
Diameter
105.00 mm
Dimmable
Yes
Dimming interface
DALI-2
GTIN
4058075857537
Height
66.50 mm
Length
105.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Maximum installation height
14 m
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
8 mA
Nominal voltage
10…22,5 V
Nominal wattage
0.10 W
Number of switching cycles
50000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from December 2025
Product weight
130.00 g
Protection class
II
Temperature range at storage
-20…+70 °C
Type of current
DC
Type of installation
Surface mounting
Type of protection
IP54
Width
105.00 mm
Wire preparation length, input side
6…8 mm
