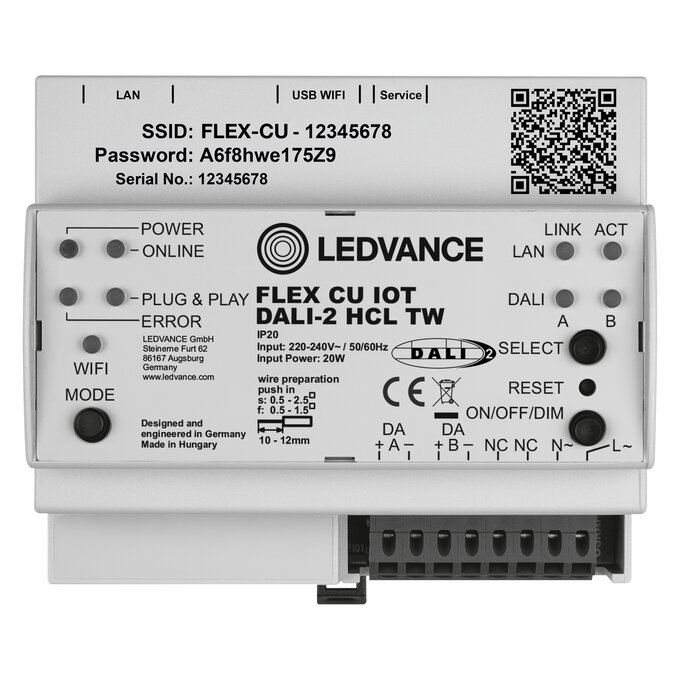

FLEX CONTROL UNIT IOT DALI-2 HCL TW
4058075841888
Product benefits
- DALI-2 certified for improved multi-vendor interoperability
- BIOLUX Human Centric Lighting for high quality daylight course in office spaces
- Remote access for changes in the installation from every location
- LAN Interconnect to connect up-to 8 Controller into one network
- Rest API for connection of a 3rd party Cloud with the FLEX CU IOT DALI-2 HCL TW Controller
- Ready for optional VIVARES Cloud Services
Areas of application
- Area lighting of up-to 1000 sqm with one control unit
- Room and floor control
- Connection of light and presence sensors for automated light control
- RGB and Tunable white applications
Product features
- DALI-2 certified control unit for up-to 128 lights and 126 sensors-pushbutton couplers
- IoT ready with built-in gateway for remote data access
- Compatible with LEDVANCE DALI IoT WEB UI and DALI IoT CONFIG software
- Building Management System integration via optional KNX interface
- Commissioning process via Ethernet/WLAN
- Small form factor: only 6 TE (DIN rail)
- Cable length of the DALI control cable: up to 300 m
Equipment / Accessories
- App for iOS and Android available for free in the app store
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+50 °C
Cable cross-section, input side
0.5…2.5 mm²
Commissioning App
Software
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
DALI bus supply
200 mA
Dimmable
No
Dimming interface
DALI-2
Groups
32
GTIN
4058075841888
Height
62.00 mm
Input current
120 mA
Length
91.00 mm
Light control tool App
App (Android/ iOS)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. connectable push button couplers / sensors
126
Max. number of connected drivers
128
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V 2)
Nominal wattage
20.00 W 1)
Number of control outputs
2
Number of switching cycles
30000
Operating frequency
50/60 Hz
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Light grey
Product recyclability
Mostly recyclable product 1)
Product weight
247.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 550
Temperature range in operation
-20…+50 °C
Type of current
DC
Type of installation
Rail mounting
Type of protection
IP20
Width
106.00 mm
Wire preparation length, input side
10…12 mm
