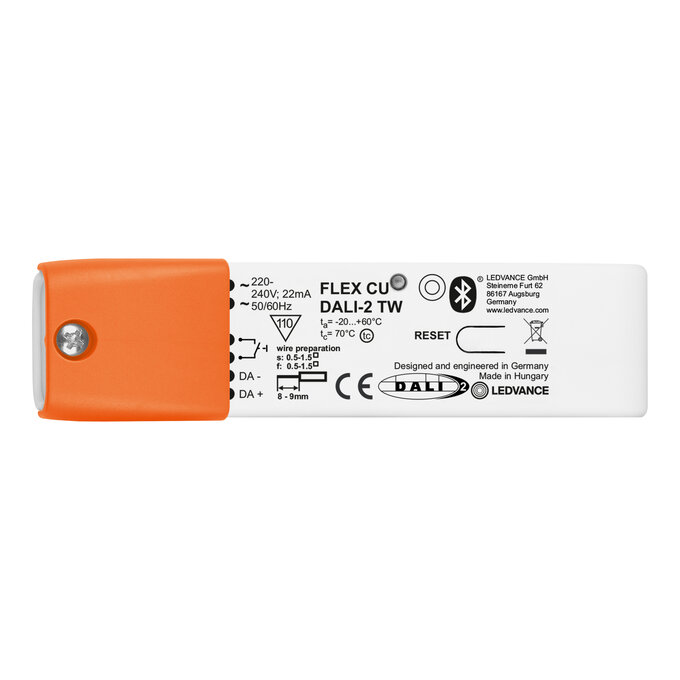

FLEX CONTROL UNIT DALI-2 TW
4058075843844
Product benefits
- Up to 4 groups separately controllable
- Easy Scene creation via App
- Simplified startup thanks to predefined operation modes
- Integrated DALI supply
- Adjustment of all settings via smartphone
- Support of swarm function
Areas of application
- Single room lighting up to 300 sqm with one control unit
- Up to 4 entrance and exit areas can be manually controlled in a synchronized manner
- Connection of light and presence sensors for automated light control
- RGB and Tunable white applications
Product features
- DALI-2 certified compact control unit for up-to 32 lights and up-to 4 sensors/pushbutton couplers
- Daytime depending change of brightness and color temperature
- Pushbutton interface to separately control brightness and color temperature
- One DALI output channel (Broadcast or Groupcast)
- Supports DALI DT8 Tunable White driver
- Smart phone connection via Bluetooth to control and configure
- Cable length of the DALI control cable: up to 300 m
- Length of the pushbutton cable: up to 50 m
Equipment / Accessories
- App for iOS and Android available for free in the app store
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+60 °C
Approval marks – approval
CE
Cable cross-section, input side
0.5…1.5 mm²
Commissioning App
App (Android/ iOS)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Dimming interface
DALI-2
Groups
4
GTIN
4058075843844
Height
21.00 mm
Input current
22 mA
Length
119.00 mm
Light control tool App
App (Android/ iOS)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. connectable push button couplers / sensors
4
Max. number of connected drivers
32
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
3.00 W
Number of control outputs
1
Number of switching cycles
30000
Operating frequency
50/60 Hz
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Light grey
Product recyclability
Mostly recyclable product 1)
Product weight
55.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range in operation
-20…+60 °C
Type of current
DC
Type of installation
Luminaire integration/Independent mounting
Type of protection
IP20
Width
30.00 mm
Wire preparation length, input side
8…9 mm
