BIOLUX HCL LS S TW ZB KIT

Product benefits

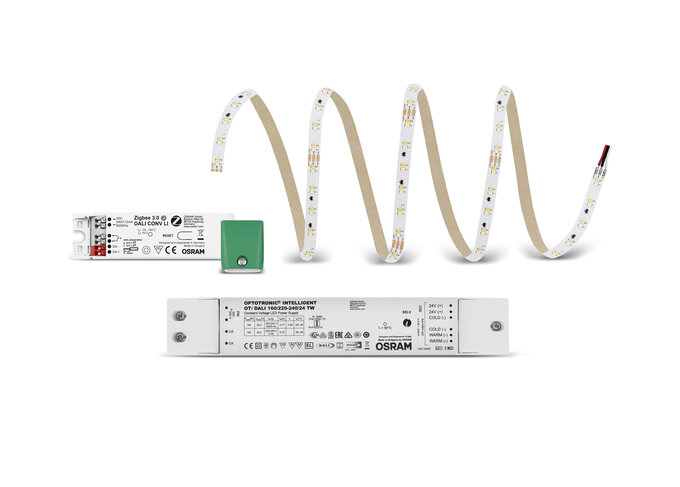

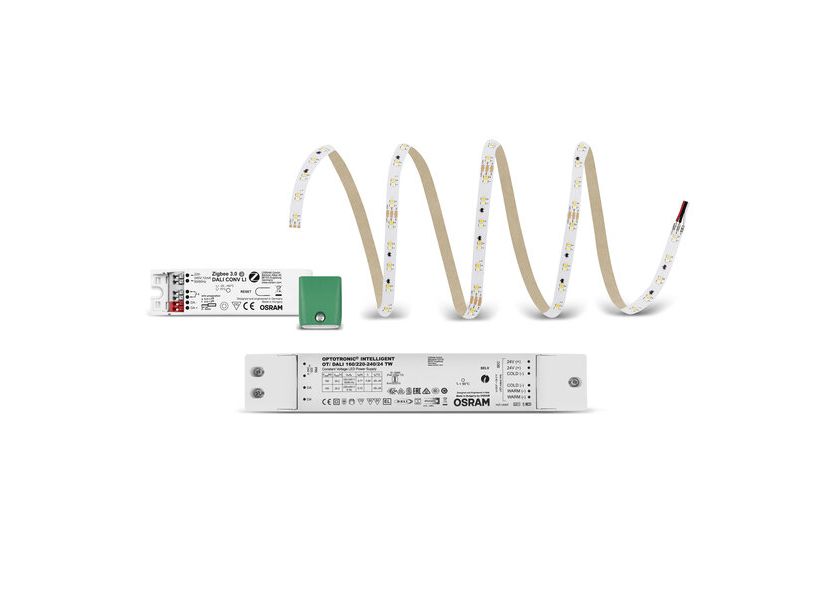

• Set with 5 m LED strip, matching driver and Zigbee adapter

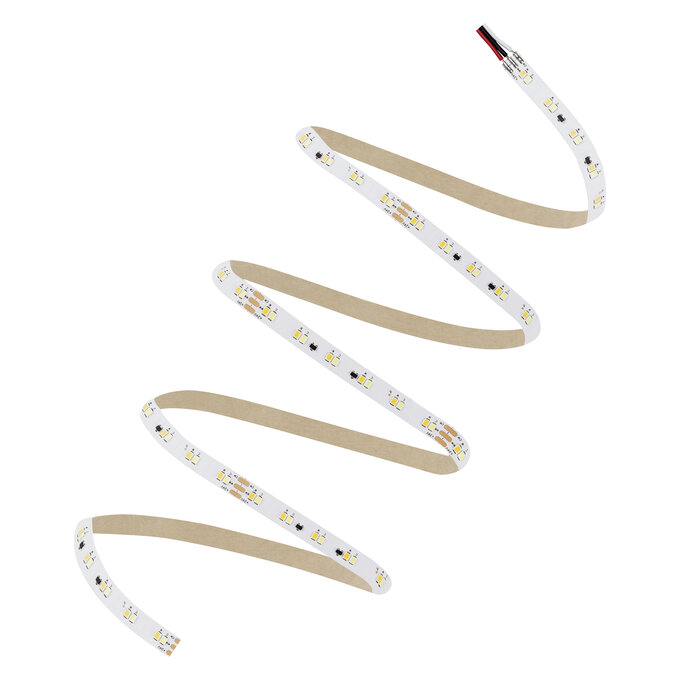

• Set products ZB KIT: 1x LED Strip Superior 2000 lm/m TW (4058075436084), OTi Dali driver 160 W/220-240/24 2CH DT6/8 (4062172177948); Zigbee Dali converter (4062172044776) with strain relief ECO CI KIT (4008321392091)
• Set products IP67 ZB KIT: 1x LED Strip Superior 2000 lm/m TW (4058075436008), OTi Dali driver 160 W/220-240/24 2CH DT6/8 (4062172177948); Zigbee Dali converter (4062172044776) with strain relief ECO CI KIT (4008321392091)
• BIOLUX HCL CONTROL UNIT for LED Strip control must be ordered separately (EAN 4058075308657)
• Extensive accessories can be found on LEDVANCE homepage in product category LED Strips
• Enables an individual lighting solution in combination with compatible Zigbee HCL lighting controls
• Biologically optimized lighting by adapting artificial light to natural daylight course
• 5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL- - VIVARES ZIGBEE control unit in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips)

Areas of application

• Lighting solution for up to 40 BIOLUX HCL luminaires - BIOLUX HCL LED strips combined mit BIOLUX HCL control unit
• KIT available for indoor or outdoor applications
• Cove lighting
• Hotel and office rooms with little daylight

Product features

• Zigbee 3.0 certified Tunable White luminaires - LED strips for simple integration into partner systems
• Ready for connection to BIOLUX HCL and VIVARES ZIGBEE control unit
• Adjustable color temperature via Tunable White: 2,700…6,500 K
• Wireless communication between control unit and luminaries via Zigbee protocol
• Very high color rendering index Ra: > 90
• Smallest cuttable unit: 100 mm

Equipment / Accessories

• LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
• LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)

Legal advice

• The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app

Safety advice

• Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.

References / Links

• For Guarantee see
• Further information for the KIT products can be found on LEDVANCE homepage in the related product categories
