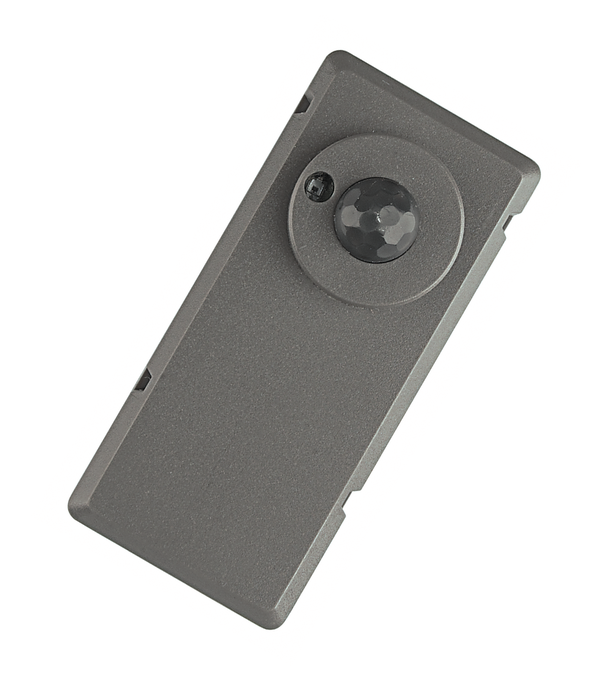

Touch DIM LS/PD LI
4008321023025
Product benefits
- A setpoint for daylight-dependent control can be stored by double clicking
- Operated via standard switches
Areas of application
- Single luminaires in office areas
Product features
- Touch DIM light and presence sensor
- Can also be operated purely as a presence sensor
- Maximum signal line length: 10 m
- Maximum power input: 0.5 W
- Delay time: 15 min
Equipment / Accessories
- Suitable for up to 4 QTi DALI ECG or 4 HTi DALI transformers or 4 OTi DALI LED drivers
Ambient temperature range
0…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Detection angle
80 ° 1)
Dimmable
No
Dimming interface
Touch DIM
GTIN
4008321023025
Height
21.00 mm
Length
63.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50 Hz
Max. cable length to lamp/LED module
10 m
Maximum installation height
4 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
0.50 W
Number of control outputs
1
Operating range, light sensor
10…350 lx 2)
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Anthracite
Product recyclability
Mostly recyclable product 1)
Product weight
24.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Luminaire integration
Type of protection
IP20
Width
29.00 mm
