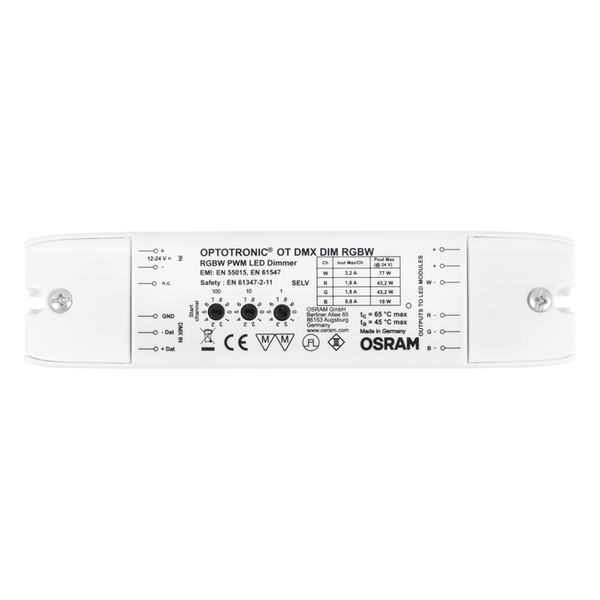

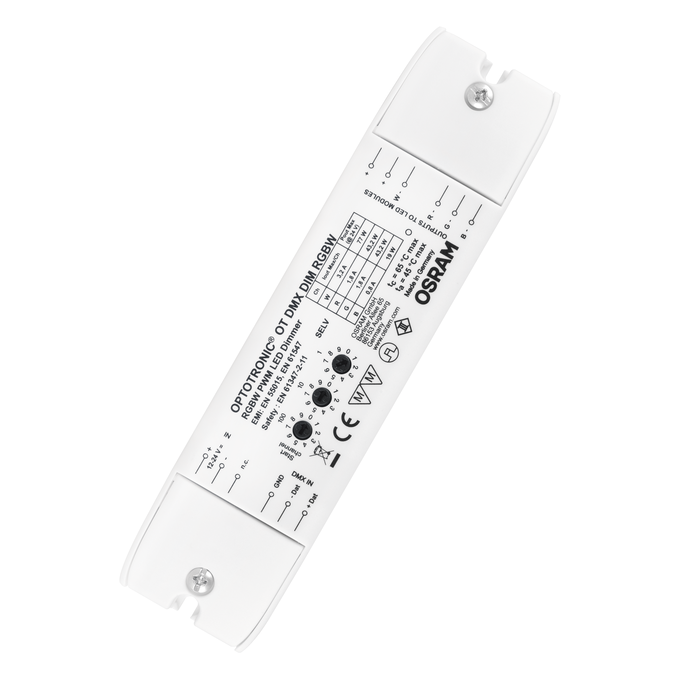

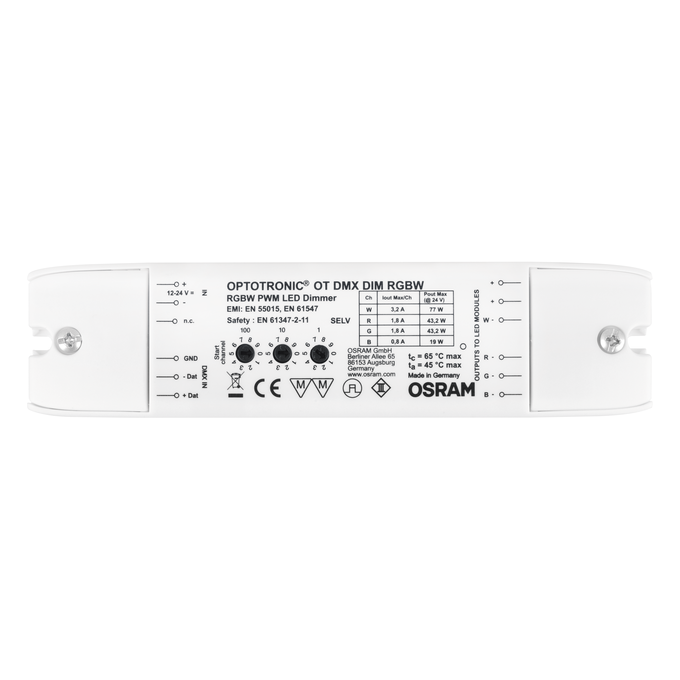

OT DMX RGBW DIM
4052899557949
Product benefits
- 3- and 4-channel DMX dimmer for RGB and RGBW LED module
- Independent housing for ceiling installation
- High PWM frequency to optimize video recording
Areas of application
- Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings
Product features
- Intelligent DMX dimmer with multi-channel topology and single control
- Automatic or manual addressing
- Device fits also for special applications where dimming below 1 % is required
Ambient temperature range
-20…+45 °C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
4 W 2)
Dimmable
Yes
Dimming interface
DMX
Dimming range
0…100 %
ECG efficiency
95 % 1)
ECG lifetime
50000 h 1)
Encapsulated
No
Galvanic isolation
Non isolated
GTIN
4052899557949
Height
20.00 mm
Input voltage DC
12/24 V
Length
172.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Max.housing temperature in case of fault
115 °C
Maximum temperature at tc test point
65 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
164,0 mm
No-load proof
Yes
Nominal output power
182 W
Nominal output voltage
12…24 V
Nominal voltage
12…24 V
Nominal wattage
180.00 W
Number of control outputs
4
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power loss in stand-by mode
< 0.5 W
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
71.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes 1)
Standards
Acc. to EN 550
Temperature range at storage
-25…85 °C
Type of connection, output side
Screw terminal
Type of installation
Luminaire integration/Ceiling integration
Type of protection
IP20
U-OUT (working voltage)
24 V
Width
42.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
