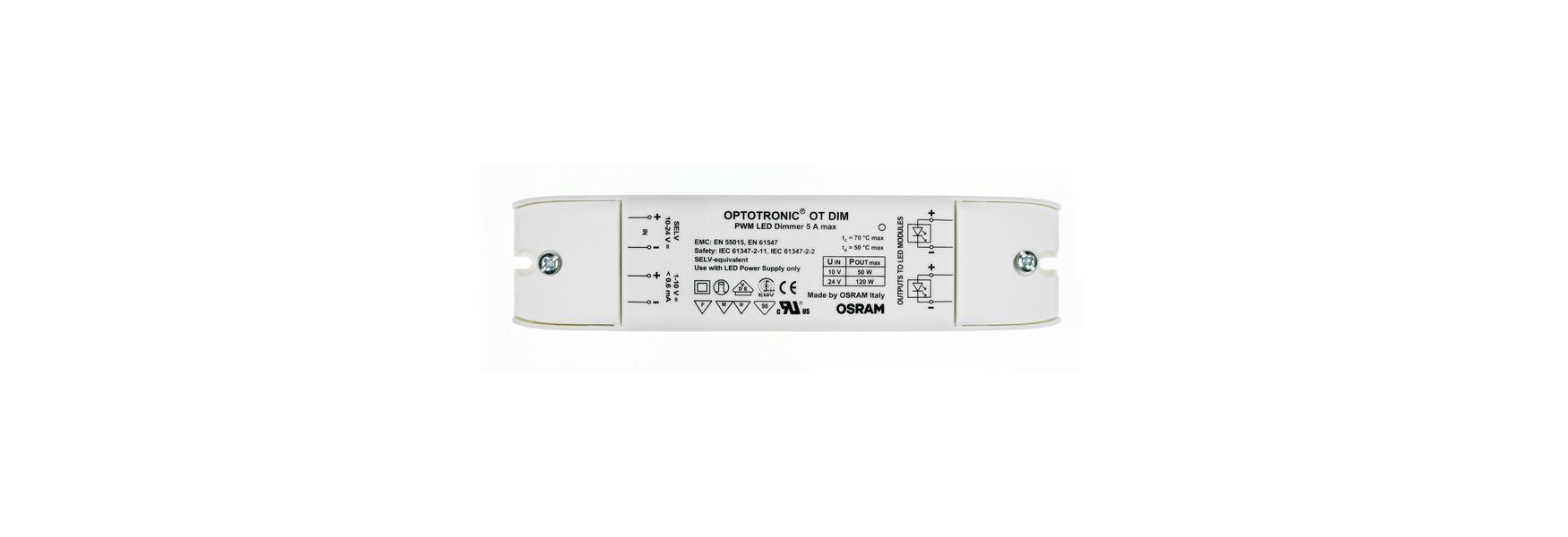

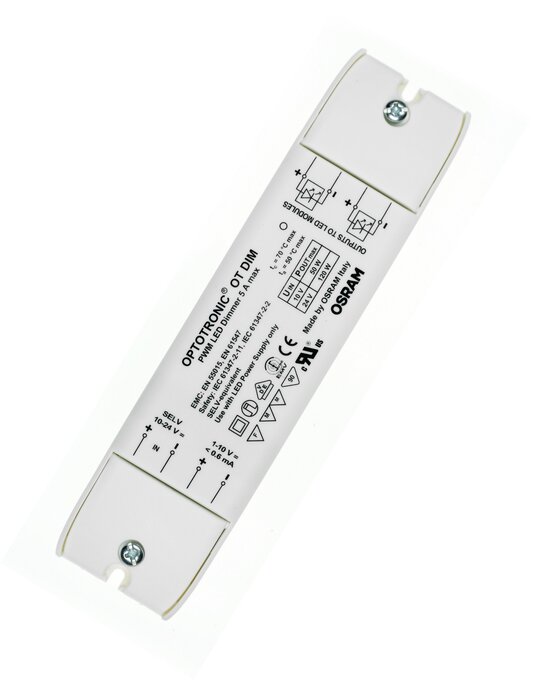

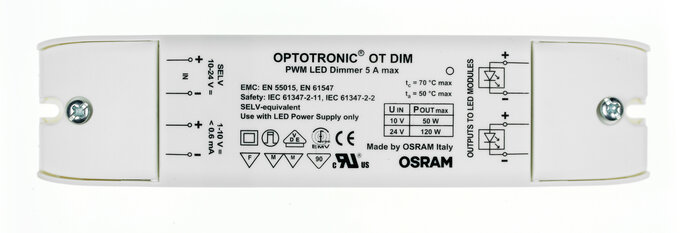

OT DIM
4050300943459
Product benefits
- 1…10 V control port basic isolated
Areas of application
- Suitable for indoor SELV installations
Product features
- Intelligent analog dimmer (1…10 V) with constant output voltage
- Dimming range: 0…100 %
- Cable clamp housing for independent mounting
- Device fits also for special applications where dimming below 1 % is required
Ambient temperature range
-20…+50 °C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
4 W 2)
Dimmable
Yes
Dimming interface
1…10 V
Dimming range
0…100 %
ECG efficiency
96 %
ECG lifetime
50000 h
Encapsulated
No
Galvanic isolation
SELV equivalent
GTIN
4050300943459
Height
20.00 mm
Input voltage AC
10,5…24 V 1)
Input voltage DC
10,5…24 V
Length
172.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0 Hz
Max.housing temperature in case of fault
100 °C
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
164,0 mm
No-load proof
Yes
Nominal current
5 A
Nominal output power
120 W
Nominal output voltage
10,5…24 V
Nominal voltage
10…24 V
Nominal wattage
144.00 W
Number of control outputs
1
Operating frequency
135 Hz
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power loss in stand-by mode
< 0.5 W
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
81.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible 1)
Standards
Acc. to DIN VDE 0875/CISPR 15/EN 550
Suitable for fixtures with prot. class
II
Temperature range at storage
-25…85 °C
Type of connection, output side
Screw terminal
Type of installation
Luminaire integration/Ceiling integration
Type of protection
IP20
Width
42.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
