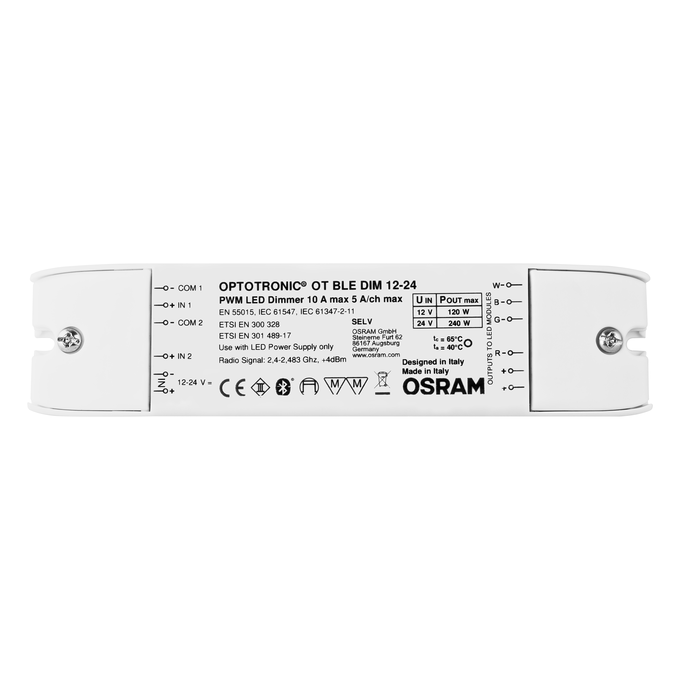

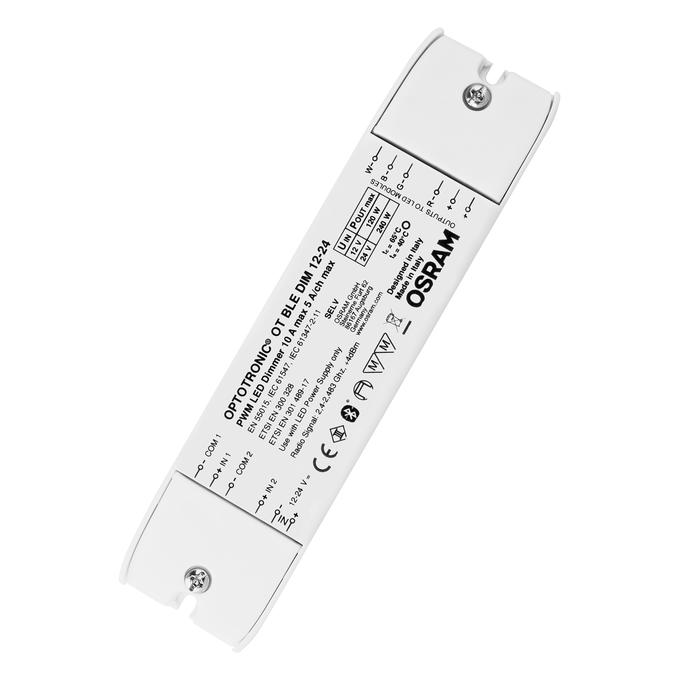

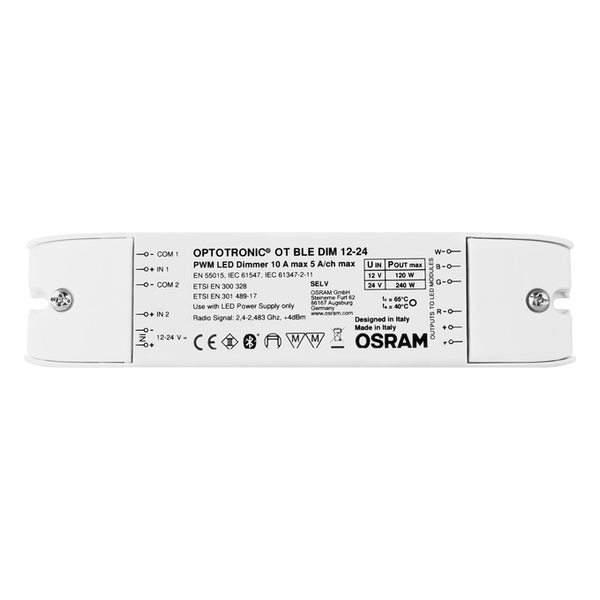

OT BLE DIM
4052899557833
Product benefits
- Control of white, Tunable White, RGB and RGBW LED modules
- Independent housing for ceiling installation
- Support of systems based on CASAMBI lighting control solutions
- Minimal installation effort
- Dry contacts for optional connection to any commercial pushbutton
Areas of application
- Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings
Product features
- Wireless 4-channel dimmer, with a output voltage of 12 V and 24 V
- Control of LED loads of up to 240 W
- Wireless module based on Bluetooth Low Energy
Ambient temperature range
-20…+45 °C
Approval marks – approval
CE
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
< 0.5 W
Dimmable
Yes
Dimming interface
Bluetooth Low Energie
Dimming range
0…100 %
ECG efficiency
98 % 1)
ECG lifetime
50000 h 1)
Encapsulated
No
Energy efficiency class
A1
Galvanic isolation
Non isolated
GTIN
4052899557833
Height
20.00 mm
Input voltage DC
12/24 V
Length
172.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50 Hz
Max.housing temperature in case of fault
115 °C
Maximum temperature at tc test point
65 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
164,0 mm
No-load proof
Yes
Nominal output power
240 W
Nominal output voltage
12…24 V
Nominal voltage
12…24 V
Nominal wattage
240.00 W
Number of control outputs
4
Operating frequency
600 Hz
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power loss in stand-by mode
< 0.5 W
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
200.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 550
Suitable for fixtures with prot. class
III
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw terminal
Type of installation
Luminaire integration/Ceiling integration
Type of protection
IP20
U-OUT (working voltage)
24 V
Width
42.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
