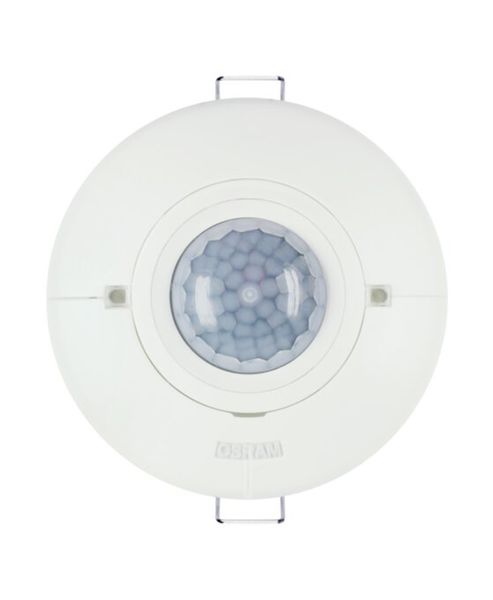

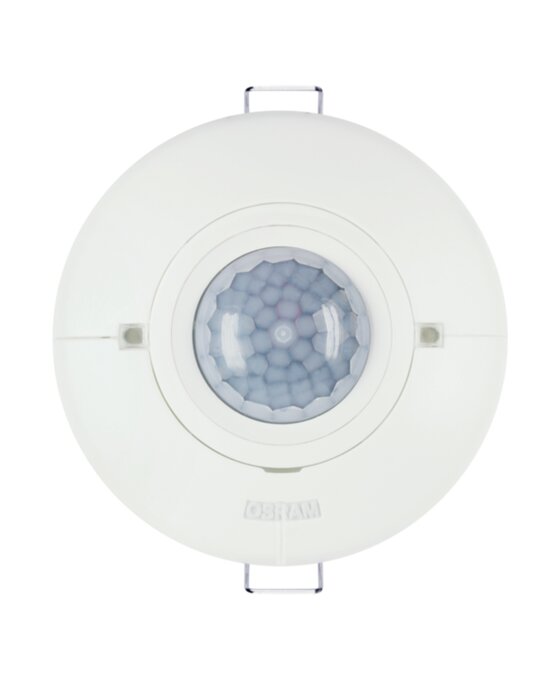

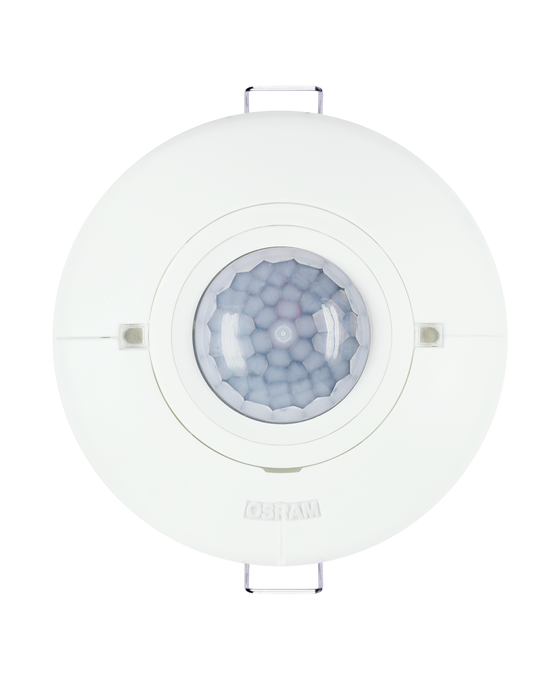

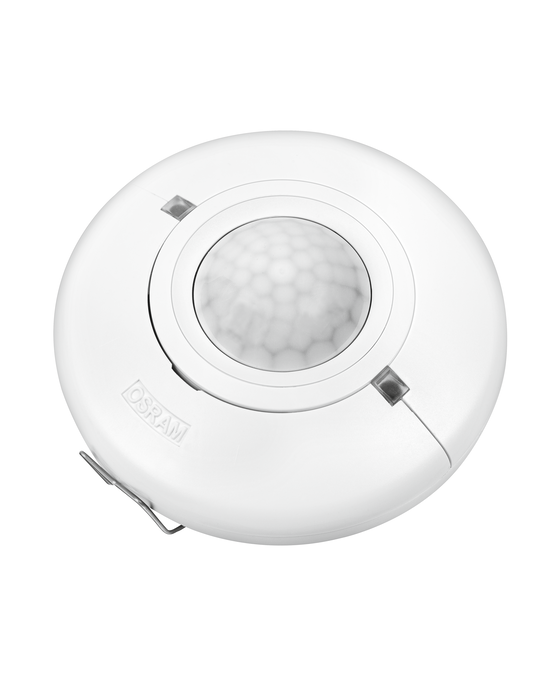

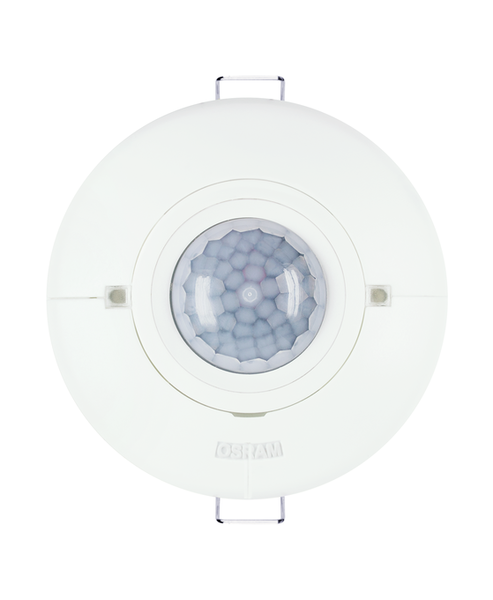

LUXeye Sense DALI BT
4052899957411
Product benefits
- Automatic start of light regulation after power-on (out of the box function)
- Basic functionality without configuration thanks to applied pre-settings
- Easy and fast customization of important parameter via screwdriver
- V(λ) corrected light sensor element
- Predefined and customizable configurations for all applications
- Password protection for user and configuration APP access
- Easy report generation of all commissioned sensors
- Easy report sharing via email
- DEMO Mode usable without device
Areas of application
- Offices
- Conference rooms
- Training rooms
- Corridors
- Surface mounting via LUXeye SENSE CM KIT
Product features
- One DALI broadcast output channel
- Daylight-dependent regulation and presence-dependent control of light
- Operation via standard pushbutton
- Outputs with electronical reversible short-circuit and overload protection
- Change of delay time with screwdriver direct at the sensor
- Change of lighting intensity with screwdriver direct at the sensor
- Halogen free polycarbonate plastic housing
- Controller with integrated light and presence sensor, DALI output channel
- Presence detection via passive IR element
- Light control with app connection via Bluetooth
- Light control via smart phone
- Adjustment of all settings via smartphone
- Individual activation and deactivation of light and presence sensor
- Function indicator with three color LED
- Various shutters included for different detection areas
Equipment / Accessories
- Suitable for up to 20 electronic control gears
- Free App for iOS and Android
Ambient temperature range
0…+55 °C
Approval marks – approval
CE
Commissioning App
App (Android/ iOS)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
110 °
Detection area
10 m 1)
Diameter
95,0 mm
Dimmable
No
Dimming interface
DALI
Groups
1
GTIN
4052899957411
Height
81.00 mm
Length
90.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max. connectable push button couplers / sensors
3
Maximum installation height
5 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
0.40 W
Number of connectable sensors
3
Number of control outputs
20
Operating range, light sensor
20…5000 lx 2)
Overheating protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
144.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Transmitter range
15 m
Type of installation
Ceiling integration
Type of protection
IP20
Width
90.00 mm
