LS/PD MULTI3 CI
4008321916648
Product benefits
- Particularly small construction
Areas of application
- Offices
- Corridors
- Classrooms
- Training rooms
- Stairways
- Sanitary areas
Product features

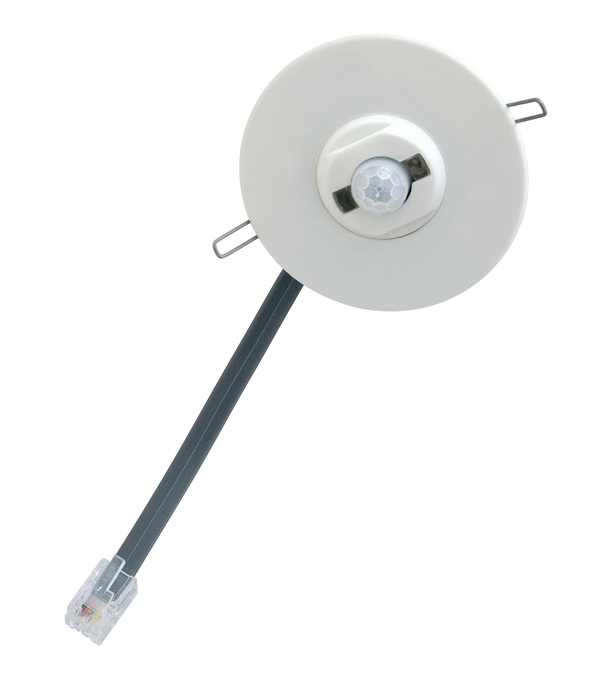

- Ceiling installation sensor with moveable sensor head
- Connection via four-pole screw terminal or modular 4c4p-connector
Equipment / Accessories
- Surface mounting in connection with SENSOR KIT
- Suitable for MULTIeco, DIM MULTIeco, DALI MULTIeco control unit
- Suitable for DALI Professional Sensor Coupler
Ambient temperature range
0…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
80 ° 2)
Detection area
6 m 1)
Diameter
50,0 mm
Dimmable
No
GTIN
4008321916648
Height
25.00 mm
Length
50.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Maximum installation height
4 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Operating range, light sensor
20…600 lx 3)
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
30.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
On-top ceiling mounting/Ceiling integration
Type of protection
IP20
Width
50.00 mm
