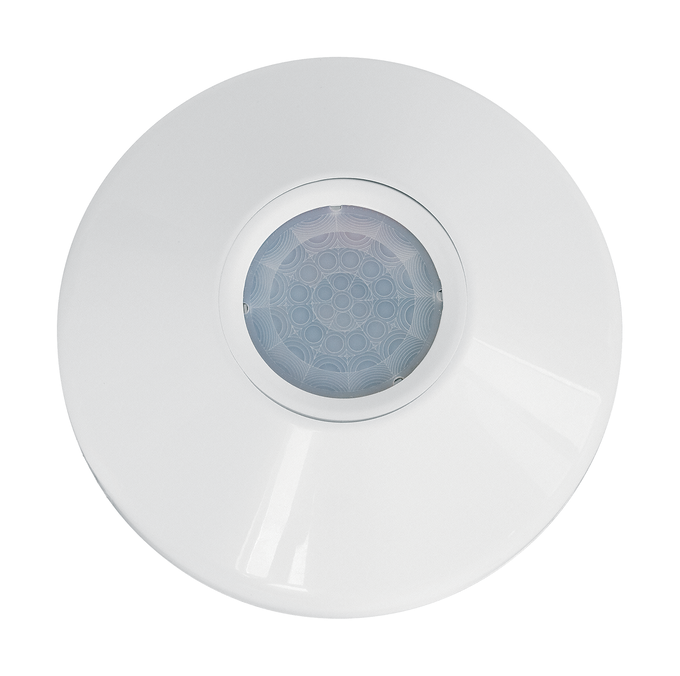

HIGH BAY SENSOR
4008321410078
Product benefits
- Energy savings up to 35 % (compared to manual switching)
Areas of application
- Great installation height
- Industry
- Production halls
Product features
- Motion sensor with switching contact
- 3 to 10 m: detection of motion by people
- 3 to 13 m: detection of vehicle movement (e.g. fork lift truck)
- Adjustable switch-off delay: 30 s to 20 min
- Maximum power consumption in stand-by mode: 0.25 W
Equipment / Accessories
- Suitable for up to 15 electronic control gears
- Installation by means of Mounting Adapter possible
Ambient temperature range
-10…+70 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
100 ° 2)
Detection area
18 m 1)
Diameter
116,0 mm
Dimmable
No
GTIN
4008321410078
Height
40.00 mm
Length
115.60 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Load contact
5 A
Mains frequency
50/60 Hz
Maximum installation height
13 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
120…277 V
Nominal wattage
0.60 W
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
135.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
On-top ceiling mounting
Type of protection
IP20
Width
115.60 mm
