HF LS LI
4052899921481
Product benefits
- Individual activation/deactivation of light and presence sensor via remote control
- V(λ) corrected light sensor element
Areas of application
- Installation in IP protected luminaires possible
- Corridor lighting control in logistic centers and factory halls
- Areas with high ceilings
Product features

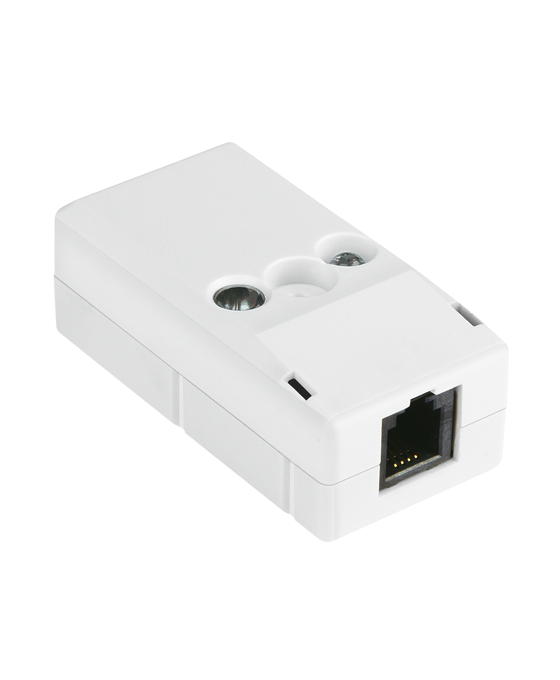

- Light and presence sensor for luminaire installation or attachment
- Presence detection via active radar sensor element
- Function indicator with two-color LED
- Motion detection range adjustable
- Mounting height: 2…13 m
- Light sensor operating range: 20…800 lx (measured at sensor)
- Integrated infrared remote control receiver
- Connection via polarity reversal protected 4p4c socket (RJ10)
Equipment / Accessories
- Suitable for DALIeco Control unit
- Suitable for DALI Sensor Coupler HF LS LI
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Detection angle
35…80 °
Dimmable
No
GTIN
4052899921481
Height
21.00 mm
Length
56.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Maximum installation height
8 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
6 V
Nominal wattage
0.20 W
Operating range, light sensor
20…800 lx 1)
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
22.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Luminaire attachment/Luminaire integration
Type of protection
IP20
Width
28.00 mm
