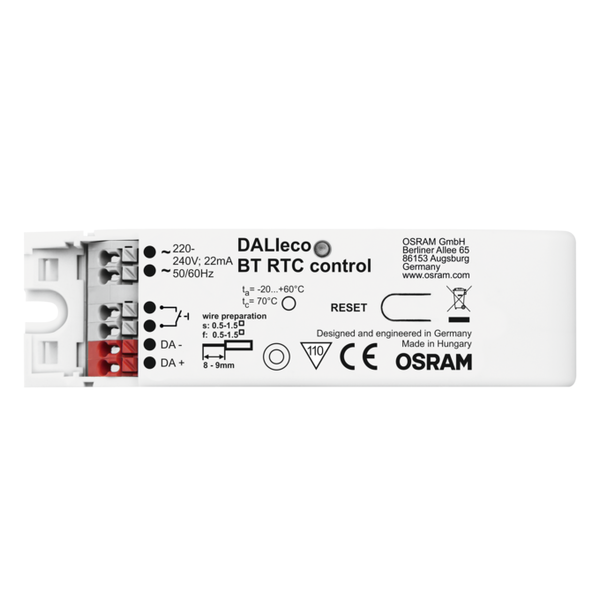

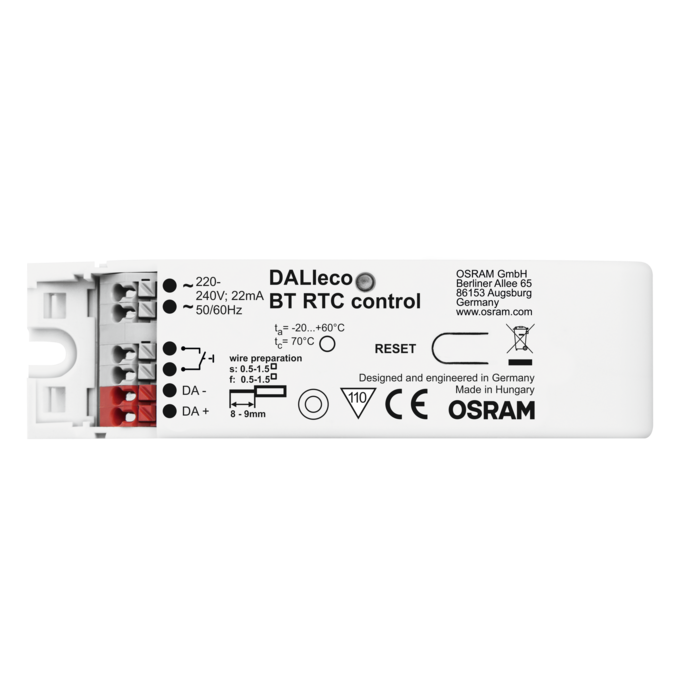

DALIECO BT RTC CONTROL

Product benefits

• Daytime depending change of brightness and color temperature (HCL)
• Suitable for Human Centric Lighting Applications (HCL)
• Control the light via Smartphone
• Adjustment of all settings via smartphone
• Up to 4 timers with ON-/OFF-Time and weekday configurable
• Simplified startup thanks to predefined operation modes
• Intuitive manual dimming, switching and changing of colour temperature
• Up to 4 groups separatly controllable
• Adjustable Offset for different groups
• Easy Scene creation via App
• Scene-recall via OSRAM DALI PRO PB coupler possible
• Firmware update over-the-air via Bluetooth possible
• Integrated DALI supply
• Control of standard white or Tunable White light acc. DALI device type 8 (DT8)*
• Selected DALI parameters changeable via APP

Areas of application

• Floor-standing luminaires
• Offices
• Conference rooms
• Training rooms
• Classrooms
• Corridors
• Shop lighting

Product features

• Compact light control with DALI interface
• Smart phone connection via Bluetooth to control and configure
• Integrated clock for time based control of brightness and color temperature (HCL)
• Adaptable HCL curve with up to 24 points
• One DALI output channel (Broadcast or Groupcast)
• Up to 32 DALI luminaires connectable
• Supports up to 4 OSRAM DALI sensors and pushbutton couplers
• Daylight-dependent regulation and presence-dependent control of light
• Pushbutton interface to separately control brightness and color temperature
• Supports DALI DT8 Tunable White driver
• Outputs with electronical reversible overtemperature, short-circuit, overload protection
• Length of the DALI control cable: up to 300 m
• Length of the pushbutton cable: up to 50 m
• Suitable for luminaire integration

Equipment / Accessories

• Free App for iOS and Android available at the app store
• Ceiling or independent installation via ECO CI KIT possible
