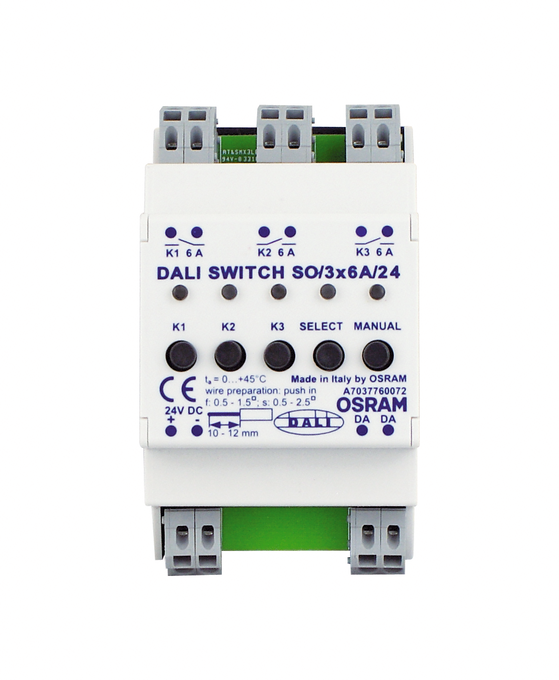

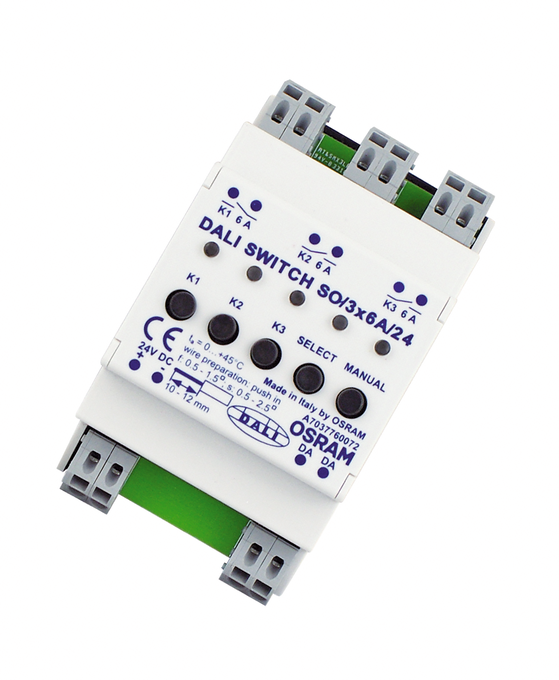

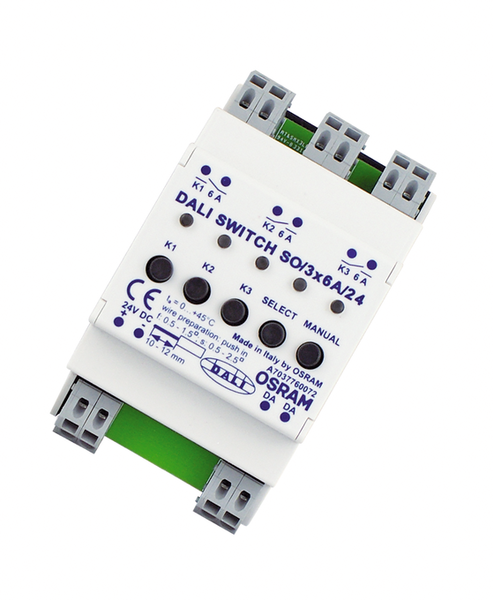

DALI SWITCH SO
4008321533364
Product benefits
- Can be addressed via DALI
Areas of application
- Industry
- Suitable for use in combination with all POWERTRONIC® control gears
- Renovation of historic buildings
Product features
- DALI-controlled switch output for non-dimmable lamps, QT, OT, PT, HT control gears
- 3 independent relay contacts
- Load capacity of switching contact: 6 A ohmic load
- Supply voltage: 24 V DC
- Floating contacts
Equipment / Accessories
- Can be used with all DALI control units
- 24 V supply required (e. g. PS 30)
Ambient temperature range
0…+45 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Dimmable
No
Dimming interface
DALI
GTIN
4008321533364
Height
62.00 mm
Length
96.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Load contact
6 A
Mains frequency
0 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
24 V
Nominal wattage
5.00 W
Number of control outputs
3
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
155.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
DIN rail mounting
Type of protection
IP20
Width
54.00 mm
