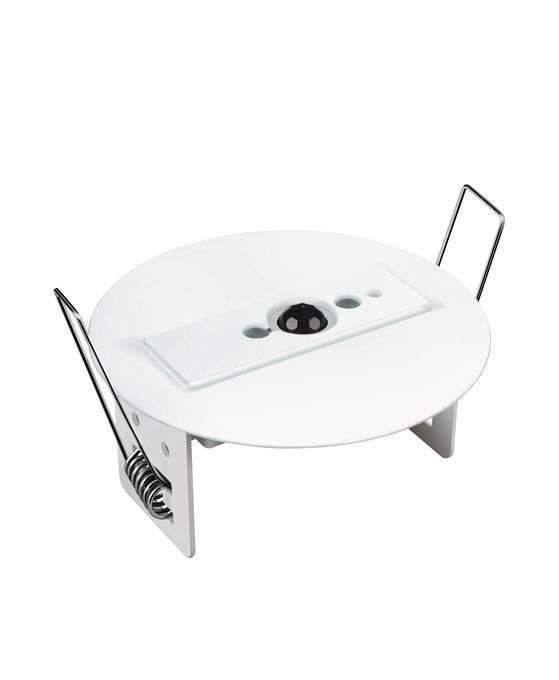

DALI SENSOR LS/PD CI G2
4062172072083
Product benefits
- Flat design, very small structural height
- Simple and fast installation via wire springs
- DALI-2 certified
- DALI Bus powered (No mains connection necessary)
- Multiple sensors connectable to the same DALI line
- Presence detection angle adjustable between 40…90° via integrated shutters
- Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
- Suitable for indoor applications
- Individual offices
- Open-plan offices
- Classrooms
- Conference rooms
- Corridors
Product features
- Light and presence sensor for ceiling integration
- Presence detection via passive IR element
- Light sensor operating range: 20…800 lx (measured at sensor)
- Mounting height: 2…5 m
- Function indicator with two-color LED
- Ceiling installation adapter
Equipment / Accessories
- Suitable for many OSRAM DALI control systems
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Detection angle
40…90 °
Detection area
6 m
Diameter
80,0 mm
Dimmable
No
Dimming interface
DALI-2
GTIN
4062172072083
Height
55.00 mm
Length
80.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0 Hz
Maximum installation height
5 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
16 V
Nominal wattage
0.10 W
Operating range, light sensor
20…800 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
95.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Ceiling integration
Type of protection
IP20
Width
80.00 mm
