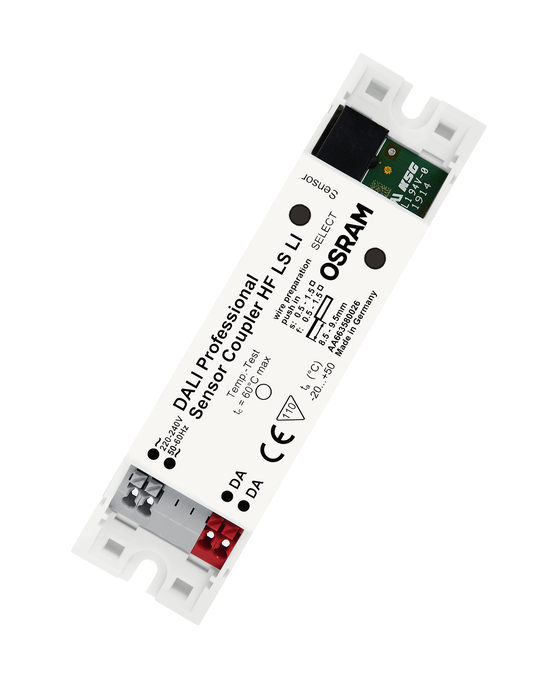

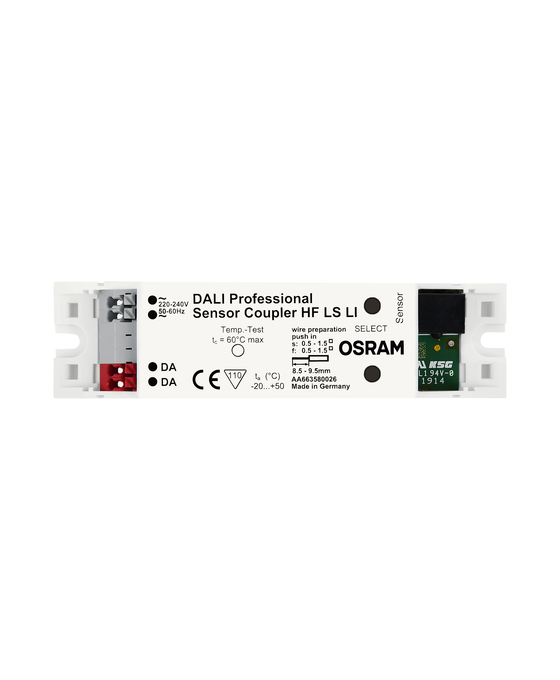

DALI Sensor Coupler HF LS LI
4052899141728
Product benefits
- Sensor integration in DALI
- Small housing design
Areas of application
- Connection of light and presence sensors in DALI systems
- Ceiling or independent installation via ECO CI KIT possible
- Luminaire and ceiling integration
- Installation in industry and office luminaires
- Installation in IP protected luminaires possible
- Areas with high ceilings
Product features
- Mounting height: 2…13 m
- Combined daylight and motion detection
- Suitable for daylight-dependent control
- Presence detection via active radar sensor element
- Light sensor operating range: 20…800 lx (measured at sensor)
Equipment / Accessories
- Separate installation possible with ECO CI KIT
- Suitable for many OSRAM DALI control systems
Ambient temperature range
0…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Dimmable
No
Dimming interface
DALI
GTIN
4052899141728
Height
21.00 mm
Length
118.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
110,0 mm
Nominal voltage
230 V
Nominal wattage
0.45 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Luminaire integration/Ceiling integration
Type of protection
IP20
Width
30.00 mm
