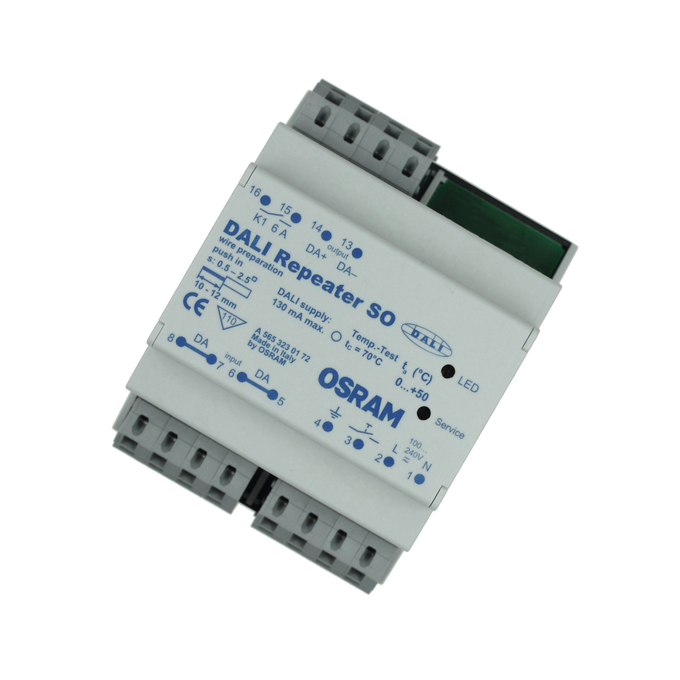

DALI REP SO
4008321301093
Product benefits
- The ECGs connected to the repeater operate as a group
- Disconnection of ECG standby power via integrated load contact
- Can be addressed via DALI
- Cascadable
Areas of application
- Large luminaire groups
Product features
- Expansion of DALI systems by 64 ECGs each time
- Extends the DALI line by 300 m
- Touch DIM control of 64 DALI ECGs
- Maximum power consumption in stand-by mode: 1 W
Ambient temperature range
0…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Dimmable
No
Dimming interface
DALI
GTIN
4008321301093
Height
62.00 mm
Length
96.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Load contact
6 A
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
230 V
Nominal wattage
5.00 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
150.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of current
AC
Type of installation
DIN rail mounting
Type of protection
IP20
Width
72.00 mm
