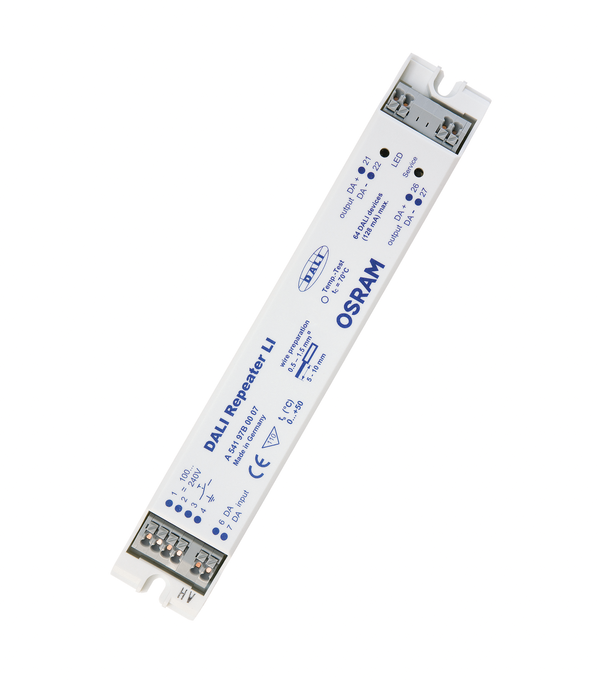

DALI REP LI
4008321292599
Product benefits
- The ECGs connected to the repeater operate as a group
- Can be addressed via DALI
- Cascadable
Areas of application
- Device for luminaire installation
Product features
- Expansion of DALI systems by 64 ECGs each time
- Extends the DALI line by 300 m
- Touch DIM control of 64 DALI ECGs
- Maximum power input: 4 W
Equipment / Accessories
- Independent installation in connection with LMS CI BOX
Ambient temperature range
0…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Dimmable
No
Dimming interface
DALI
GTIN
4008321292599
Height
21.00 mm
Length
189.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
180,0 mm
Nominal voltage
230 V
Nominal wattage
4.00 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
69.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of current
AC
Type of installation
Luminaire integration
Type of protection
IP20
Width
30.00 mm
