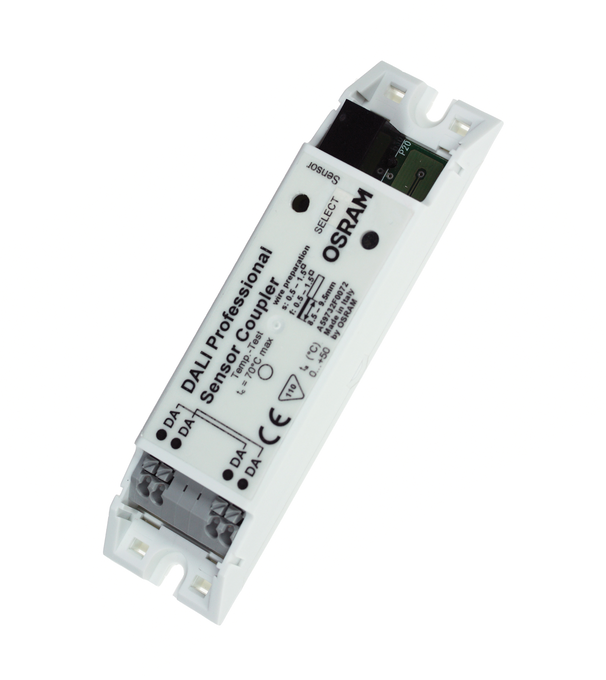

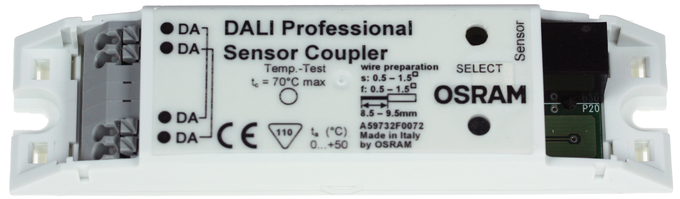

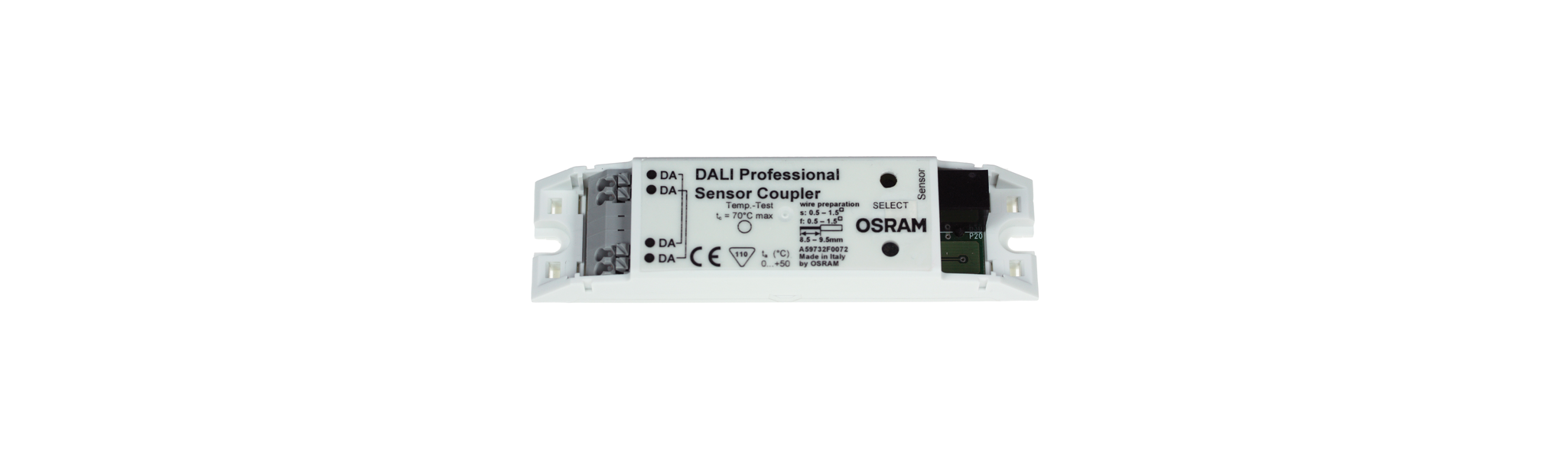

DALI PRO Sensor Coupler
4008321379269
Product benefits
- Power supply from DALI
Areas of application
- Connection of light and presence sensors in DALI systems
- Ceiling or independent installation via ECO CI KIT possible
Equipment / Accessories
- Suitable for all light and presence sensors from the MULTI 3 range
- Suitable for many OSRAM DALI control systems
Ambient temperature range
0…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Dimmable
No
Dimming interface
DALI
GTIN
4008321379269
Height
21.00 mm
Length
118.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
110,0 mm
Nominal voltage
20 V
Nominal wattage
0.10 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
35.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Luminaire integration/Ceiling integration
Type of protection
IP20
Width
30.00 mm
