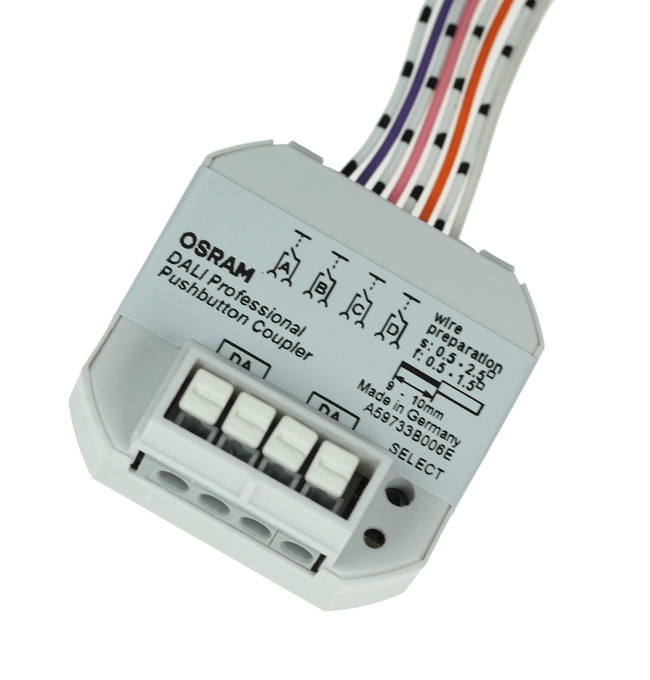

DALI PRO PB Coupler
4008321496461
Product benefits
- Power supply from DALI
- Standard pushbuttons/switches can be used
Areas of application
- Classrooms
- Conference rooms
- Suitable for installation in flush-type boxes
- Production and assembly facilities
- Individual offices
Product features
- DALI pushbutton coupler
- 4 floating inputs
Equipment / Accessories
- Can be used with DALI Professional or DALIeco light control system
Ambient temperature range
0…+50 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
DALI
GTIN
4008321496461
Height
20.00 mm
Length
42.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
20 V
Nominal wattage
1.00 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
22.00 g
Protection class
II
Type of protection
IP20
Width
42.00 mm
