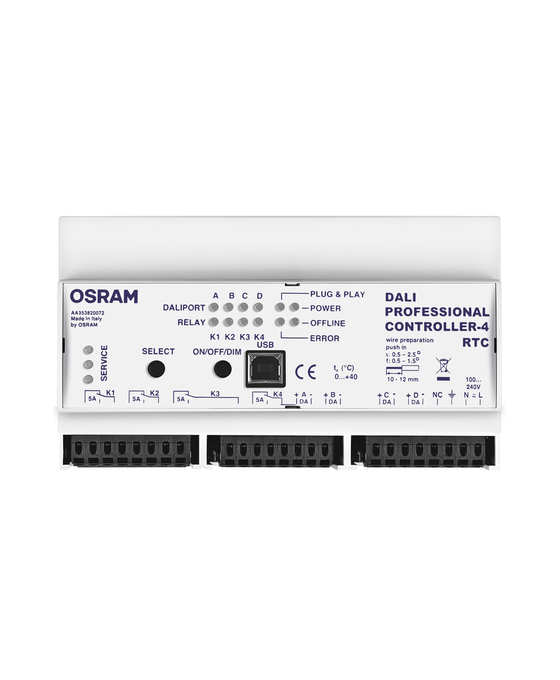

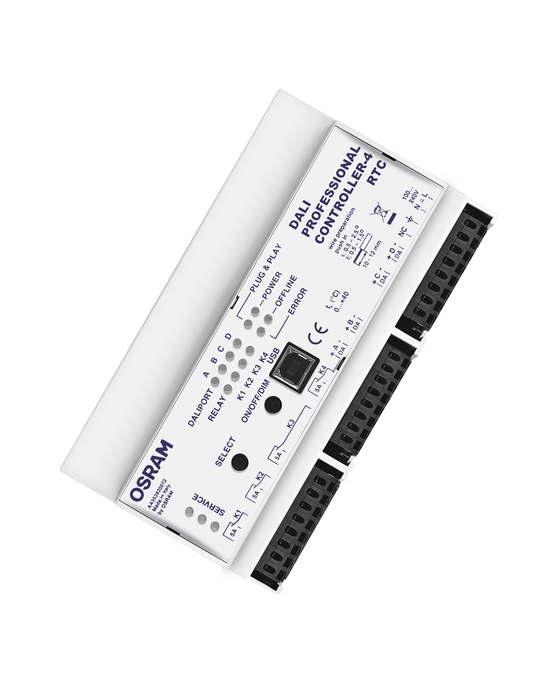

DALI PRO C-4RTC

Product benefits

• Easy and intuitive control via App
• Control up to 1024 DALI ECGs via LAN interconnectivity
• Plug and Play preconfigured for instant use without any startup procedure
• Mains voltage interruption buffer battery
• All the luminaires in the system can be dimmed or switched
• Simple creation of scenes and sequences
• Switching and dimming of up to 256 DALI ECGs per DALI Professional control unit
• A setpoint for daylight-dependent control can be stored by double clicking
• Sensor integration in DALI
• Remote access/remote maintenance

Areas of application

• Room control, floor control, daylight-dependent control
• Connection of light and presence sensors in DALI systems
• Conference rooms
• Offices: Individual and group workplaces
• Production and assembly facilities
• Suitable for indoor applications
• Large luminaire groups
• Industry
• Corridors
• Strip lighting
• Logistic centers
• Classrooms
• Sports halls
• Training rooms

Product features

• Interconnection of up to 4 DALI Professional control units
• Configuration via LAN/WLAN/USB
• RGB color sequences
• Time-of-day-dependent color temperature adjustment (human centric lighting)
• Controller for 4 DALI lines
• Up to 50 pushbutton/sensor couplers can be integrated
• Integrated DALI supply
• 4 freely programmable switchover relays; load contact: 4x 5 A
• Daylight-dependent and/or presence-dependent or manual control
• Up to 4 x 16 groups can be controlled
• Integrated clock for event control
• Weekly scheduler
• Connection via push-in terminals
• Control of lighting scenes and sequences (recall/store)
• Housing for series installation
• Length of the DALI control cable: up to 300 m

Equipment / Accessories

• Free smartphone App for iOS and Android
• Suitable for up to 256 electronic control gears with DALI interfaces
• Graphic configuration software with Windows user interface

References / Links

• Configuration software available at
