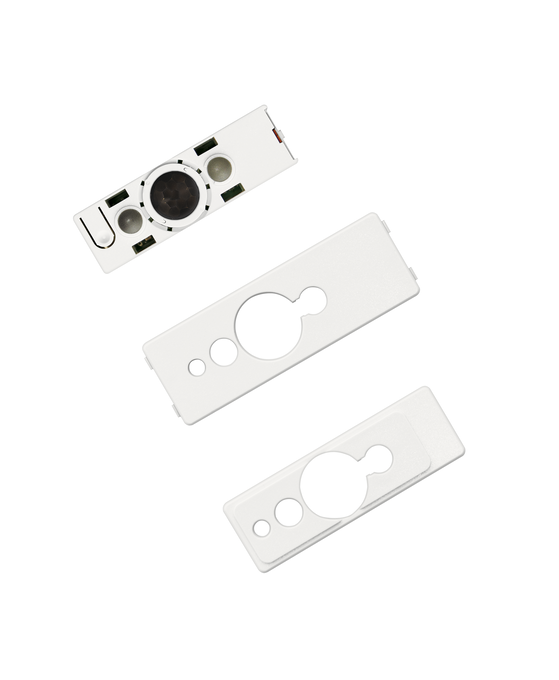

DALI LS/PD LI
4052899043954
Product benefits
- Small housing design
- Presence detection angle adjustable between 40…90° via integrated shutters
Areas of application
- Installation in industry and office luminaires
- Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
Product features
- Direct connection to DALI
- Light and presence sensor for luminaire installation
- Presence detection via passive IR element
- Light sensor operating range: 20…800 lx (measured at sensor)
- Function indicator with two-color LED
- Mounting height: 2…5 m
Equipment / Accessories
- Suitable for DALI Professional and DALIeco Control unit
- Attachable mounting frame for luminaire mounting from inside and outside
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Detection angle
80 °
Detection area
6 m 1)
Dimmable
No
GTIN
4052899043954
Height
17.00 mm
Length
48.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Maximum installation height
5 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
16 V
Operating range, light sensor
20…800 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
10.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Ceiling integration/Luminaire integration
Type of protection
IP20
Width
15.00 mm
