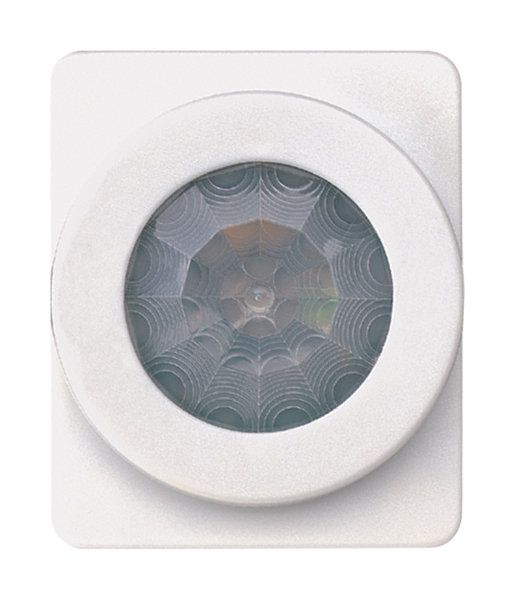

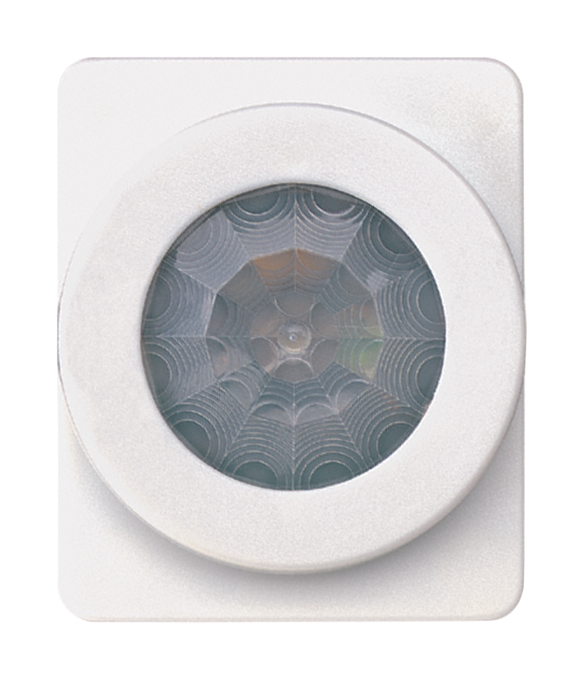

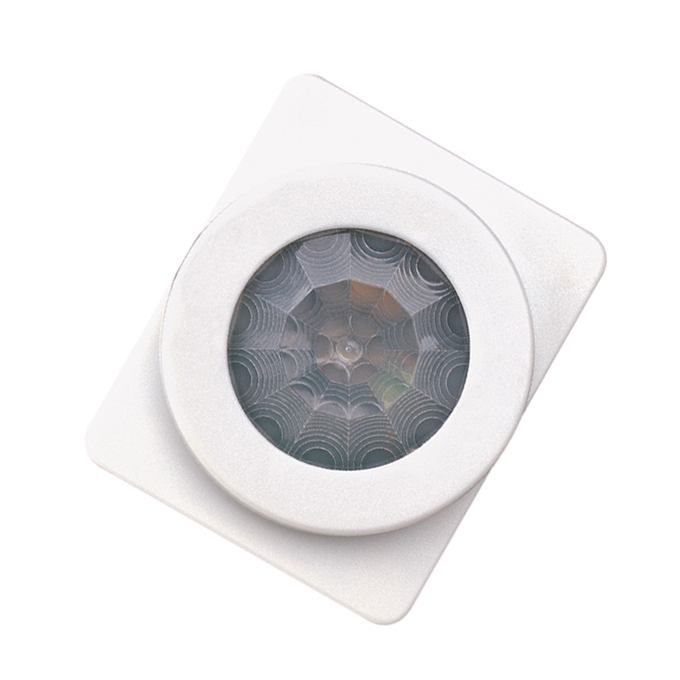

DALI LS/PD BASIC
4050300639949
Product benefits
- Setup without software
Areas of application
- Conference rooms
- Individual offices
- Suitable for separate mounting
Product features
- Light and presence sensor for luminaire installation and ceiling mounting
- Can also be used purely as a light sensor or purely as a presence sensor
Equipment / Accessories
- Direct mounting to fluorescent lamp in luminaire with supplied clip
- Suitable for DALI RC BASIC SO
Ambient temperature range
0…+50 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
100 ° 1)
Dimmable
Yes
Dimming interface
Analog
GTIN
4050300639949
Height
42.00 mm
Length
59.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Max. cable length to lamp/LED module
100 m
Maximum installation height
6 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal wattage
0.30 W
Operating range, light sensor
0…400 lx 2)
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
90.00 g
Protection class
III
Type of protection
IP20
Width
71.00 mm
