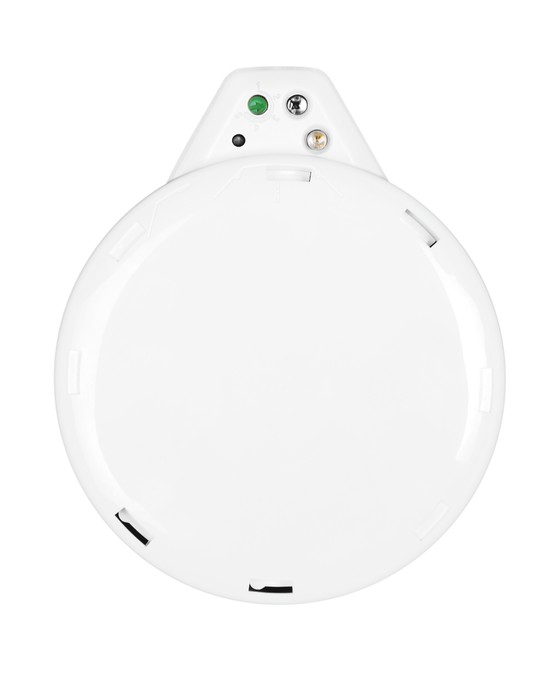

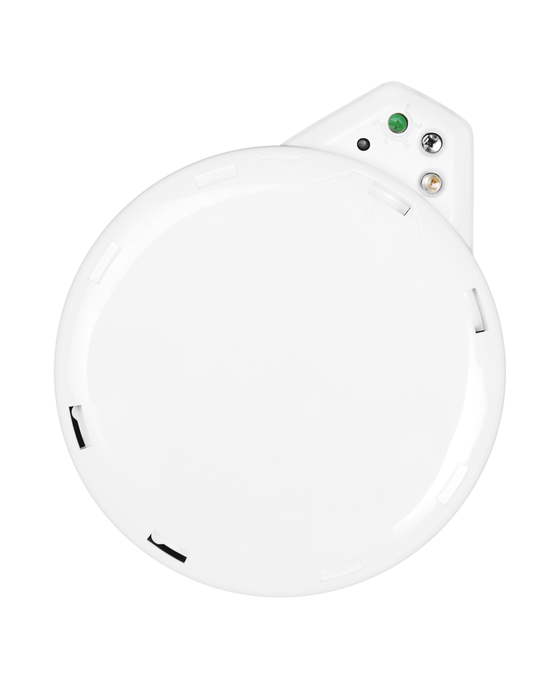

DALI COUPLER LS HIGHBAY G2
4062172072137
Product benefits
- DALI-2 certified
- Adaptable light sensor sensitivity for different mounting height
- Extended terminal section enables mains looping
- Flexible addressing via DALI-2
- Multiple couplers connectable to the same DALI line
Areas of application
- Industry
- Production halls
- Sports halls
- Logistic centers
- Areas with high ceilings
- Connection of light and presence sensors in DALI systems
- Suitable for indoor installations
- Production and assembly facilities
- Open-plan offices, corridors and storage rooms
- Corridors
- Strip lighting in factory halls
Product features
- Coupler for integration of light and presence information in DALI installations
- Integrated light sensor
- Adapter for integration of High Bay or Vision Sensor for motion detection
Equipment / Accessories
- High Bay Sensor for big installation heights
- Vision Sensor for wide detection range
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
DALI-2
GTIN
4062172072137
Height
37.00 mm
Length
139.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0 Hz
Maximum installation height
13 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
16 V
Nominal wattage
0.10 W
Operating range, light sensor
20…800 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
74.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
On-top ceiling mounting
Type of protection
IP20
Width
118.00 mm
