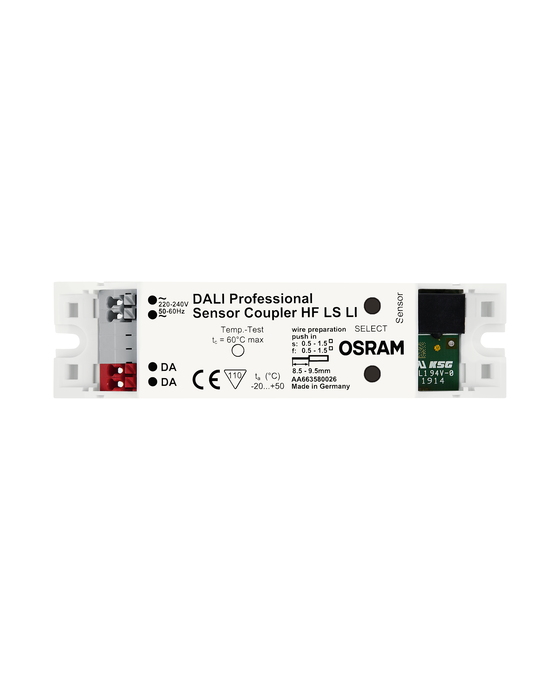

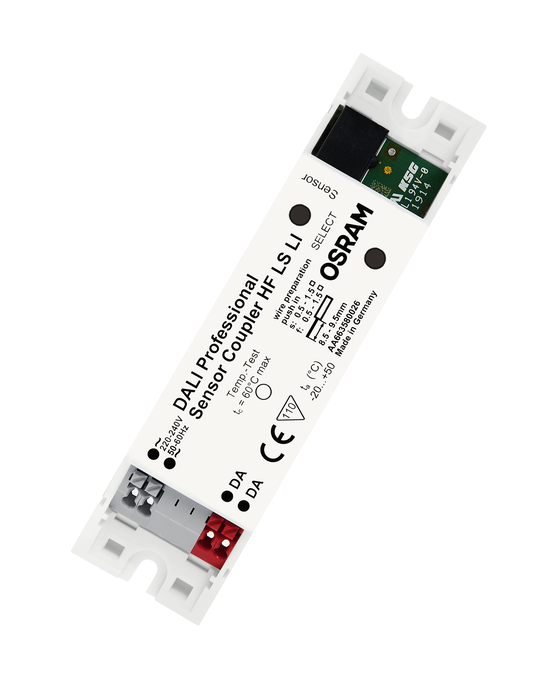

DALI COUPLER HF G2
4062172072199
Product benefits
- DALI-2 certified
- Multiple couplers connectable to the same DALI line
- Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
- Connection of light and presence sensors in DALI systems
- Ceiling or independent installation via ECO CI KIT possible
- Luminaire and ceiling integration
- Installation in industry and office luminaires
- Installation in IP protected luminaires possible
- Areas with high ceilings
Product features
- Coupler for integration of light and presence information in DALI installations
- 4p4c-connector for HF LS LI Sensor (Light- and motion detection via radar)
- Very low DALI Power consumption
- for sensor features see HF LS LI sensor
Equipment / Accessories
- HF LS LI - Light and presence Sensor head with HF technology (radar)
- Separate installation possible with ECO CI KIT
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
DALI-2
GTIN
4062172072199
Height
21.00 mm
Length
118.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
0.35 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Light grey
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Ceiling integration/Luminaire integration
Type of protection
IP20
Width
30.00 mm
