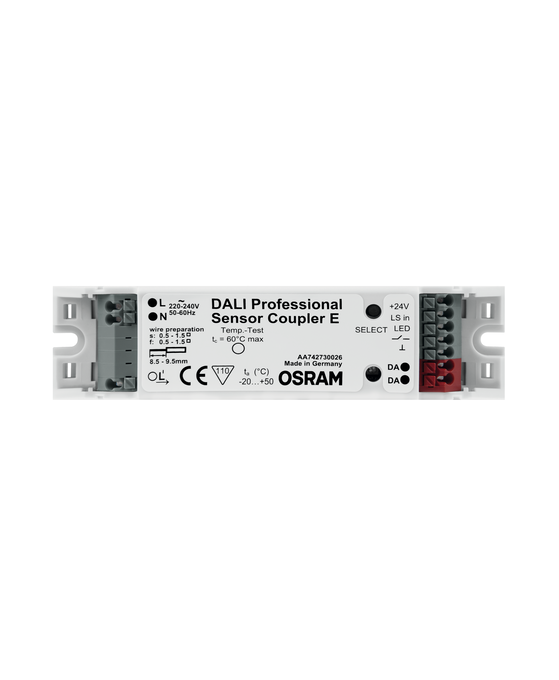

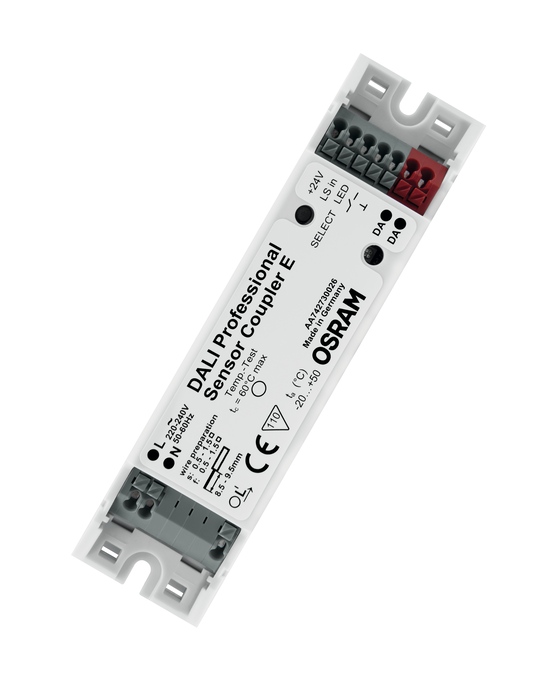

DALI COUPLER E G2
4062172072212
Product benefits
- DALI-2 certified
- Output for presence detection feedback LEDs
- 24 V DC output for power supply of external sensors
Areas of application
- Installation in industry and office luminaires
- Suitable for luminaire integration
- Corridors
- Warehouses
Product features
- Coupler for integration of light and presence information in DALI installations
- Switching input for motion detector (potential free)
- Analog input (0-10 V) for light sensor
Equipment / Accessories
- Ceiling or independent installation via ECO CI KIT possible
- Suitable for external light and presence sensors
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
DALI-2
GTIN
4062172072212
Height
21.00 mm
Length
118.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
0.30 W
Number of control outputs
1
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Light grey
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Ceiling integration/Luminaire integration
Type of protection
IP20
Width
30.00 mm
