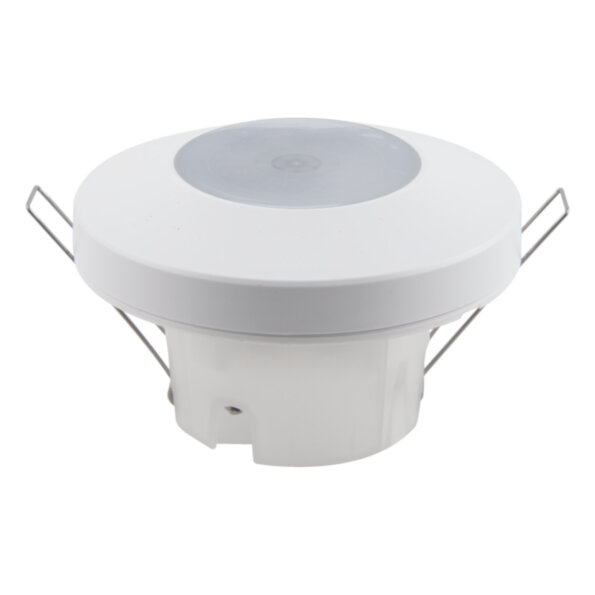

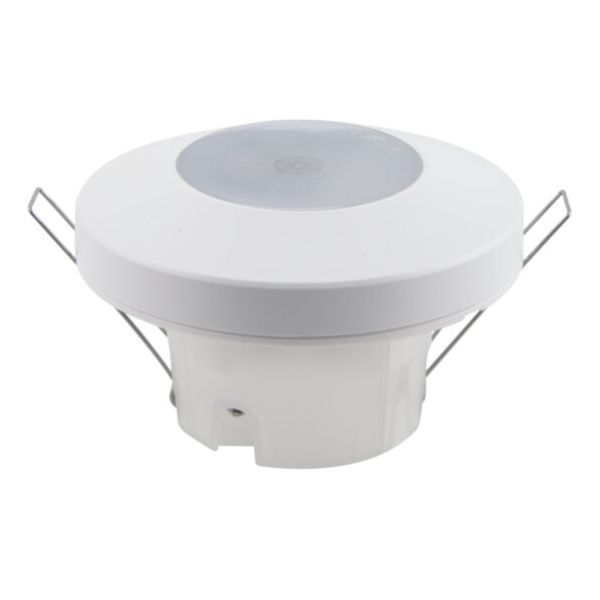

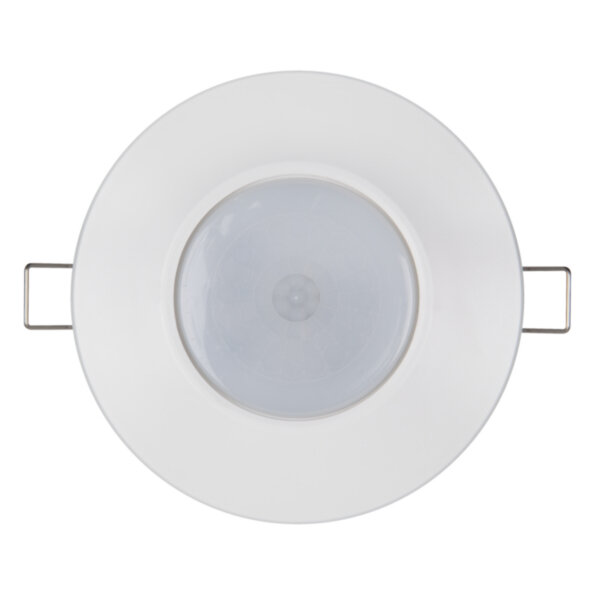

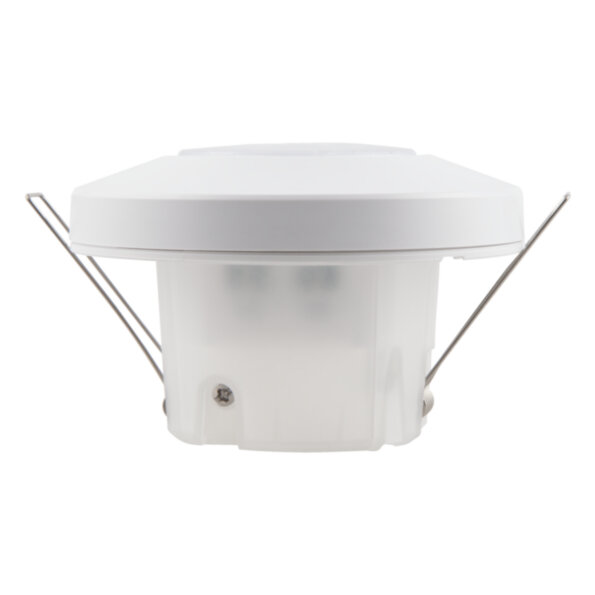

DALI-2 SENSOR LS/PD O CI
4052899630444
Product benefits
- Large motion detection range
- Simple and fast installation via wire springs
- DALI-2 certified
- DALI Bus powered (No mains connection necessary)
- Multiple sensors connectable to the same DALI line
- Shutter included to optimize sensor detection
- Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
- Open offices
- Indoor navigation
- Conference rooms
- Classrooms
- Storage and break areas
- Stairways
- Sanitary areas
Product features
- Light and presence sensor for ceiling integration
- Presence detection via passive IR element
- Light sensor operating range: 5…2000 lx (measured at sensor)
- Detection height up to 4 meter
- Function indicator LED
Equipment / Accessories
- Optional: Surface mounting via QBM 220-240 LS/PD CM KIT
- Optional: IP54 with Surface mounting KIT
Ambient temperature range
-20…+45 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Detection angle
360 °
Detection area
12 m²
Diameter
105.00 mm
Dimmable
No
Dimming interface
DALI-2
GTIN
4052899630444
Height
67.00 mm
Length
105.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0 Hz
Maximum installation height
4 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
68.00 mm
Nominal voltage
16 V
Nominal wattage
0.10 W
Operating range, light sensor
5…2000 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Light grey
Product recyclability
Mostly recyclable product 1)
Product weight
120.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Ceiling integration
Type of protection
IP20
Width
105.00 mm
