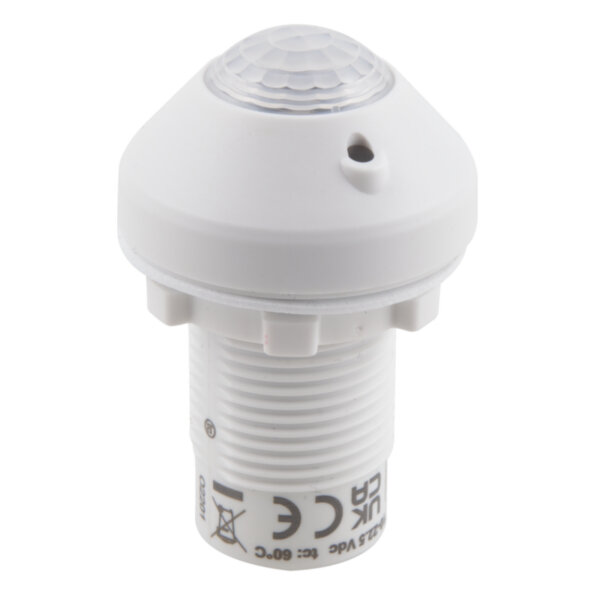

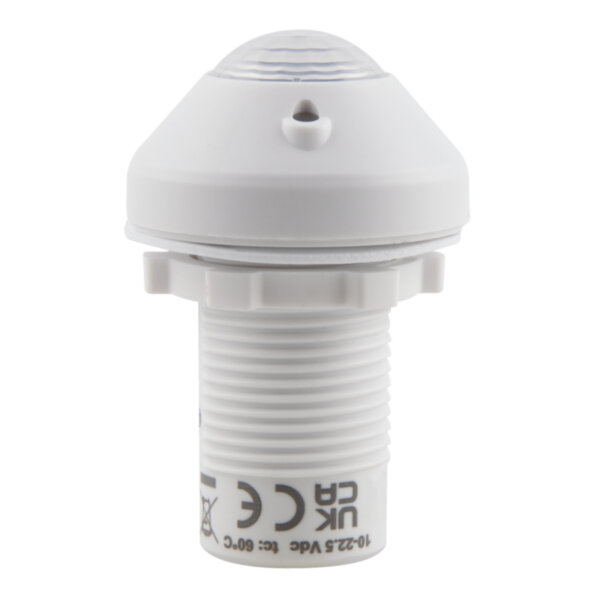

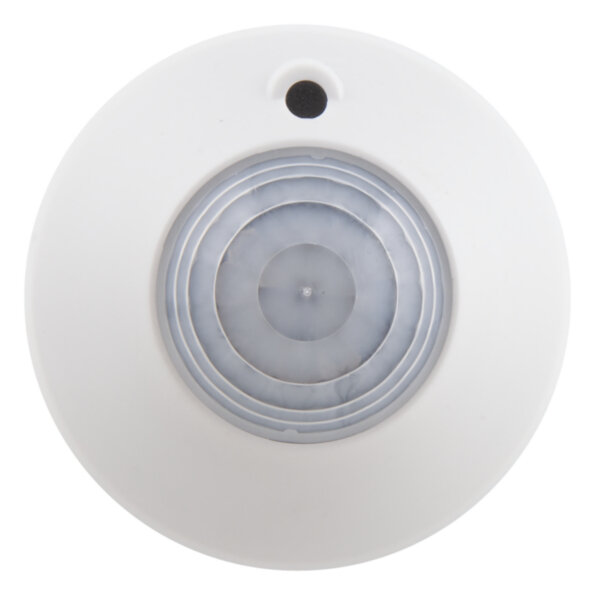

DALI-2 SENSOR LS/PD HB LI
4052899630482
Product benefits
- Design freedom due to compact size
- Protection Class IP65 (In installed condition)
- Easy to integrate in luminaire
- DALI-2 certified
- DALI Bus powered (No mains connection necessary)
- Multiple sensors connectable to the same DALI line
- Shutter included to optimize sensor detection
- Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
- Industry
- High-bay warehouse
- Suitable for high installation heights
- Production halls
- Entrance halls
Product features
- Light and motion sensor for luminaire installation
- Motion detection via passive IR element
- Light sensor operating range: 5…2000 lx (measured at sensor)
- Detection height up to 17 m
- Function indicator LED
- Intended for installation into a standard ½" knockout
Equipment / Accessories
- Optional: Attachment housing - Batten mount adapter (IP65)
Ambient temperature range
-20…+45 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Detection angle
360 °
Detection area
18 m²
Diameter
37.00 mm
Dimmable
No
Dimming interface
DALI-2
GTIN
4052899630482
Height
57.00 mm
Length
37.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0 Hz
Maximum installation height
17 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
36.50 mm
Nominal voltage
16 V
Nominal wattage
0.10 W
Operating range, light sensor
5…2000 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Light grey
Product recyclability
Mostly recyclable product 1)
Product weight
21.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Luminaire integration
Type of protection
IP65 1)
Width
37.00 mm
