LS VAL -600/830/30/IP65
4058075597464
Product benefits
- Long LED strips for customized solutions made to measure
- Great design freedom thanks to flexibility and cuttability of module
- Suitable for use in damp conditions thanks to high type of protection
- Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
- Maximum flexibility due to large range of accessories
- Easy installation, no tools required for connection
Areas of application
- General outdoor illumination
- Cove lighting
- Bars, restaurants, hotels
- Residential interiors
Product features

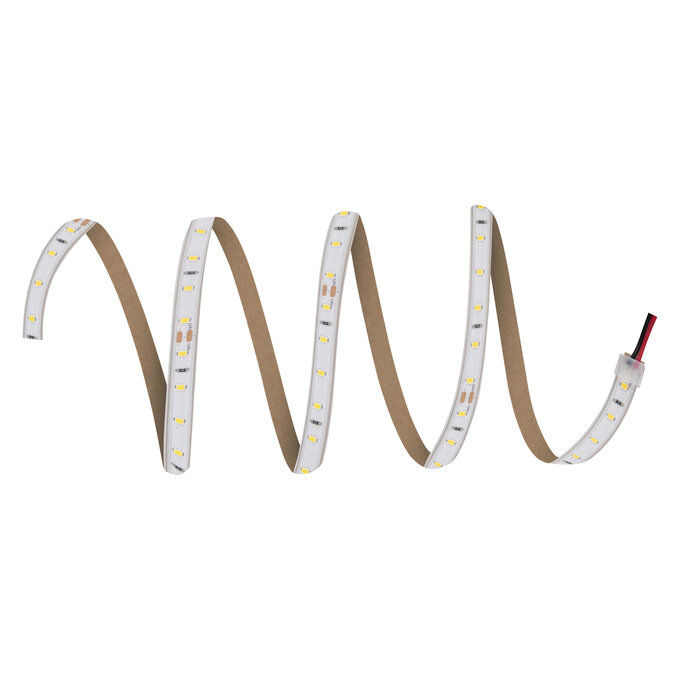

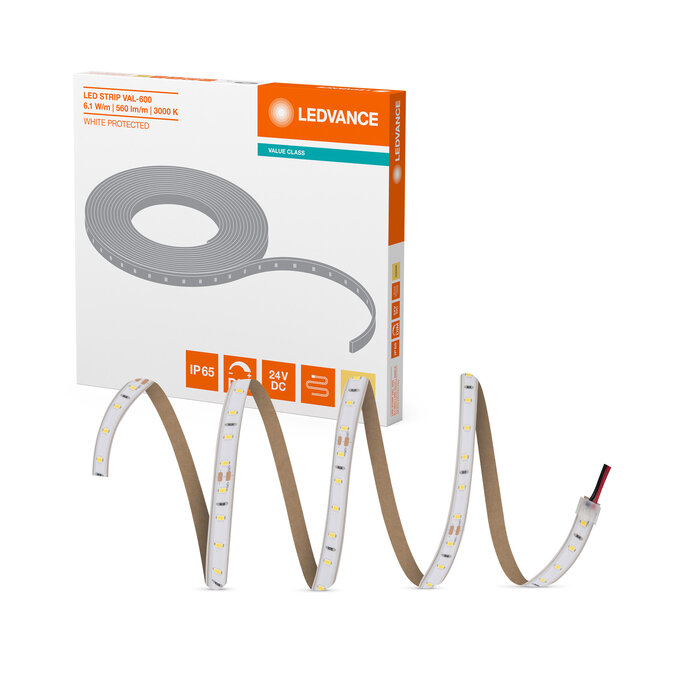

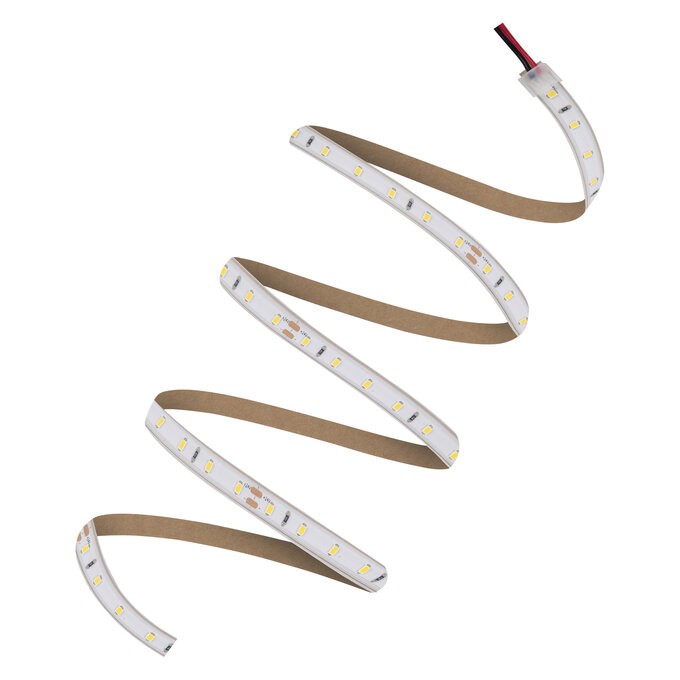

- Flexible and cuttable LED strip
- Luminous flux: 600 lm/m
- Color rendering index Ra: > 80
- Lifetime (L70/B50): up to 20,000 h at Tc max.: 75°C
- Smallest cuttable unit: 100 mm
- Available with color temperature: 3,000 K, 4,000 K, 6,500 K
- Type of protection: IP65
- Dimmable with suitable drivers, see also
Equipment / Accessories
- Connectors, profiles and covers for several mounting options available
Ambient temperature range
-20…+40 °C
Approval marks – approval
CE
Beam angle
110 °
Cable length
500.000
Color rendering index Ra
> 80
Color temperature
3000 K
Conductor cross section
0.5 mm²
Construction wattage
27.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Silicone
Dimmable
Yes 1)
Energy class of contained light source
G
Energy consumption
3.10 kWh/1000h 1)
GTIN
4058075597464
Height
4.00 mm
Input voltage range
23…25 V
LED pitch
16.67 mm
Length
30000.00 mm
Length – smallest unit
100 mm
Light color (designation)
White
Light color LED
White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lowest bending radius
15.0 mm
Luminous efficacy
90 lm/W 1)
Luminous flux
2500 lm
Luminous flux per meter
560 lm 1)
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
230 mA
Nominal lamp life time
20000 h
Nominal voltage
24 V
Nominal wattage
27.50 W
Nominal wattage per meter
6.1 W 1)
Number of LEDs per meter
60
Number of LEDs per smallest unit
6
Packaging recyclability
Mostly recyclable packaging 1)
Prewired
Yes
Product recyclability
Mostly recyclable product 1)
Product weight
2200.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Reverse Voltage
30 V
Salt mist resistance acc. IEC 60068-2-52
No
Self-adhesive
Yes
Short pitch
No
Standard deviation of color matching
≤5 sdcm
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+40 °C
Type of current
DC
Type of protection
IP65
UV resistance acc. IEC 60068-2-5
Yes
Width
10.00 mm
