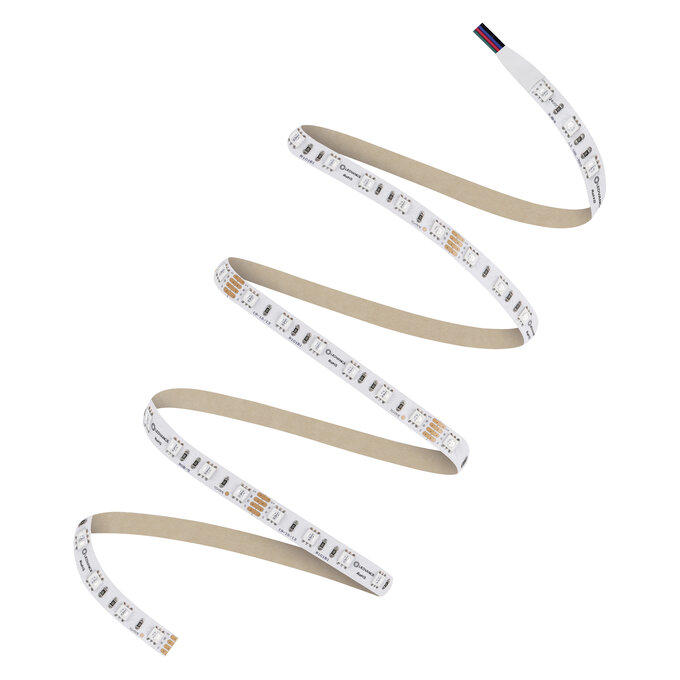

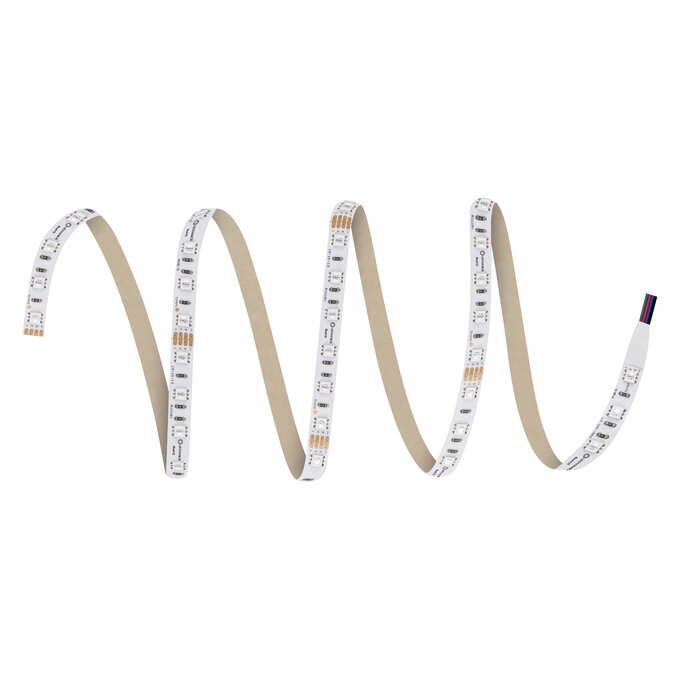

LS VAL -500/RGB/5
4058075404441
Product benefits
- Great scope of design options due to long and flexible RGB LED strips
- Uniform color changing
- Easy installation, no tools required for connection
- Easy mounting on many smooth surfaces thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories
- Simple connection thanks to integrated cables on both sides
Areas of application
- Effect lighting in architecture
- Dynamic effects in public zones
- Cove lighting
- Under-cabinet lighting
- Hotels and Offices
- Residential interiors
Product features
- Flexible and splittable LED strip with inline multichip RGB LEDs
- Smallest cuttable unit: 100 mm
- Lifetime (L70/B50): up to 40,000 h at Tc max.: 75°C
- Dimmable by pulse width modulation (PWM)
Safety advice
- All electrical connections must be made by a qualified person.
Ambient temperature range
-20…+45 °C 1)
Approval marks – approval
Ro
Beam angle
120 °
Cable length
500.000
Conductor cross section
0.5 mm²
Construction wattage
67.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes 1)
GTIN
4058075404441
Height
2.20 mm
Input voltage range
23…25 V 2)
LED pitch
16.7 mm
Length
5000.00 mm
Length – smallest unit
100 mm
Light color (designation)
RGB
Light color LED
RGB
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lowest bending radius
30 mm
Luminous efficacy
37.2 lm/W 1)
Luminous flux
2400 lm
Luminous flux per meter
535 lm 1)
Luminous flux per meter - Blue
73 lm/m 1)
Luminous flux per meter - Green
325 lm/m 1)
Luminous flux per meter - Red
106 lm/m 1)
Luminous flux per meter - RGB
535 lm/m 1)
Luminous flux per module chain
2400 lm
Maximum temperature at tc test point
75 °C 2)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
2800 mA
Nominal lamp life time
40000 h
Nominal voltage
24 V 2)
Nominal wattage
67.00 W
Nominal wattage per meter
14.4 W 1)
Number of LEDs per meter
60
Number of LEDs per module
300
Number of LEDs per smallest unit
6
Packaging recyclability
Mostly recyclable packaging 1)
Prewired
Yes
Product recyclability
Mostly recyclable product 1)
Product weight
110.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
120.00 °
Reverse Voltage
27 V 2)
Salt mist resistance acc. IEC 60068-2-52
No
Self-adhesive
Yes
Short pitch
No
Temperature range at storage
-20…+85 °C
Type of current
DC
Type of protection
IP00
UV resistance acc. IEC 60068-2-5
No
Width
10.00 mm
