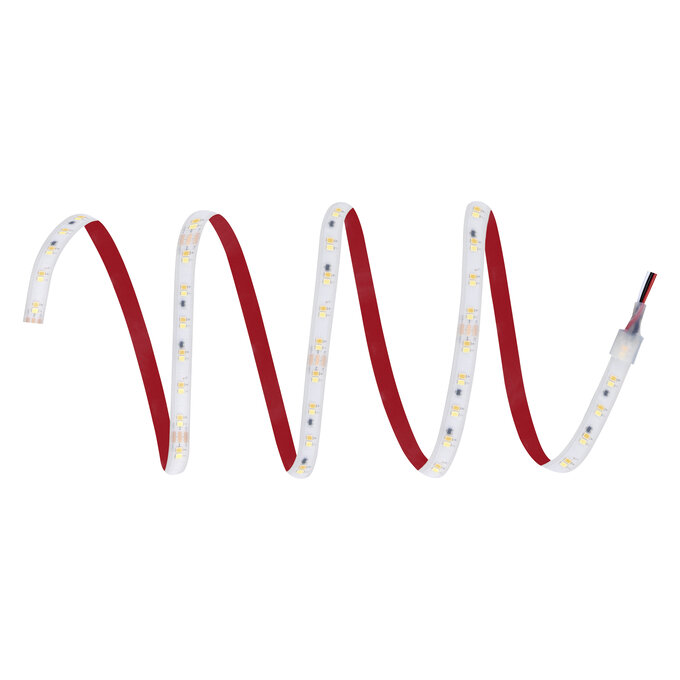

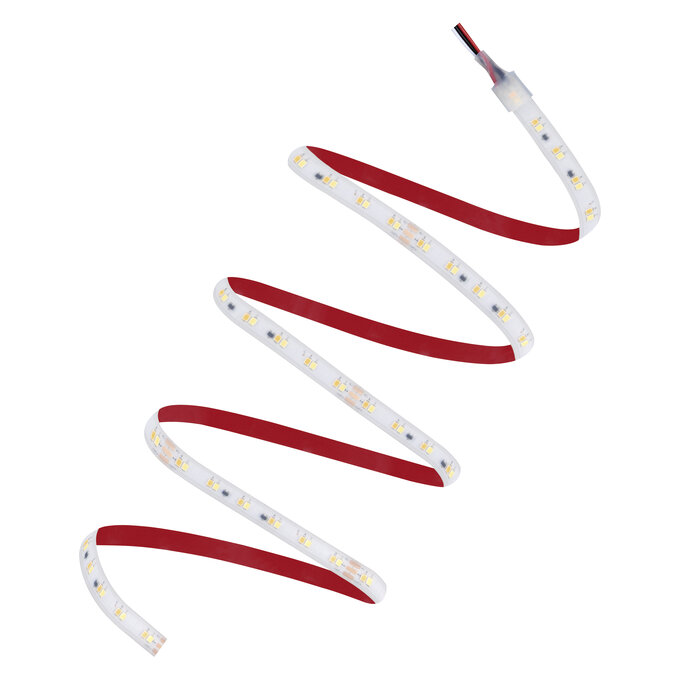

LS SUP -2000/TW/927-965/5/IP67
4058075436008
Product benefits
- Great scope of design options due to long and flexible TW LED strips
- Easy installation, no tools required for connection
- Easy mounting thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories
- Simple connection thanks to integrated cables on both sides
Areas of application
- Suitable for indoor and outdoor applications (IP67)
- Cove lighting
- Hotels
- Offices
- General illumination
Product features
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Smallest cuttable unit: 100 mm
- Lifetime (L70/B50): up to 50,000 h at Tc max. ≤ 85°C
- Dimmable by pulse width modulation (PWM)
- Type of protection: IP67
- Highly UV-resistant
- Salt mist proof
Ambient temperature range
-20…+55 °C 1)
Beam angle
110 °
Cable length
500.000
Color rendering index Ra
> 90
Color temperature
2700…6500 K
Conductor cross section
0.5 mm²
Construction wattage
108.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Silicone
Dimmable
Yes 1)
Energy class of contained light source
G
GTIN
4058075436008
Height
5.00 mm
Input voltage range
23…25 V 2)
LED pitch
16.67 mm
Length
5000.00 mm
Length – smallest unit
100 mm
Light color (designation)
Tunable White
Light color LED
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lowest bending radius
30 mm
Luminous efficacy
76 lm/W
Luminous flux
8450 lm
Luminous flux per meter
1640 lm
Luminous flux per meter - Cool white
1010 lm/m
Luminous flux per meter - Warm white
900 lm/m
Luminous flux per module chain
9762 lm
Maximum temperature at tc test point
85 °C 2)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
4500 mA
Nominal lamp life time
50000 h
Nominal voltage
24 V 2)
Nominal wattage
108.00 W
Nominal wattage per meter
21.6 W 1)
Number of LEDs per meter
120
Number of LEDs per module
600
Number of LEDs per smallest unit
6
Packaging recyclability
Mostly recyclable packaging 1)
Prewired
Yes
Product recyclability
Mostly recyclable product 1)
Product weight
440.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
110.00 °
Salt mist resistance acc. IEC 60068-2-52
Yes
Self-adhesive
Yes
Short pitch
No
Standard deviation of color matching
‹4 sdcm
Temperature range at storage
-35…+85 °C
Type of current
DC
Type of protection
IP67
UV resistance acc. IEC 60068-2-5
Yes
Width
12.00 mm
