LS PFM -1000/RGBW/840/5
4058075436282
Product benefits
- Great scope of design options due to long and flexible RGBW LED strips
- Easy installation, no tools required for connection
- Easy mounting thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories
- Simple connection thanks to integrated cables on both sides
- Good white light quality thanks to dedicated white LEDs
Areas of application
- General illumination
- Architecture lighting
- Dynamic light as an architectural effect in public zones
- Intensive color effects for special moods
- Cove lighting
- Hotels and Offices
- Residential interiors
Product features

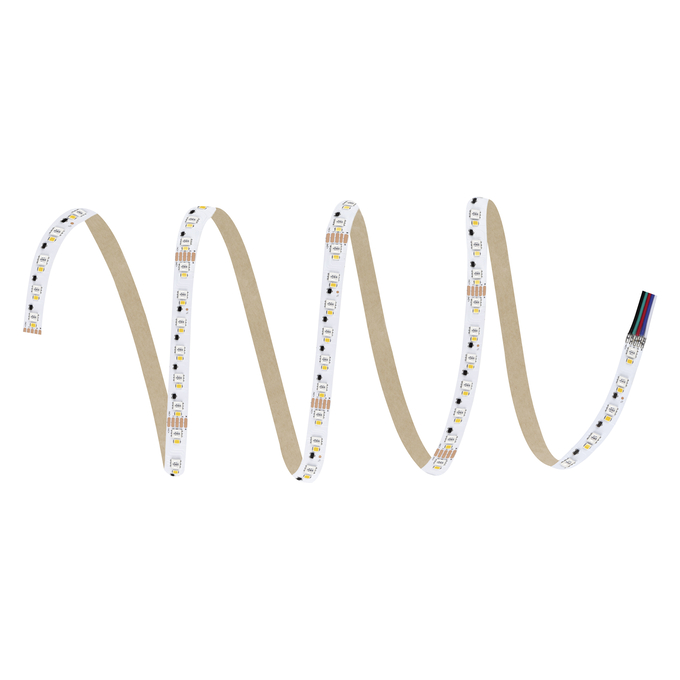

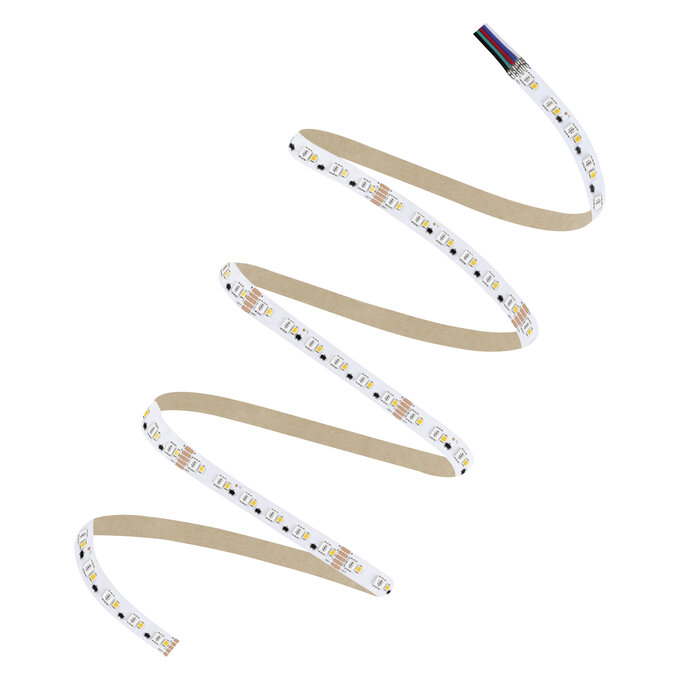

- Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
- Smallest cuttable unit: 100 mm
- Lifetime (L70/B50): up to 40,000 h at Tc max. ≤ 85°C
- Dimmable by pulse width modulation (PWM)
Safety advice
- All electrical connections must be made by a qualified person.
Ambient temperature range
-20…+55 °C 1)
Approval marks – approval
T
Beam angle
120 °
Cable length
500.000
Color rendering index Ra
> 80
Color temperature
4000 K
Conductor cross section
0.5 mm²
Construction wattage
98.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Dimmable
Yes 1)
Energy class of contained light source
F
GTIN
4058075436282
Height
1.90 mm
Input voltage range
23…25 V 3)
LED pitch
16.67 mm
Length
5000.00 mm
Length – smallest unit
100 mm
Light color (designation)
RG
Light color LED
RGB, white
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lowest bending radius
30 mm
Luminous efficacy
109 lm/W
Luminous flux
6655 lm 1)
Luminous flux per meter
1235 lm
Luminous flux per meter - Blue
65 lm/m
Luminous flux per meter - Green
260 lm/m
Luminous flux per meter - Red
100 lm/m
Luminous flux per meter - RGB
395 lm/m
Luminous flux per module chain
6655 lm
Maximum temperature at tc test point
85 °C 2)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
4080 mA
Nominal lamp life time
40000 h
Nominal voltage
24 V 3)
Nominal wattage
98.00 W 1)
Nominal wattage per meter
20.0 W 2)
Number of LEDs per meter
120
Number of LEDs per module
600
Number of LEDs per smallest unit
12
Packaging recyclability
Mostly recyclable packaging 1)
Prewired
Yes
Product recyclability
Mostly recyclable product 1)
Product weight
188.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
120.00 °
Salt mist resistance acc. IEC 60068-2-52
No
Self-adhesive
Yes
Short pitch
No
Standard deviation of color matching
‹4 sdcm
Temperature range at storage
-35…+85 °C
Type of current
DC
Type of protection
IP00
UV resistance acc. IEC 60068-2-5
No
Width
12.00 mm
