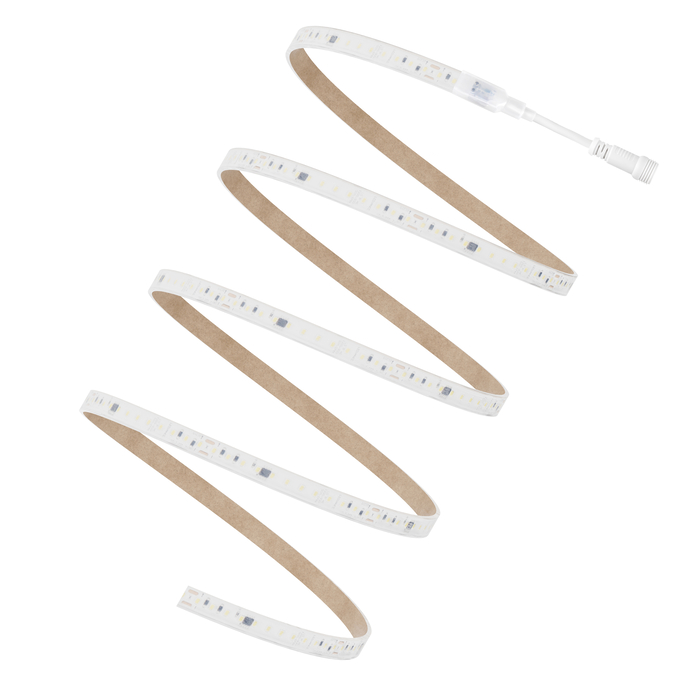

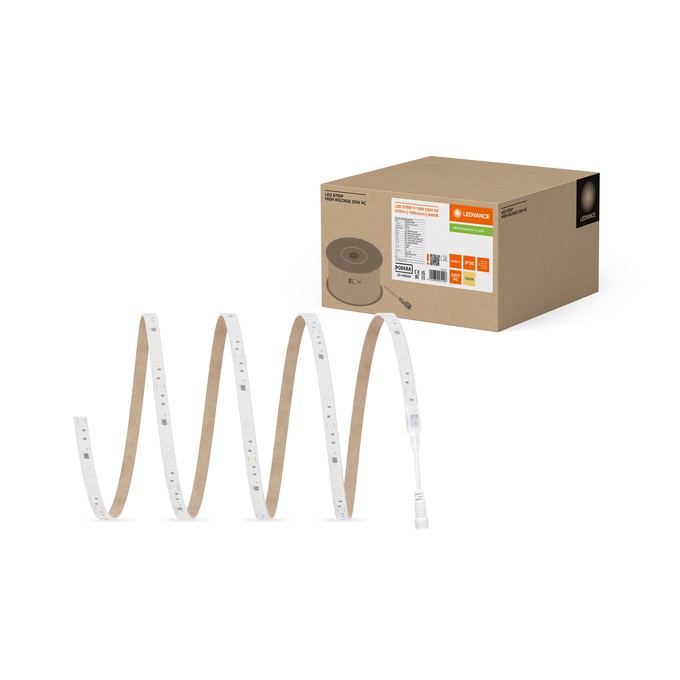

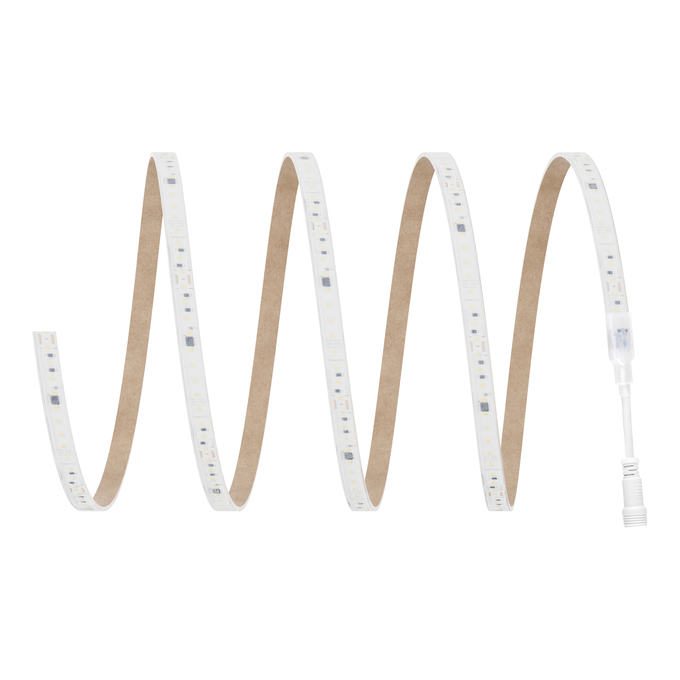

LS P AC 1300 830 50M IP66
4099854584428
Product benefits
- Great scope of design options due to 50 m long and flexible LED strips
- Easy mounting on many smooth surfaces thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories with integrated over-current protection (3.15A)
- Simple connection thanks to integrated cables with fast twist lock connectors
- Suitable for use in damp conditions thanks to high type of protection
Areas of application
- General indoor illumination
- General outdoor illumination
- Industry and construction site
- Offices, retail outlets and conference rooms
- Architecture lighting
- Decorative illumination
Product features
- Direct power supply with 220-240V AC mains
- Flexible and cuttable LED strip
- Smallest cuttable unit: 100 mm
- Lifetime (L70/B50): up to 50,000 h at Ta: 45°C
- Luminous flux: 1300 lm/m
- Prewired LED strip with 200 mm long fast twist lock connector for 220-240V AC mains supply connection
- Type of protection: IP66
Equipment / Accessories
- Connectors for several mounting options available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
Ambient temperature range
-20…+45 °C
Beam angle
120 °
Body material
Silicone
Cable length
266.000
Color rendering index Ra
> 80
Color temperature
3000 K
Construction wattage
12.00 W 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
Not dimmable
Energy class of contained light source
E
GTIN
4099854584428
Height
4.50 mm
Inrush current
12 A
Length
50000.00 mm
Length – smallest unit
100 mm
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lowest bending radius
30 mm
Luminous efficacy
108 lm/W 1)
Luminous flux
58500 lm 2)
Luminous flux per meter
1300 lm 3)
Mains frequency
50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
3
Max. ECG no. on circuit breaker 25 A (B)
8
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
2400 mA 3)
Nominal lamp life time
50000 h
Nominal voltage
220…240 V
Nominal wattage
550.00 W 1)
Nominal wattage per meter
12 W 2)
Number of LEDs per meter
120
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
0…93 %
Power factor λ
> 0.90
Product color
Transparent
Product recyclability
Mostly recyclable product 1)
Product remark
Suitable for DC input only in combination with LED DRIVER - DR P 500W 220-240V 215V
Product weight
69.4 g 1)
Protection class
II
Self-adhesive
Yes
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+45 °C
Type of current
AC/DC
Type of protection
IP66
Width
12.00 mm
