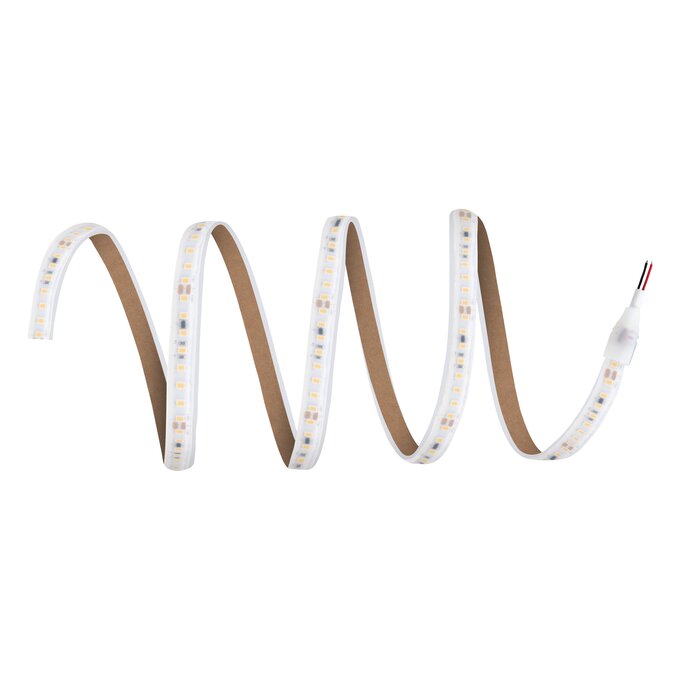

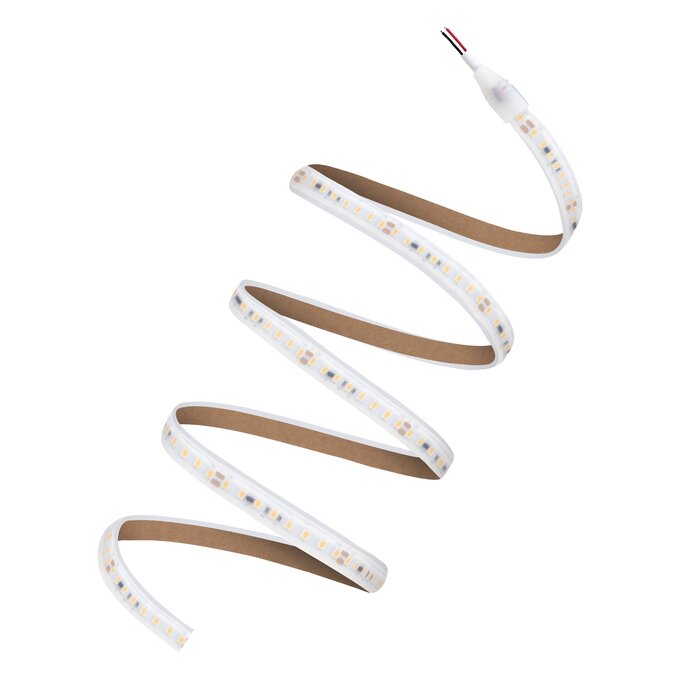

LS P -1500/940/5/IP67
4058075706033
Product benefits
- Great scope of design options due to long and flexible LED strips
- Easy installation, no tools required for connection
- Easy mounting on many smooth surfaces thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories
- Simple connection thanks to integrated cables on both sides
- Suitable for use in damp conditions thanks to high type of protection
Areas of application
- General indoor illumination
- General outdoor illumination
- Industry
- Offices, retail outlets and conference rooms
- Architecture lighting
- Decorative lighting
Product features
- Flexible and cuttable LED strip
- Smallest cuttable unit: 55.56 mm
- Lifetime (L70/B50): up to 50,000 h at Tc max.: 80°C
- Luminous flux: 1500 lm/m
- Very good color rendering index Ra: > 90
- Initial color consistency: < 3 SDCM
- Large range of color temperatures: from warm white to cool daylight
- Dimmable with suitable drivers, see also
- Type of protection: IP67
- UV restistance (acc. IEC 60068-2-5)
- Salt mist resistance (acc. IEC 60068-2-52)
Equipment / Accessories
- Connectors, profiles and covers for several mounting options available
- Endcaps have to be ordered separately
Ambient temperature range
-20…+55 °C
Beam angle
110 °
Cable length
500.000
Color rendering index Ra
> 90
Color temperature
4000 K
Conductor cross section
0.5 mm²
Construction wattage
60.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Silicone
Dimmable
Yes 1)
Energy class of contained light source
E
GTIN
4058075706033
Height
4.70 mm
Input voltage range
23…25 V
LED pitch
6.94 mm
Length
5000.00 mm
Length – smallest unit
55.56 mm
Light color (designation)
Daylight
Light color LED
Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lowest bending radius
30,0 mm
Luminous efficacy
121 lm/W
Luminous flux
6700 lm
Luminous flux per meter
1460 lm
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
All surfaces
Nominal current
2500 mA
Nominal lamp life time
50000 h
Nominal voltage
24 V
Nominal wattage
60.00 W
Nominal wattage per meter
12 W
Number of LEDs per meter
144
Number of LEDs per module
720
Number of LEDs per smallest unit
8
Packaging recyclability
Mostly recyclable packaging 1)
Prewired
Yes
Product recyclability
Mostly recyclable product 1)
Product weight
380.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
110.00 °
Salt mist resistance acc. IEC 60068-2-52
Yes
Self-adhesive
Yes
Short pitch
Yes
Standard deviation of color matching
‹3 sdcm
Temperature range at storage
-20…+80 °C
Type of current
DC
Type of protection
IP67
UV resistance acc. IEC 60068-2-5
Yes
Width
10.00 mm
