LS P 1000 RGBW 940 5
4099854358296
Product benefits
- Very good white light quality thanks to color rendering index Ra > 90 and dedicated white LEDs
- Great scope of design options due to long and flexible RGBW LED strips
- Easy mounting thanks to self-adhesive tape
- Simple connection thanks to integrated cables on both sides
- Maximum flexibility due to large range of accessories
- Easy installation, no tools required for connection
Areas of application
- General illumination
- Architecture lighting
- Dynamic light as an architectural effect in public zones
- Intensive color effects for special moods
- Cove lighting
- Hotels and Offices
- Residential interiors
Product features

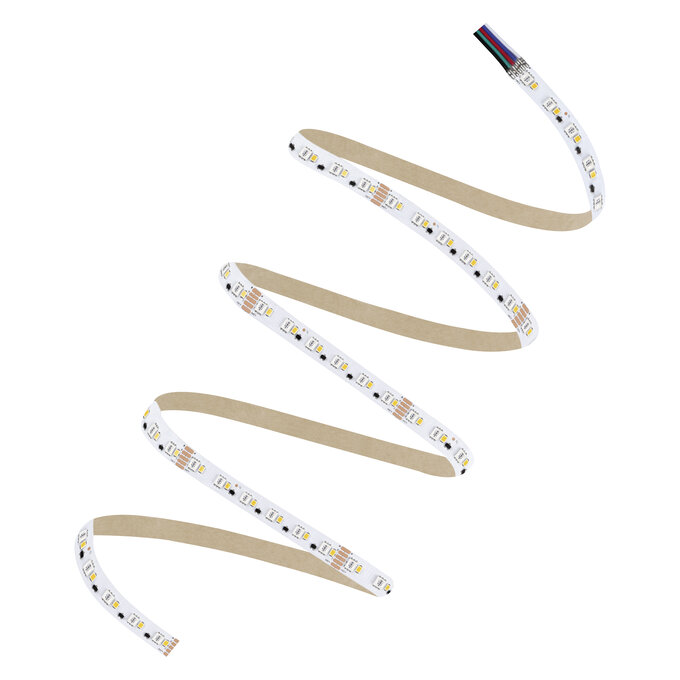

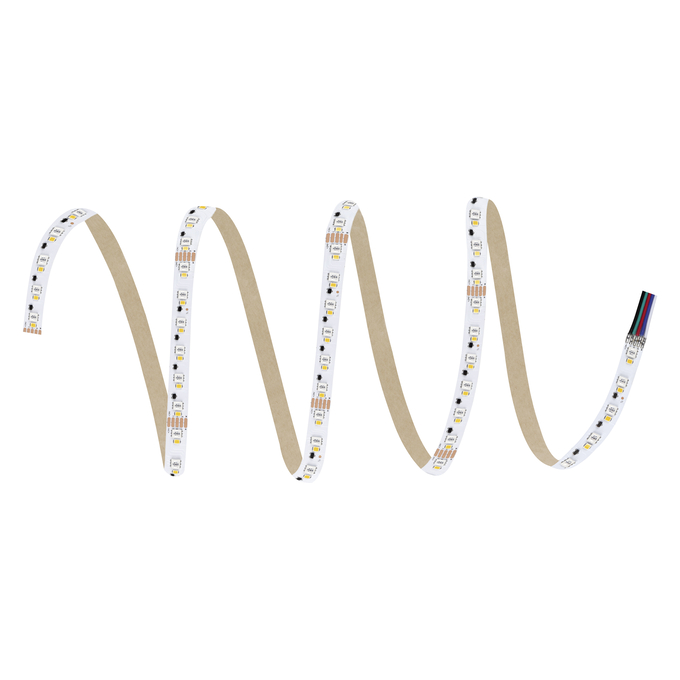

- Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
- Smallest cuttable unit: 83,30 mm
- Lifetime (L70/B50): up to 50,000 h at Ta: 55°C
- Dimmable by pulse width modulation (PWM)
Ambient temperature range
-20…+55 °C 1)
Approval marks – approval
T
Beam angle
120 °
Body material
Polycarbonate (PC)
Cable length
500.000
Color rendering index Ra
> 90
Color temperature
4000 K
Conductor cross section
0.5 mm²
Construction wattage
106.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes 1)
Energy class of contained light source
E
GTIN
4099854358296
Height
2.10 mm
Input voltage DC
24 V
Input voltage range
23…25 V
Inrush current
0.03 A
LED pitch
11.90 mm
Length
5000.00 mm
Length – smallest unit
83,33 mm
Light color (designation)
RG
Light color LED
RGB, white
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lowest bending radius
30,0 mm
Luminous efficacy
125 lm/W
Luminous flux
8450 lm 1)
Luminous flux per meter
1775 lm
Luminous flux per meter - Blue
110 lm/m
Luminous flux per meter - Green
510 lm/m
Luminous flux per meter - Red
155 lm/m
Luminous flux per meter - RGB
750 lm/m
Luminous flux per module chain
8450 lm
Maximum temperature at tc test point
85 °C 2)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Nominal current
4440.000 mA
Nominal lamp life time
50000 h
Nominal voltage
24 V
Nominal wattage
106.00 W 1)
Nominal wattage per meter
21 W 2)
Number of LEDs per meter
168
Number of LEDs per module
840
Number of LEDs per smallest unit
14
Overheating protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
0…55 %
Prewired
Yes
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from December 2024
Product weight
150.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
120.00 °
Salt mist resistance acc. IEC 60068-2-52
Yes
Self-adhesive
Yes
Standard deviation of color matching
< 4 sdcm
Standards
Acc. to IEC 624
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+55 °C
Type of current
DC
Type of protection
IP20
UV resistance acc. IEC 60068-2-5
Yes
Width
12.00 mm
Wire preparation length, input side
5.00 mm
Wire preparation length, output side
5.00 mm
