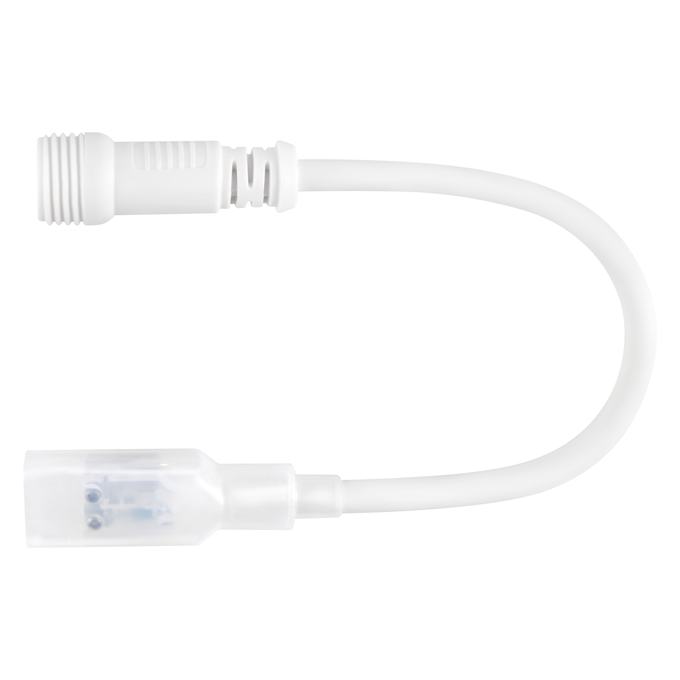

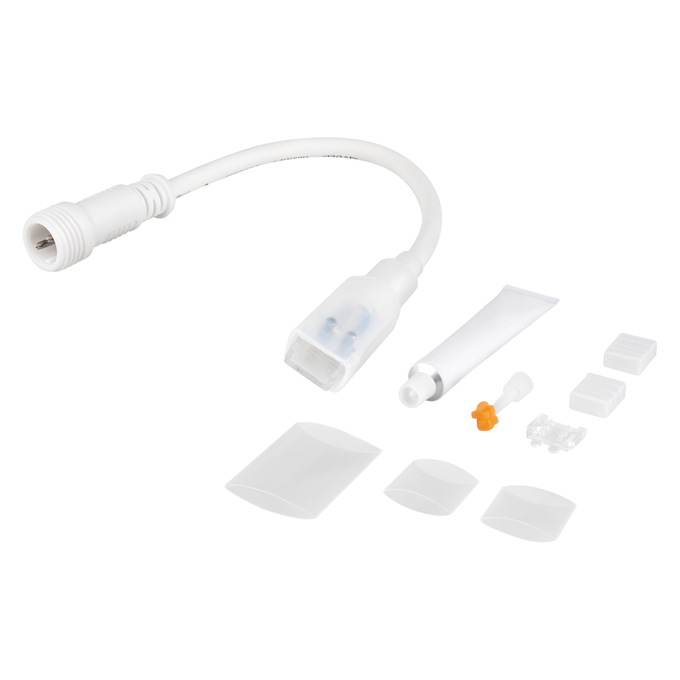

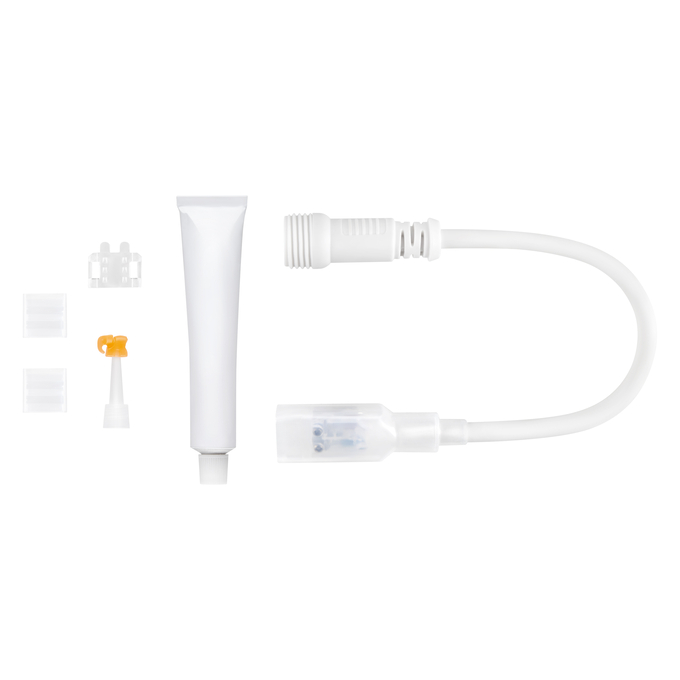

LS AY AC-CD P2 200 IP66
4099854875571
Product benefits
- Easy installation of connector, no manual wiring required
- Simple and quick installation thanks to twist lock functionality
Areas of application
- General indoor illumination
- General outdoor illumination
Product features
- Safe and professional connector of LED strips via integrated over-current protection (3.15A)
- Suitable for connection with LED driver DR P 500W 220-240V 215V P
- Type of protection: IP66
Ambient temperature range
-20…+45 °C
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
GTIN
4099854875571
Height
13.2 mm
Length
300.0 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
0…93 %
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
56.00 g
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+45 °C
Type of current
DC
Width
20.0 mm
