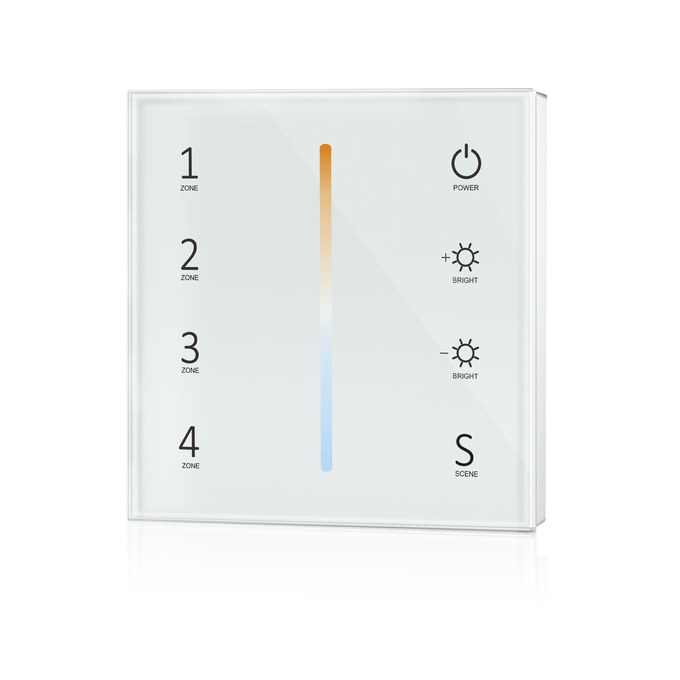

LC RF TOUCH PANEL TW 220-240
4058075435940
Product benefits
- Ultra sensitive high strength glass touch panel with touch color temperature slide in the middle and backlighting.
- Control up to 4 zones
- Dimming of the set light colors
- Easy replaceable for standard light switch
Areas of application
- General illumination
- Architecture lighting
- Dynamic light as an architectural effect in public zones
- Cove lighting
- Hotels
- Offices
- Residential interiors
Product features
- Radio wall control Touch panel for controlling Tunable White LED modules
- Output signal: 2.4 GHz
- Input voltage: 100…240 V
Ambient temperature range
-30…+55 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
GTIN
4058075435940
Height
33.00 mm
Length
86.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Nominal voltage
100…240 V
Nominal wattage
23.00 W
Operating frequency
2.4 GHz
Overheating protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
230.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range at storage
-30…+55 °C
Transmitter range
30 m
Type of current
AC
Type of installation
Mounting/Wall
Type of protection
IP20
Width
86.00 mm
