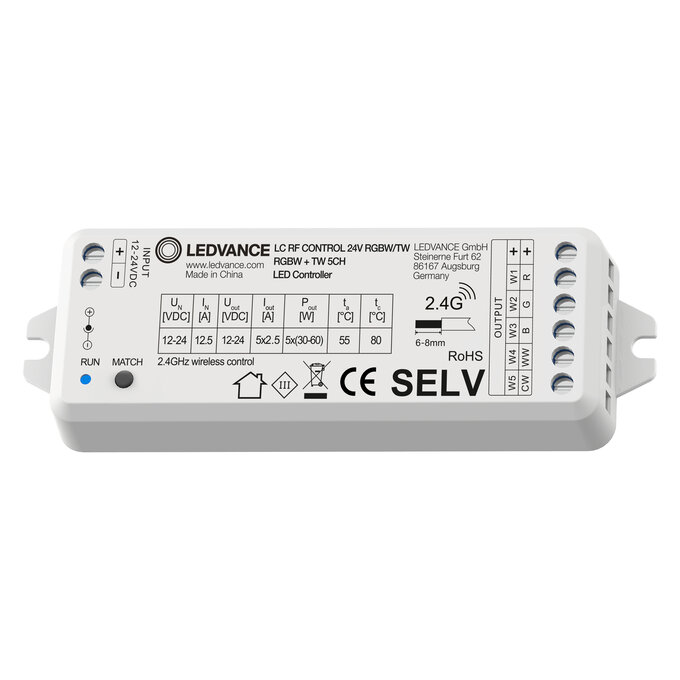

LC RF CONTROL 24V RGBW/TW
4058075435834
Product benefits
- Control options via radio remote control or radio control unit
- Dimmable by pulse width modulation (PWM)
- Simple and quick connection thanks to the MATCH function
- Dimming curve logarithmic in a range of 0-100% with a dimming level of 4096
Areas of application
- General illumination
- Architecture lighting
- Dynamic light as an architectural effect in public zones
- Cove lighting
- Hotels
- Offices
- Residential interiors
Product features
- LED 2.4 GHz master radio receiver
- 5 channels for RGB, RGBW and Tunable White applications
- Supply voltage: 12 V and 24 V
- High performance per channel up to 60 W with 12-24 V power supply
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
Ambient temperature range
-30…+55 °C
Body material
Plastic
Casing material
Fireproof PC
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Dimming range
0…100 %
GTIN
4058075435834
Height
20.00 mm
Length
114.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
5*2.5 A
Nominal output power
300 W
Nominal output voltage
12…24 V
Nominal voltage
12…24 V
Nominal wattage
300.00 W
Number of control outputs
5
Operating frequency
2.4 GHz
Overheating protection
Yes
Overload protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Power loss in stand-by mode
0.4
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
65.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 3003
Temperature range at storage
-30…+55 °C
Transmitter range
30 m
Type of connection, output side
Constant pressure
Type of current
DC
Type of protection
IP20
Width
38.00 mm
