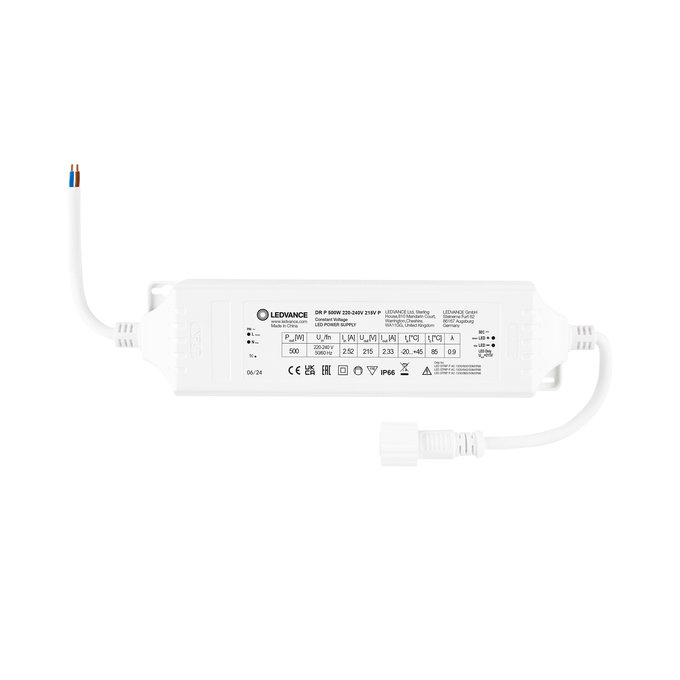

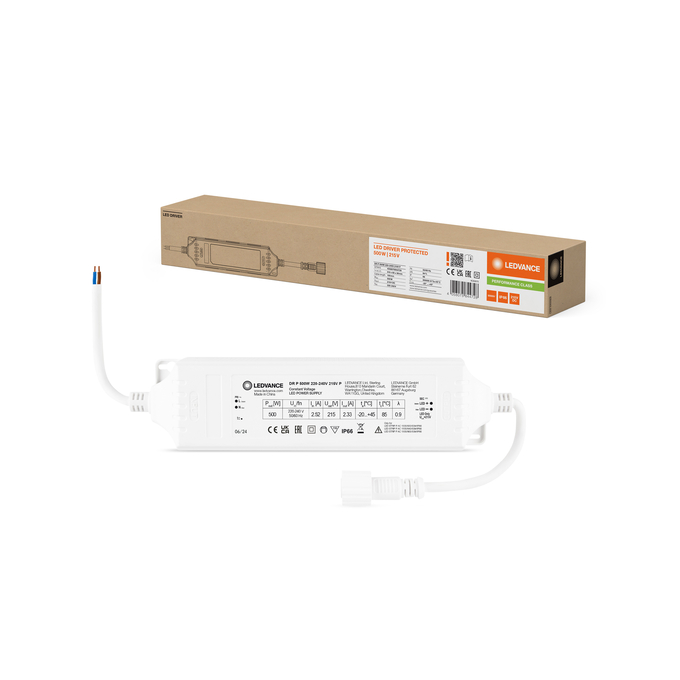

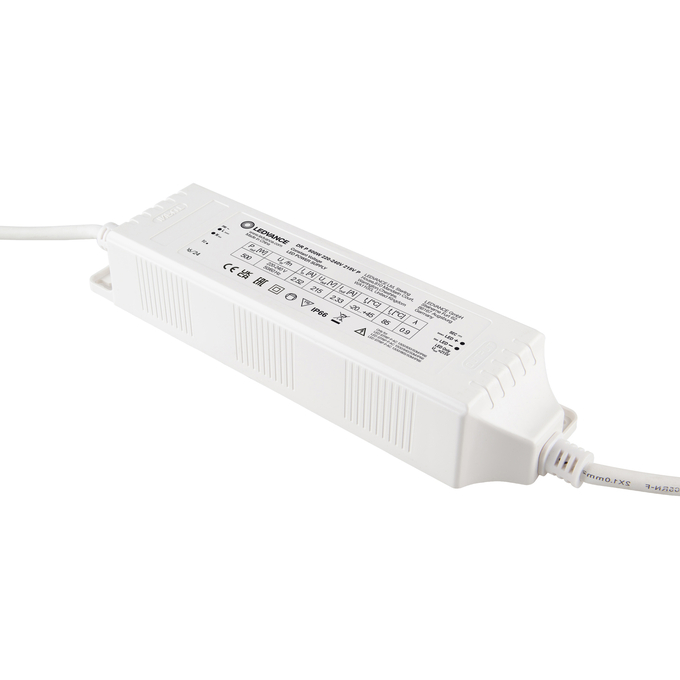

DR P 500W 220-240V 215V P
4058075844728
Product benefits
- Simple and quick connection thanks to twist lock functionality
- Increased LED strip luminous efficiency and luminous output in combination with LED driver
- Low flicker light thanks to LED driver DR P 500W 220-240V 215V P
- Perfectly matched to 230V AC LED flexible strips
- Quick and simple installation
- Good efficiency and reliability
Areas of application
- General indoor illumination
- General outdoor illumination
- Industry and construction site
- Offices, retail outlets and conference rooms
- Architecture lighting
- Decorative illumination
Product features
- Available in 500 W
- Prewired cables for mains supply connection and led strip
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Overtemperature protection, output circuit short protection, output circuit over voltage protection
- Lifetime: up to 50,000 h (at max. Ta temperature)
- Type of protection: IP66
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Do not open enclosure-housing.
- Disconnect mains before installation.
Ambient temperature range
-20…+45 °C
Body material
Plastic
Cable cross-section, input side
1.0 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
Not dimmable
ECG efficiency
94 %
ECG lifetime
50000 h
GTIN
4058075844728
Height
38.00 mm
Input voltage AC
198…264 V
Length
510.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
3
Max. ECG no. on circuit breaker 25 A (B)
8
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
2330 mA
Nominal output current
2330.000 mA
Nominal output power
500 W
Nominal output voltage
215 V
Nominal voltage
220…240 V
Nominal wattage
500.00 W
Number of switching cycles
25000
Output ripple current (100 Hz)
8 %
Overheating protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
0…93 %
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from September 2024
Product weight
900.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Surge capability (L-N)
1 kV
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+45 °C
Type of current
AC/DC
Type of protection
IP66
U-OUT (working voltage)
215 V
Width
60.00 mm
