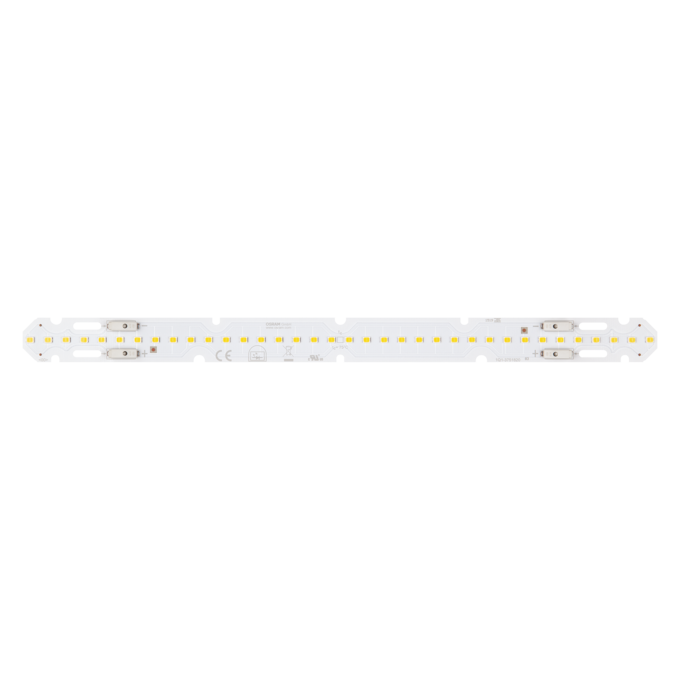

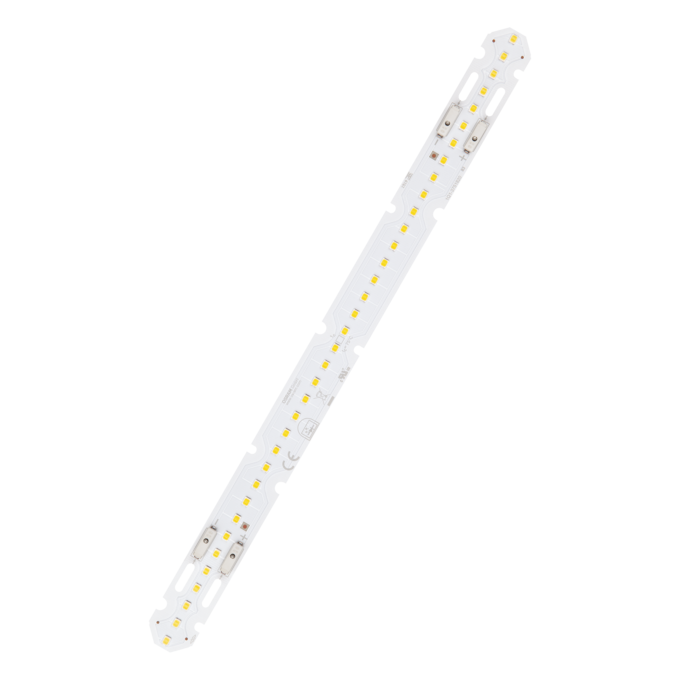

PL-LIN-Z6 1100-840 280X20-LV/HV
4052899606081
Product benefits
- Slim luminaire design by small and flexible form factor
- High homogeneity thanks to small LED pitch
- High voltage (HV) optimized for non-isolated, low voltage (LV) optimized for SELV operation
- Adjustable luminous flux, efficacy and lifetime
- Direct the light where it’s needed while using PrevaLED Linear Optics
Areas of application
- Office
- Industry
Product features
- Module efficacy: up to 206 lm/W

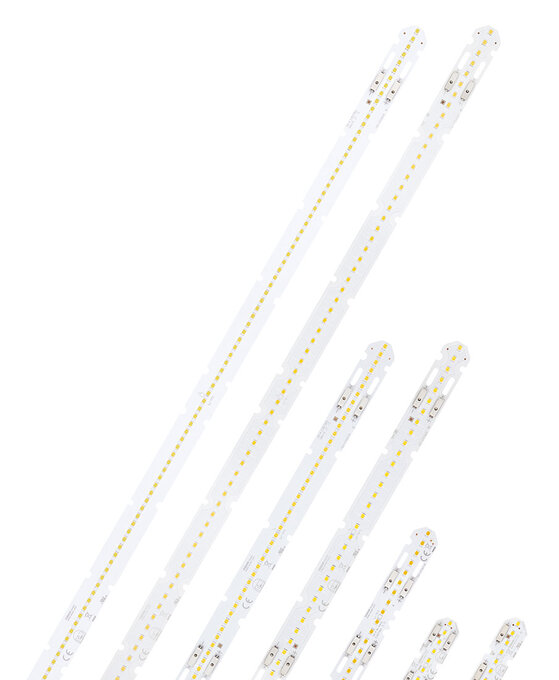

- Available with luminous flux: 245 lm on 62 mm, 275 lm on 70 mm
- Available with luminous flux: 550 lm on 140 mm
- Available with luminous flux: 1,100 lm or 2,000 lm on 280 mm
- Available with luminous flux: 2,200 lm or 4,000 lm on 560 mm
- Available with color temperature: 2,700K, 3,000 K, 4,000 K, 5,000 K or 6,500 K
- High initial color consistency: ≤ 3 SDCM
- Average lifetime (L80 B50): > 70,000 h (temperature at Tc = 50 °C)
- CE marked, ENEC certified; UL listed
Ambient temperature range
-20…+75 °C
Beam angle
120 °
Color rendering index Ra
> 80
Color temperature
4000 K
Construction wattage
5.90 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Energy class of contained light source
C
Energy consumption
5.90 kWh/1000h
Energy efficiency class
C
GTIN
4052899606081
Height
5.00 mm
Length
280.00 mm
Light color (designation)
Neutral White
Light color LED
White
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.80
Luminous efficacy
196 lm/W
Luminous flux
1142 lm
Luminous intensity
367 cd
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nom. useful luminous flux 120° [PICOS]
1100 lm
Nominal current
0.25 A
Nominal lamp life time
50000 h
Nominal voltage
23.6 V
Nominal wattage
5.90 W
Number of LEDs per module
36
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
50 °C
Product recyclability
Mostly recyclable product 1)
Product weight
20.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
120.00 °
Standard deviation of color matching
3 sdcm
Temperature range at storage
-30…85 °C
Temperature range in operation
-20…75 °C
Type of current
DC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
20.00 mm
