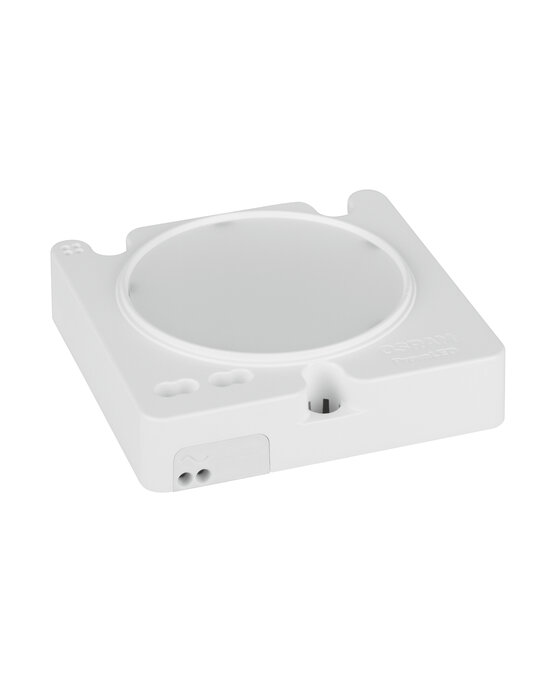

PL-CUBE-AC -G4-2000-830
4062172239493
Product benefits
- Enables low-cost and compact luminaire designs
- Low profile
- Future-proof dimensions for reliable designs
- Near Lambertian light distribution at 110° beam angle for high quality of light
- Protection against overheating due to thermal derating
- 5 year guarantee
Areas of application
- Suitable for diffuser and reflector luminaires
- Hospitality, hotels, restaurants
- Public and commercial buildings
- Offices
- Secondary rooms, garages, storerooms, cellars
Product features
- Mains voltage driven LED engine
- Integrated control gear
- Diameter of light emitting surface: 61 mm
- Common mechanic and photometric interfaces
- Initial color consistency: < 3 SDCM
- Lifetime (L70/B50): 50,000 h (temperature at Tc = 70 °C)
- LED module is reinforced isolated to mounting surface
- Photobiological safety according to IEC/TR 62778, risk group RG1
Ambient temperature range
-20…+50 °C 1)
Beam angle
110 °
Color rendering index Ra
80
Color temperature
3000 K
Construction wattage
19.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Energy class of contained light source
F
Energy consumption
19.50 kWh/1000h
Energy efficiency class
F
Flickering metric (Pst LM)
≤1
GTIN
4062172239493
Height
21.10 mm
Input voltage range
220…240 V
Length
82.80 mm
Light color (designation)
Warm White
Light color LED
Warm White
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
107 lm/W
Luminous flux
1635 lm 1)
Luminous intensity
755 cd
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
85.000 mA
Nominal lamp life time
50000 h
Nominal voltage
230 V
Nominal wattage
19.50 W
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
70 °C
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
60.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated peak intensity
755 cd
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
≤0.9
Temperature range at storage
-20…85 °C
Temperature range in operation
-20…90 °C 2)
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
81.60 mm
