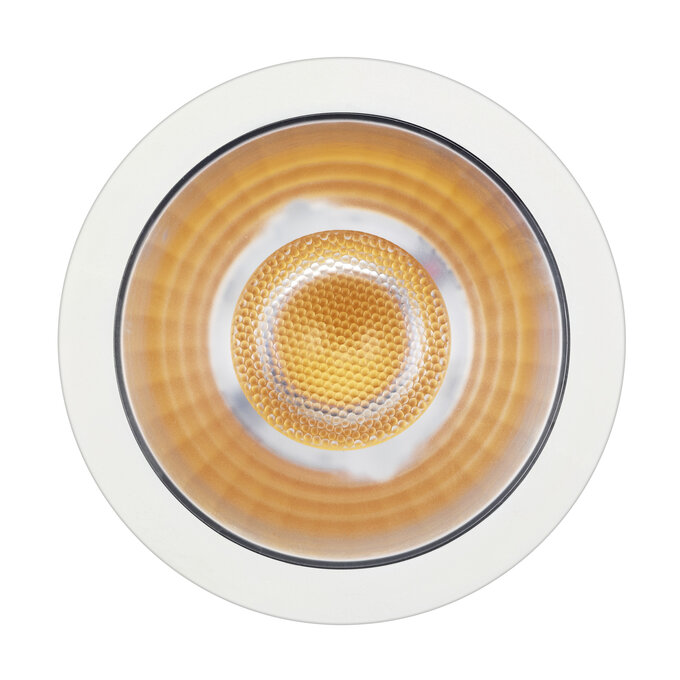

PL-CN50-COB- 1400-840-24D-G2
4052899621251
Product benefits
- Compatible with conventional MR16 lamps
- Precise optical control and free from multi-shadow issue
- Replaceable front cover to maximize optics flexibility and future extension
- Dual mode options in High-Output (HO) and High-Efficacy (HE)
Areas of application
- Retail, shop, restaurant, hospitality
- High-end residential
- Suitable for indoor applications
- Connecting multiple modules in parallel on one LED driver is not permitted
- Connecting multiple modules in series on one LED driver is not recommended
- Do not use in sealed fixtures
- Avoid covering the lens with dust or any object
Product features
- Color consistency < 2 SDCM
- TM30 compliant
- High flux output up to 1500 lm
- Beam angle: 24°, 36°
- Type of protection: IP20
Ambient temperature range
-25…+40 °C
Beam angle
24 °
Cable length
300.000
Color rendering index Ra
80
Color temperature
3900 K
Construction wattage
12.80 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
50,0 mm
Dimmable
No
Energy class of contained light source
F
Energy consumption
12.80 kWh/1000h
Energy efficiency class
F
GTIN
4052899621251
Height
55.00 mm
Input voltage range
33.1…42 V
Length
50.00 mm 1)
Light color (designation)
4000 K
Light color LED
White
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
119 lm/W
Luminous flux
1250 lm 1)
Luminous intensity
4350 cd
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
350.000 mA
Nominal lamp life time
50000 h
Nominal voltage
36.5 V
Nominal wattage
12.80 W
Number of LEDs per module
1
Number of switching cycles
> 15000
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
70 °C
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant tabl
Product weight
90.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
24.00 °
Rated peak intensity
4350 cd
Standard deviation of color matching
2 sdcm
Standards
Acc. to IEC 624
Temperature range at storage
-40…80 °C
Temperature range in operation
-25…90 °C
Type of current
DC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
50.00 mm
