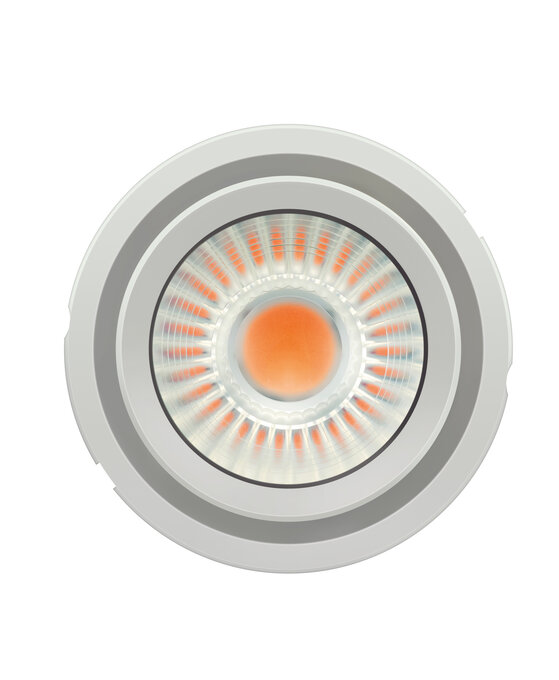

PL-CN111-COB- 4300-830-60D-G2
4052899621572
Product benefits
- Compact form factor compatible with conventional AR111 lamps
- Precise optical control and free from multi-shadow issue
- Dual mode options in High-Output (HO) and High-Efficacy (HE)
Areas of application
- Retail, shop, restaurant, hospitality
- High-end residential
- Suitable for indoor applications
- Connecting multiple modules in parallel on one LED driver is not permitted
- Connecting multiple modules in series on one LED driver is not recommended
- Do not use in sealed fixtures
- Avoid covering the lens with dust or any object
Product features
- Color consistency < 2 SDCM
- TM30 compliant
- High flux output up to 4900 lm
- Beam angle: 15°, 24°, 40°, 60°
- Type of protection: IP20
Ambient temperature range
-25…+40 °C
Beam angle
55 °
Color rendering index Ra
80
Color temperature
3000 K
Construction wattage
36.70 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
110,0 mm
Dimmable
No
Energy class of contained light source
E
Energy efficiency class
E
GTIN
4052899621572
Height
52.00 mm
Input voltage range
31.8…39.7 V
Length
110.00 mm 1)
Light color (designation)
3000 K
Light color LED
White
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
122 lm/W
Luminous flux
3700 lm 1)
Luminous intensity
4845 cd
Maximum temperature at tc test point
100 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
1050.000 mA
Nominal voltage
35 V
Nominal wattage
36.70 W
Number of LEDs per module
1
Number of switching cycles
> 15000
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
80 °C
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant tabl
Product weight
385.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
60.00 °
Rated peak intensity
4845 cd
Standard deviation of color matching
2 sdcm
Standards
Acc. to IEC 624
Temperature range at storage
-40…80 °C
Temperature range in operation
-25…100 °C
Type of current
DC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
110.00 mm
