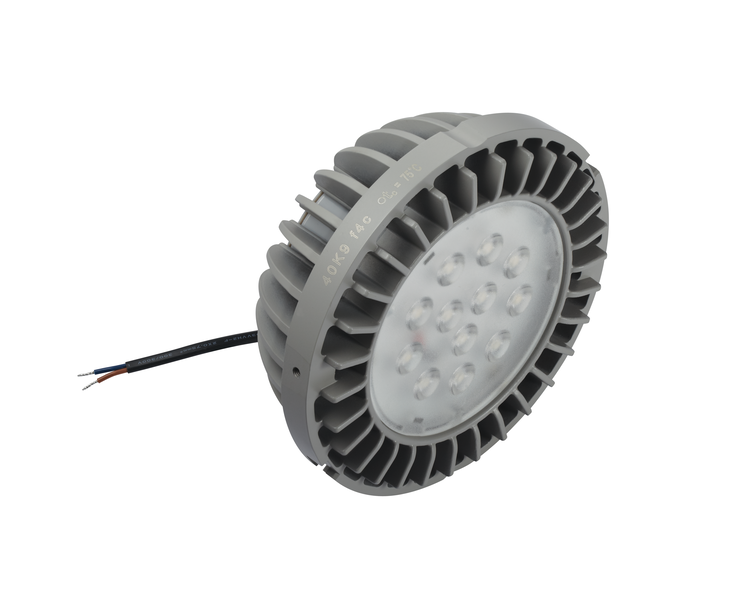

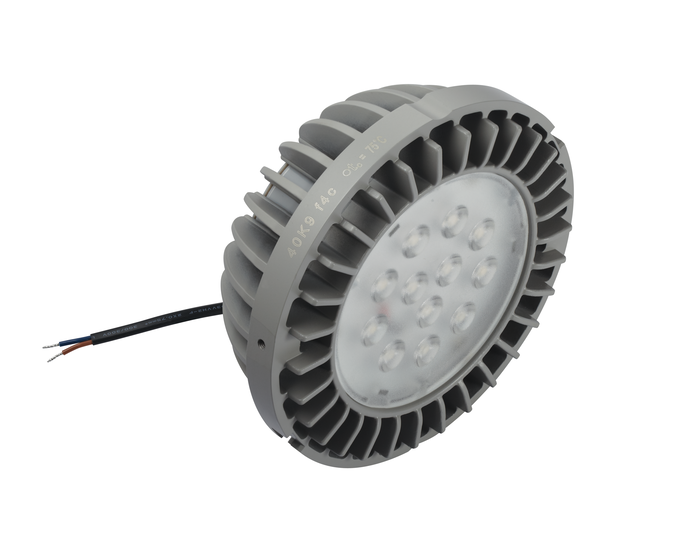

PL-CN 111AC-1200-830 40 G1
4052899165618
Product benefits
- Easy and quick design-in for luminaire manufacturers
- Turn-key solution for projects
- 5 year guarantee
Areas of application
- LED replacement for high intensity discharge lamps up to 35 W
- Shop lighting
- Shopping centers
- Exhibition halls
- Museums
- Suitable for indoor applications
Product features
- Integrated driver, heat sink and lens optics
- Fits into most existing traditional R111 luminaires
- Available with 24° or 40° beam angle
- Versions with different luminous flux and different color temperatures available
- Lifetime (L70/B50): 35,000 h (temperature at Tc = 68 °C)
- Max. working voltage: 60 V (to be operated only on SELV LED control gear)
References / Links
- For more information on the multi-level guarantee and the terms and conditions of the guarantee visit
Ambient temperature range
-40…80 °C
Beam angle
40 °
Cable length
500.000
Color rendering index Ra
83
Color temperature
3100 K
Construction wattage
15.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
110.7 mm
Dimmable
No
Energy class of contained light source
F
Energy consumption
16.00 kWh/1000h
Energy efficiency class
F
Flickering metric (Pst LM)
≤1
GTIN
4052899165618
Height
50.00 mm
Input voltage range
220…240 V
Light color (designation)
Warm White
Light color LED
White
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Luminous efficacy
81 lm/W
Luminous flux
1100 lm 1)
Luminous intensity
2400 cd
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nom. useful luminous flux 120° [PICOS]
1201 lm
Nominal current
75.000 mA
Nominal lamp life time
35000 h
Nominal voltage
230 V
Nominal wattage
15.50 W
Number of LEDs per module
12
Number of switching cycles
> 100000
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
68 °C
Power factor λ
≥ 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
For current photometric data and important safety, installation and application information, see www.osram.com/led-system
Product weight
340.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Rated beam angle (half peak value)
40.00 °
Rated peak intensity
2400 cd
Standard deviation of color matching
3 sdcm
Standards
Acc. to EN 550
Stroboscope effect metric (SVM)
≤0.9
Temperature range in operation
-40…80 °C
Total useful luminous flux [PICOS]
1250 lm
Type of current
AC
Type of protection
IP20
