KIT-CN111-COB 4300-830-40D-G1
4052899990845
Product benefits

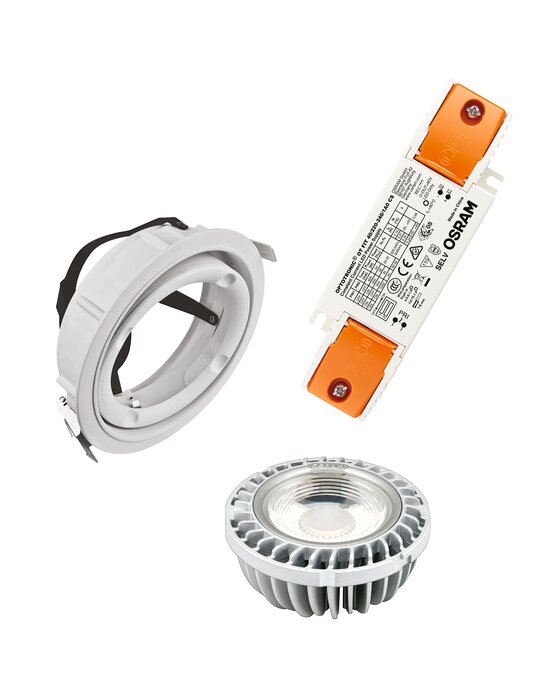

- Supplied with heat sink, lens optics and ECG
- Easy to install
- 7 year guarantee
Areas of application
- Complete solution for demanding general illumination and spotlight applications
- LED replacement for halogen and HCI reflector lamps
- Hospitality, hotels, restaurants
- Shop lighting
- Museums, galleries
Product features
- Professional LED solution ready to install
- Versions with high color rendering and high luminous flux available
- Cardanic, matt white installation ring
References / Links
- For more information on the multi-level guarantee and the terms and conditions of the guarantee visit
Ambient temperature range
-20…+40 °C
Beam angle
40 °
Claimed equiv. conventional lamp power
100 W
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
154 mm
Dimmable
No
GTIN
4052899990845
Height
86.0 mm
Input voltage range
220…240 V
Length
154 mm
Light color (designation)
Warm White
Light color LED
White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
107 lm/W
Luminous flux
4340 lm
Luminous intensity
8370 cd
Maximum temperature at tc test point
100 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
1.05 A
Nominal voltage
220…240 V
Nominal wattage
40.7 W
Number of LEDs per module
1
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
75 °C
Product recyclability
Mostly recyclable product 1)
Product remark
Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant tabl
Product weight
895.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Standard deviation of color matching
≤3 sdcm
Standards
CE
Temperature range at storage
-40…80 °C
Type of current
AC
Type of protection
IP20
Width
154 mm
