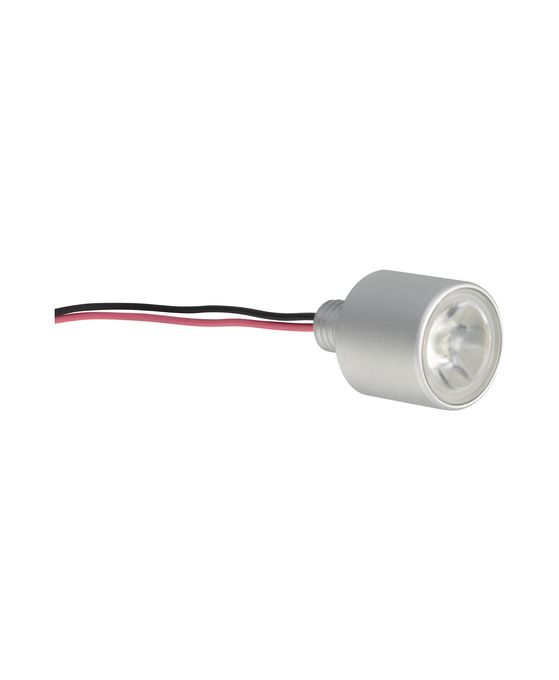

DE1 -W4F-830-G3
4052899474741
Product benefits
- Metal package for optimum heat removal
- Integrated M10x1.5 thread for simple installation
- No additional heat sink required
- Narrow beam angle for use as a spot source
- Perfect centering thanks to flange on the floor of the casing (diameter 12 mm)
- Low maintenance costs thanks to a lifetime of up to 70,000 h
- 5 year guarantee
Areas of application
- For accent, orientation or route lighting
- Shelf and furniture lighting
- Suitable for outdoor use
Product features
- Type of protection IP65 according to DIN EN 60529
- The modules can only be connected in series
- Two-core connecting cable (500 mm)
- Dimmable
References / Links
- For more information on the multi-level guarantee and the terms and conditions of the guarantee visit
Ambient temperature range
-25…+55 °C
Beam angle
15 °
Cable length
500.000
Color rendering index Ra
80
Color temperature
3000 K
Construction wattage
1.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
23.0 mm
Dimmable
Yes
Energy class of contained light source
F
Energy consumption
2.00 kWh/1000h
Energy efficiency class
F
GTIN
4052899474741
Height
23.00 mm
Input voltage range
2.7…3.3 V
Length
20.0 mm
Light color (designation)
Warm White
Light color LED
White
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Luminous efficacy
100 lm/W
Luminous flux
95 lm
Luminous intensity
800 cd
Maximum temperature at tc test point
-25…90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
0.35 A
Nominal lamp life time
70000 h
Nominal voltage
2.9 V
Nominal wattage
1 W
Number of LEDs per module
1
Number of switching cycles
35000
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant tabl
Product weight
24.00 g
Rated beam angle (half peak value)
15.00 °
Rated peak intensity
800 cd
Standard deviation of color matching
4 sdcm
Temperature range at storage
-25…85 °C
Temperature range in operation
-25…90 °C 1)
Total useful luminous flux [PICOS]
100 lm
Type of current
DC
Type of protection
IP65
Warm-up time (60 %)
‹ 2.00 s
Width
23.00 mm
