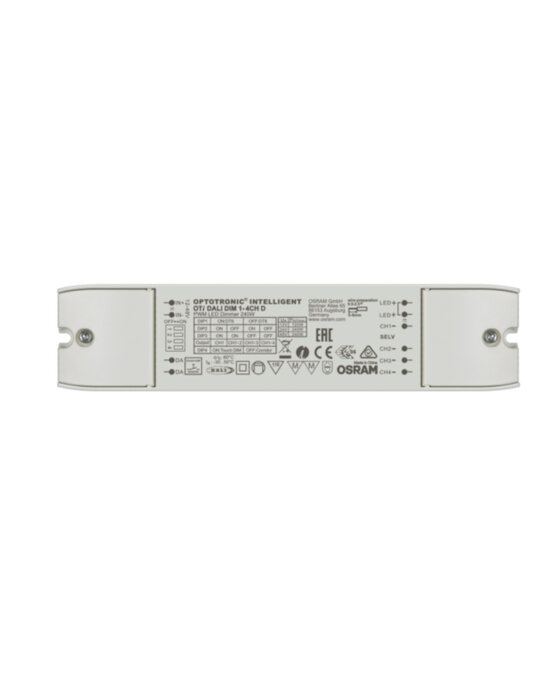

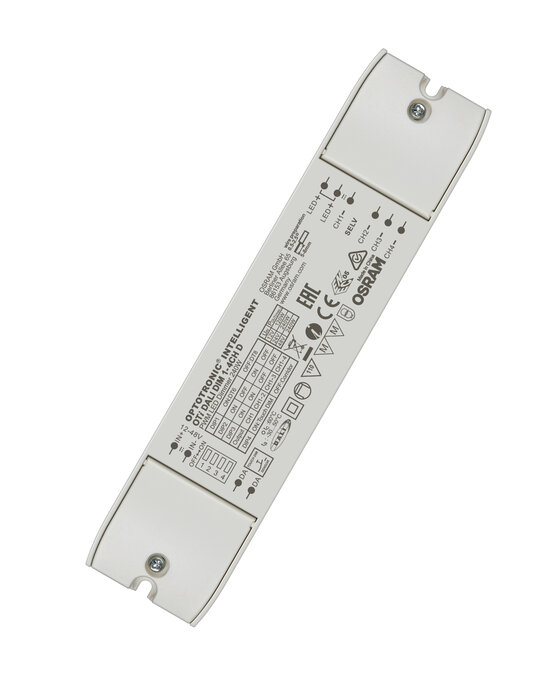

OTi DALI DIM 1-4CH D
4062172166010
Product benefits
- Very precise dimming thanks to digital light control
Areas of application
- Suitable for indoor installations
- Separate installation (ceiling mounting)
Product features
- Intelligent digital dimmer (DALI) with constant output voltage
- Dimming range: 0…100 %
- Device fits also for special applications where dimming below 1 % is required
Ambient temperature range
-20…+50 °C
Body material
Plastic
Cable cross-section, input side
0,5…2,5 mm²
Cable cross-section, output side
0,5…2,5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
0.1…100 %
ECG lifetime
50000 h
Galvanic isolation
SELV
GTIN
4062172166010
Height
20.00 mm
Length
181.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
60 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
175.5 mm
No-load proof
Yes
Nominal output power
240 W
Nominal output voltage
12…48 V
Nominal voltage
12…48 V
Nominal wattage
120.00 W
Overheating protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Product recyclability
Mostly recyclable product 1)
Product weight
86.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EC 61347-2-
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw terminal
Type of protection
IP20
Width
42.00 mm
