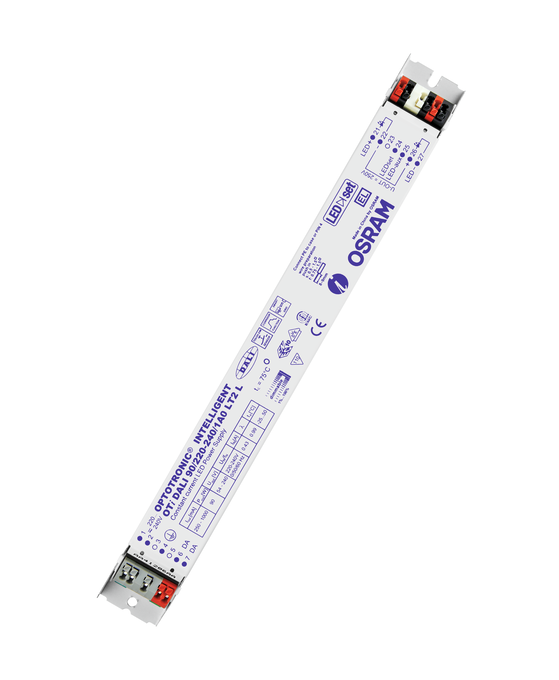

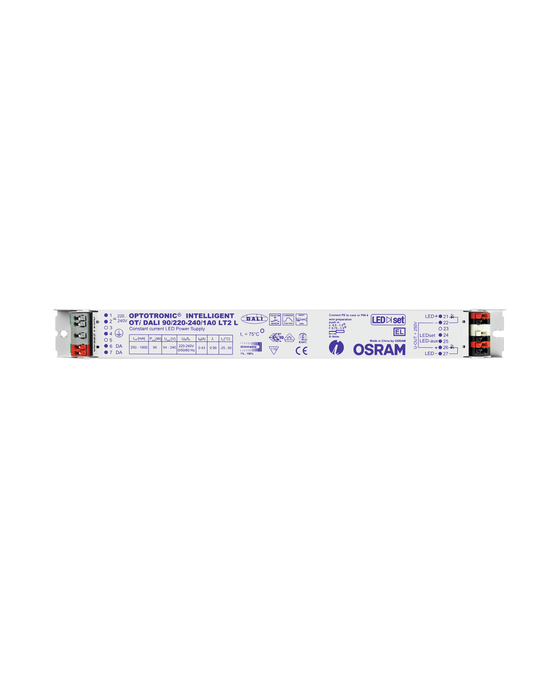

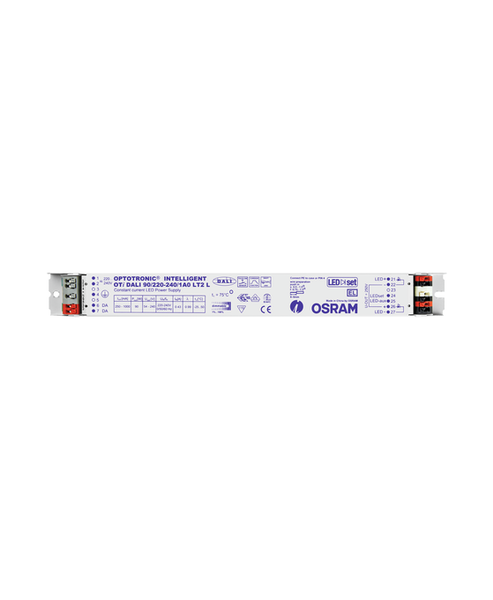

OTi DALI 90/220…240/1A0 LT2 L
4052899494268
Product benefits
- Fully programmable via software (DALI Interface)
- Flexible current setting (LEDset2)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
- High quality of light thanks to <1% output ripple current
- Very high efficiency
- Very low standby power consumption: < 0.15 W *
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection Versatile scope of application due to OSRAM DALI Technology:
- Easy to use in corridors and restrooms because of three-level Corridor function
- Touch DIM application: easy to control via pushbutton or sensor
- Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
- Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
- Feedback of power consumption and operating hours (Fit for SMART GRID)
- Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
- Luminaire information for easy maintenance
- Linear lighting for office, education, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Versatile DALI window driver up to 80 W due to flexible output characteristic
- Supply voltage: 220…240 V
- Available with output current range: up to 2,100 mA
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
- DALI-2 certified (Part -101,-102 and -207)
Areas of application
Product features
Ambient temperature range
-25…+50 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm² 1)
Cable cross-section, output side
0.5…1.5 mm² 1)
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Device power loss
9 W 8)
Dimmable
Yes
Dimming interface
DALI
Dimming range
1…100 % 1)
ECG efficiency
≤94 % 7)
ECG lifetime
50000
Encapsulated
No
Flickering metric (Pst LM)
≤1
Galvanic isolation
Non isolated
GTIN
4052899494268
Height
21.00 mm
Input voltage AC
198…264 V 2)
Input voltage DC
176…276 V
Inrush current
25 A 4)
Length
280.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
15
Max. ECG no. on circuit breaker 16 A (B)
24
Max. ECG no. on circuit breaker 25 A (B)
29
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
270,0 mm
Networked standby power for CLS
≤0.30 W
No-load proof
Yes
Nominal current
0.43 A
Nominal output current
250…1000 mA 3)
Nominal output power
13.5…90 W
Nominal output voltage
54…240 V 1)
Nominal voltage
220…240 V
Nominal wattage
90.00 W
Output current tolerance
±3 % 5)
Output ripple current (100 Hz)
< 1 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
> 0.95 6)
Power loss in stand-by mode
< 0.25 W
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
205.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Stroboscope effect metric (SVM)
≤0.4
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-25…85 °C
Total harmonic distortion
< 10 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
< 250 V
Width
30.00 mm
Wire preparation length, input side
8.5…9.5 mm
Wire preparation length, output side
8.5…9.5 mm
