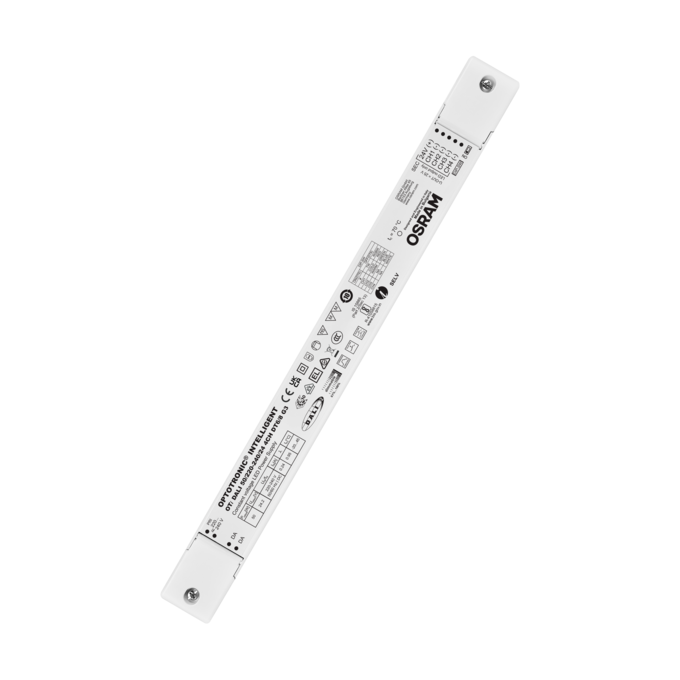

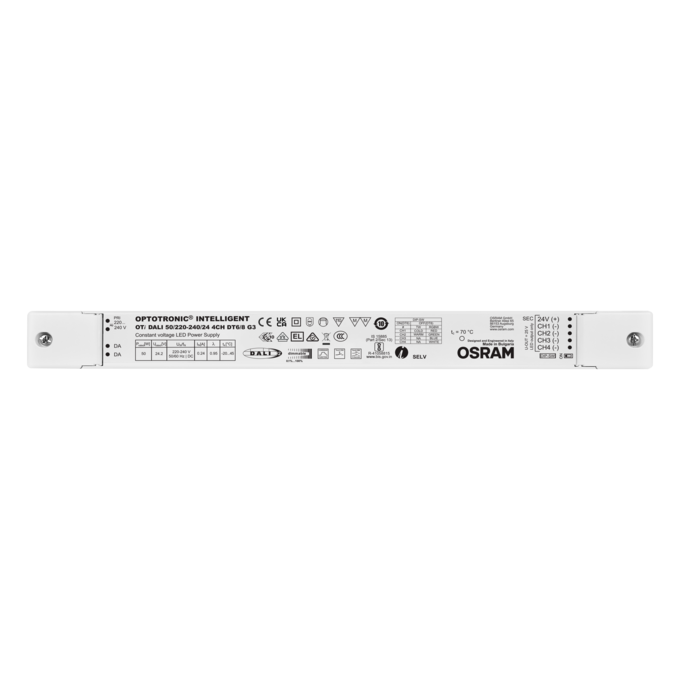

OTi DALI 50/220-240/ 24 4CH DT6/8 G3
4062172274289
Product benefits
- Intelligent power matching thanks to Smart power supply
- Slim form factor for mounting on the cove or in linear luminaires
- No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Available as single-channel or multi-channel with DT6 and DT8 in one device
- DALI message detection "LED Module failure"
- IP rating: IP20
Areas of application
- Cove lighting, wall washer, corridor, handrail, luminous ceilings
- Suitable for use in luminaires of protection class I and II
Product features
- Dimmable via Touch DIM
- LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
- Dimming range: 0.1…100 %
- Line frequency: 0 Hz | 50 Hz | 60 Hz
Equipment / Accessories
- Suitable for 24 V LED modules
Ambient temperature range
-20…+45 °C
Approval marks – approval
B
Body material
Plastic
Cable cross-section, input side
0,5…2,5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
4 W
Dimmable
Yes
Dimming interface
DALI
Dimming range
0…100 %
ECG efficiency
92 % 2)
ECG lifetime
50000 h
Flickering metric (Pst LM)
≤1
Galvanic isolation
SELV
GTIN
4062172274289
Height
22.00 mm
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Input voltage range
220…240 V
Inrush current
41 A
Length
346 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
22
Max. ECG no. on circuit breaker 16 A (B)
36
Max. ECG no. on circuit breaker 25 A (B)
33
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
300.6 mm
No-load proof
Yes
Nominal output power
50 W
Nominal output voltage
24 V 1)
Nominal voltage
220…240 V
Nominal wattage
50.00 W
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
> 0.95
Product recyclability
Mostly recyclable product 1)
Product weight
191.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 550
Stroboscope effect metric (SVM)
≤0.4
Suitable for fixtures with prot. class
I,II
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 5 %
Type of connection, output side
Screw terminal
Type of protection
IP20
U-OUT (working voltage)
24.2 V
Width
32.00 mm
Wire preparation length, input side
6,0 mm
Wire preparation length, output side
5,0 mm
